Description

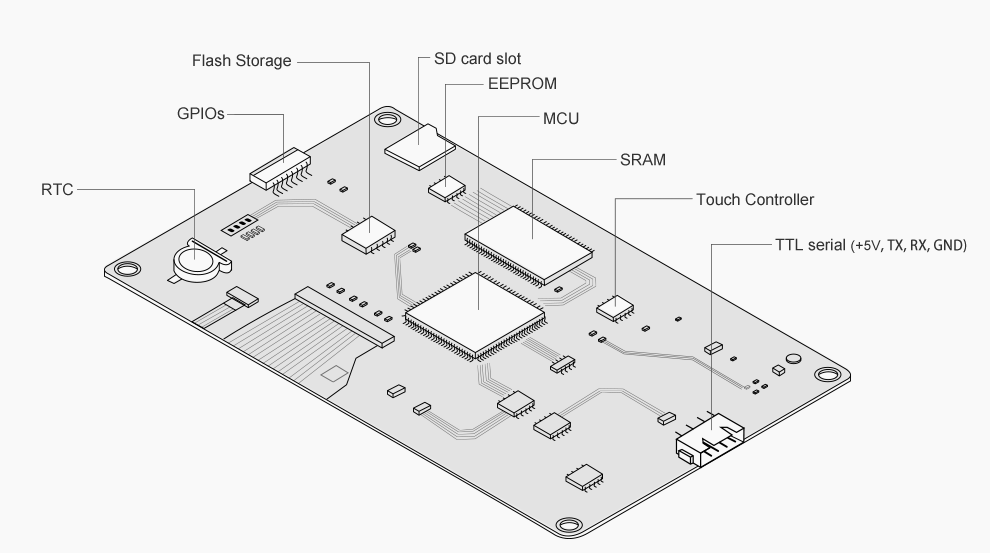

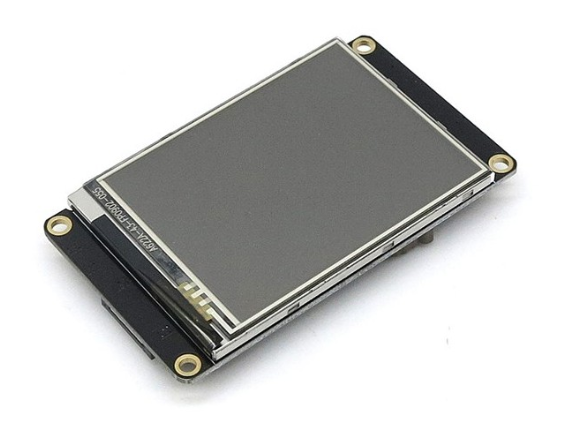

The Nextion enhanced HMI displays offers a resistive touch HMI. The HMI has general purpose inputs and outputs onboard and supports 65K colors. It has a built in RTC and 32MB flash memory to store your application on.
Specifications
- Size: 3.5"
- Resolution: 480*320
- Touch Panel: Resistive Touch
- Color: 65536
- Flash: 16MB
- RAM: 3584Bytes
- MCU: 48 Mhz
- EEPROM: -
- GPIOs: -
- RTC: -
- Enclosed: No
- SD Socket: Yes (FAT32 Format, Max 32GB)
