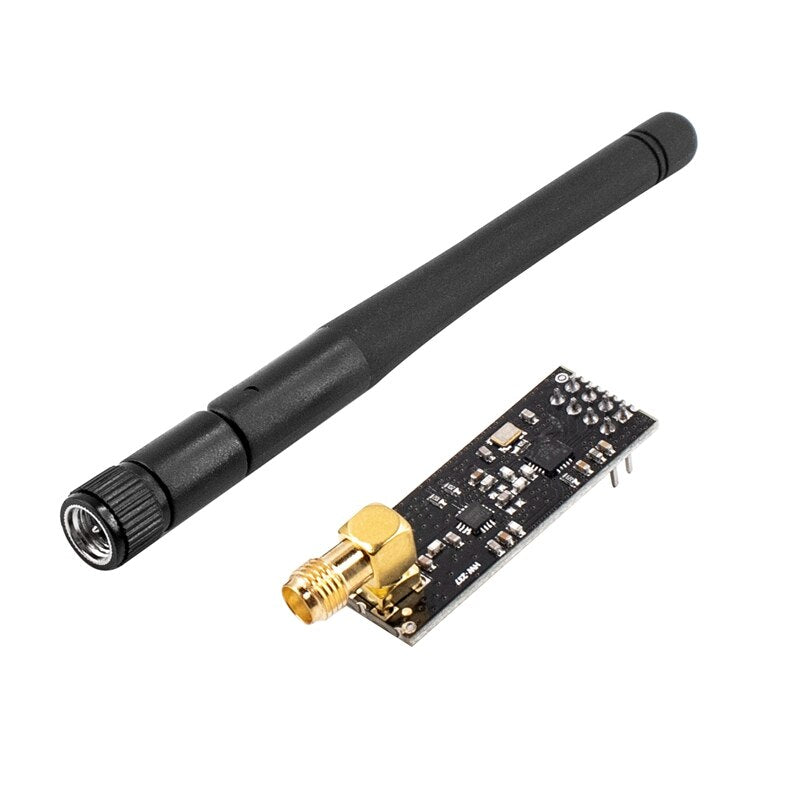

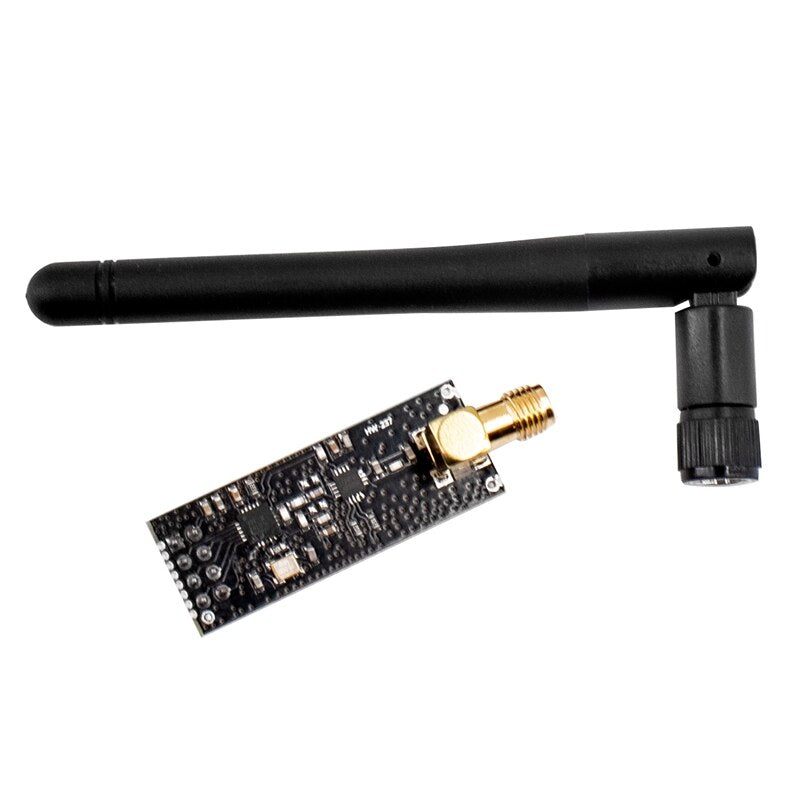

Description
The NRF24L01 operates in the ISM 2.4Ghz license free band. It can be used for point to point or point to multipoint applications. With power amplifier and low noise amplifier onboard, distance has been greatly increased allowing communication as far as 1000m depending on the terrain.
Specifications
- Voltage: 3-3.6V
- Max output power: +20 dBm
- Working current in transmit mode: 115mA
- Working current in receiver mode: 45mA
- Current in sleep mode: 4.2uA
- Operating temperature: -20 to 70 degrees
- Operating Frequency: 2400-2524Mhz's
- Receiver sensitivity:
- -92dBm in 2Mbps mode,
- -95dBm in 1Mbps mode,
- -104dBm in 250kbps mode
- Power Amplifier (PA) gain: 20dB
- Low Noise Amplifier (LNA) gain: 10dB
- Low Noise Amplifier (LNA) SNR gain: 2.6dB
- Antenna gain: 2dBI
