Description

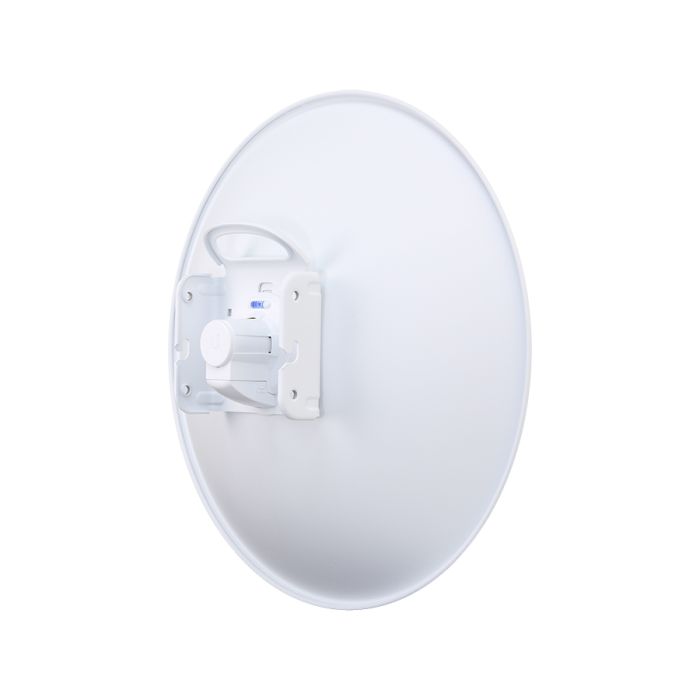

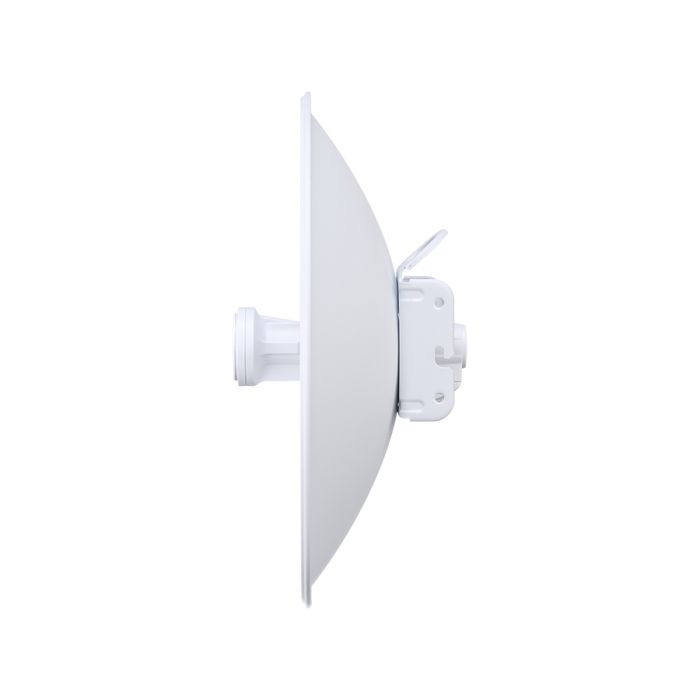

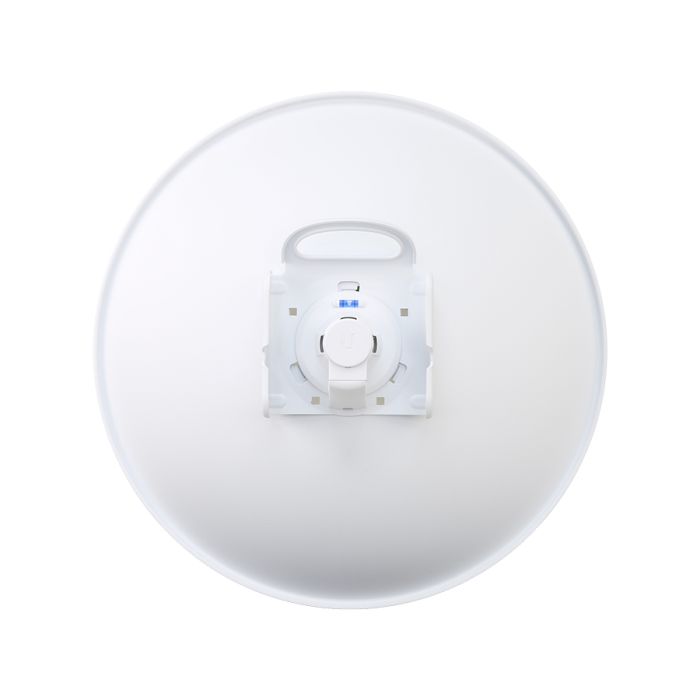

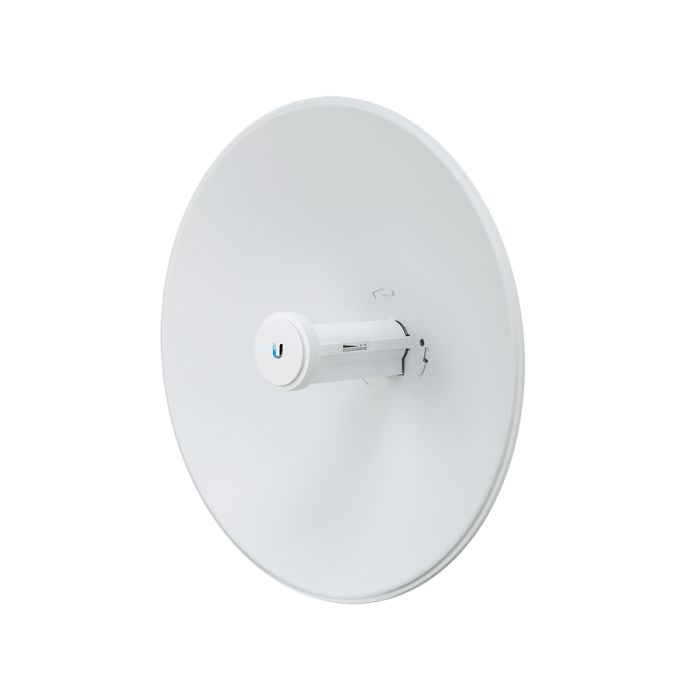

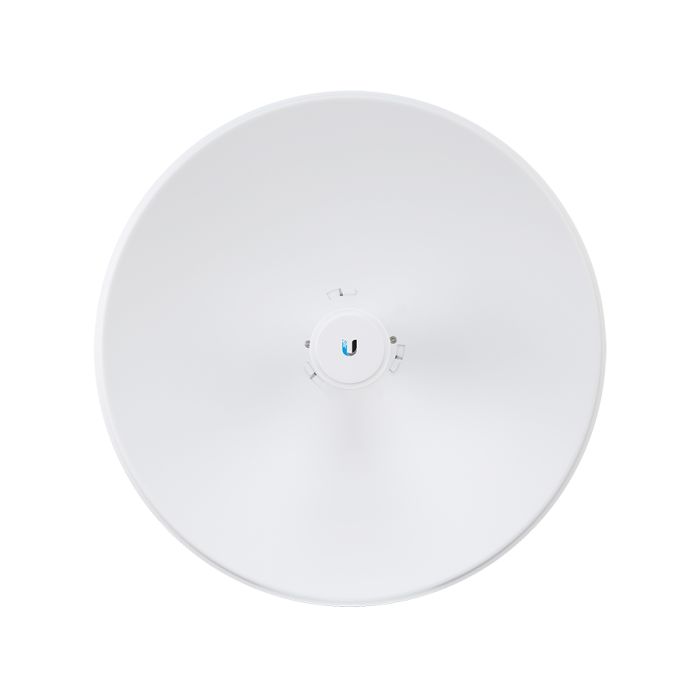

The UBIQUITI airMAX PowerBeam 5AC Gen2 is a high-gain 5 GHz outdoor radio for directional point-to-point links and customer-premises connections. Its integrated 25 dBi dish concentrates the wireless signal, making it suitable for longer links where clear line of sight is available.
A dedicated 2.4 GHz management radio supports setup and alignment, while the Gigabit Ethernet port carries network traffic and 24 V passive PoE power. A complete point-to-point link normally requires a compatible radio at the other end and configuration that complies with local radio regulations.
Why you’ll love it
- High-gain directional antenna: The integrated 25 dBi dish is designed for focused outdoor wireless links.
- Convenient management: A separate 2.4 GHz radio supports setup from a nearby mobile device.
- Gigabit connection: One GbE port connects the radio to the local network.
- PoE adapter included: The supplied 24 V passive PoE adapter simplifies power delivery at the installation point.
Technical specifications
- Model: PBE-5AC-Gen2
- Radio band: 5 GHz with separate 2.4 GHz management radio
- Antenna gain: 25 dBi
- Networking: 1 × Gigabit Ethernet RJ45 port
- Power: 24 V passive PoE; 24 V, 0.5 A Gigabit PoE adapter included
- Supported voltage: 20–27 V DC
- Maximum power consumption: 8.5 W
- Dimensions: 420 × 420 × 230 mm
- Operating temperature: -40 to 70 °C

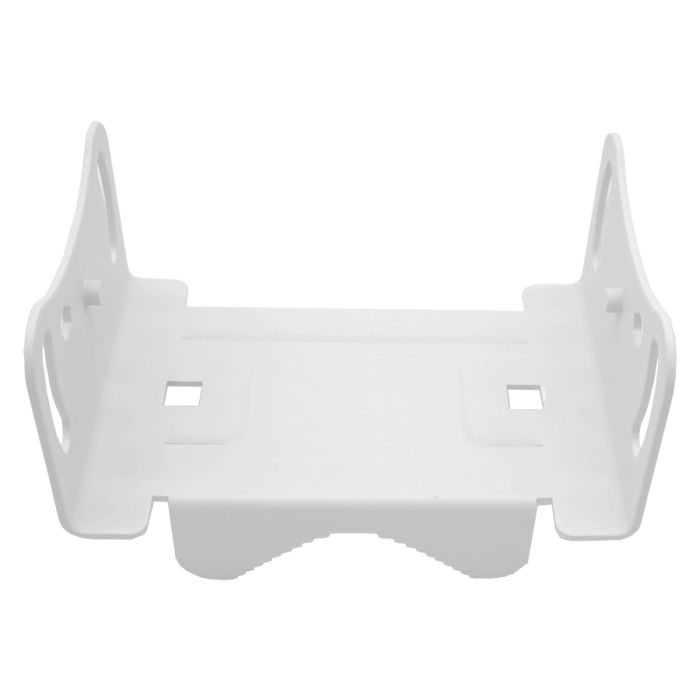

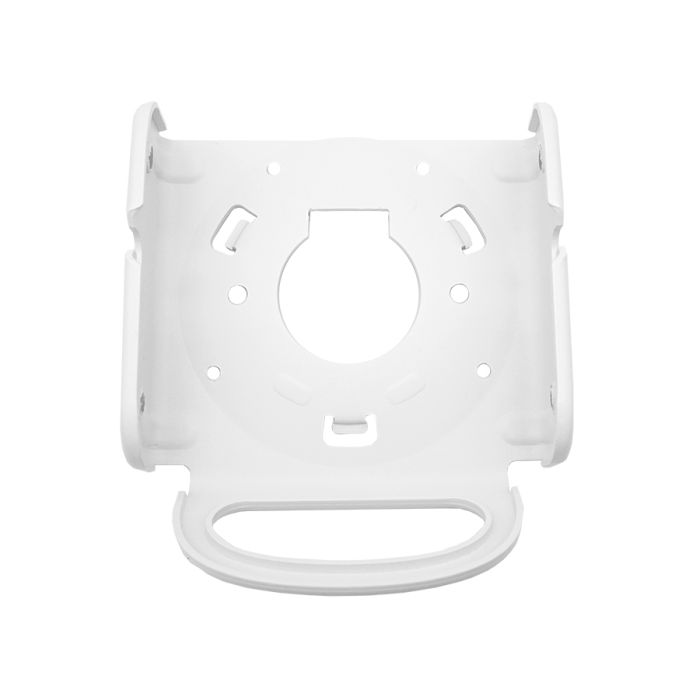

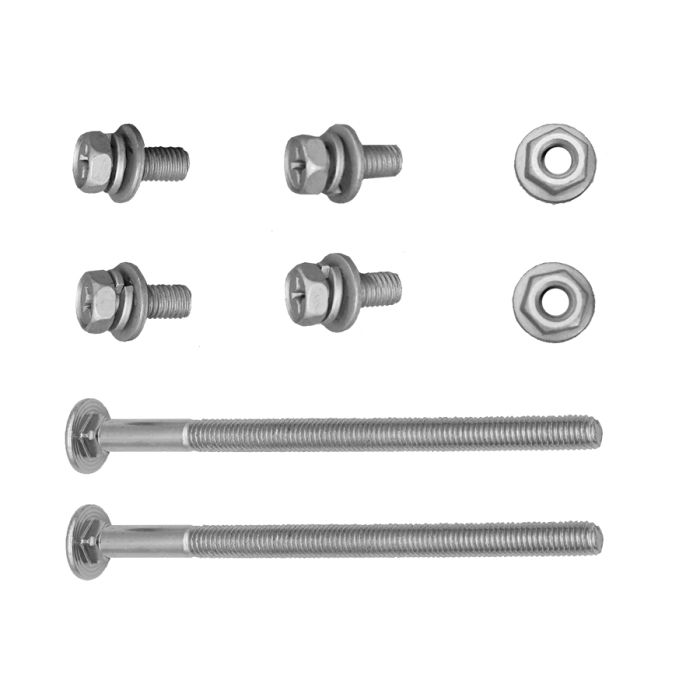

- Mounting: Pole mounting hardware included
