Description

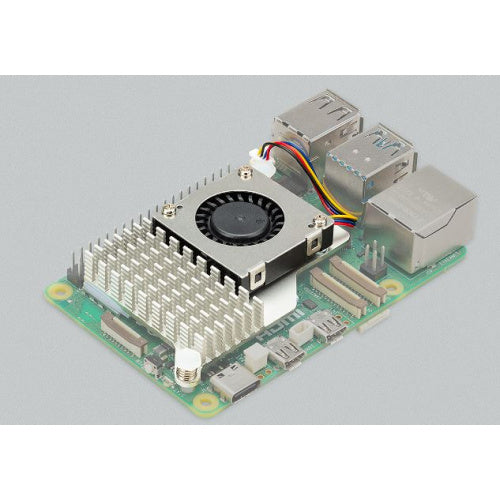

The Active Cooler provides an alternative cooling solution for users who wish to use their Raspberry Pi 5 under sustained heavy load without a case. It combines a large metal heatsink with a variable-speed blower, again powered and controlled via the fan connector, and attaches to the Raspberry Pi 5 PCB via sprung pins into a pair of mounting holes.
The product includes
- A single-piece anodized aluminium heatsink
- Heatsink-mounted, temperature-controlled fan
- 5V blower fan with max speed of 8000RPM
- Four wires: power, ground, PWM, and tachometer
- Spring-loaded push pins for mounting onto Raspberry Pi 5
- Pre-applied thermal pads for heat transfer
