Description

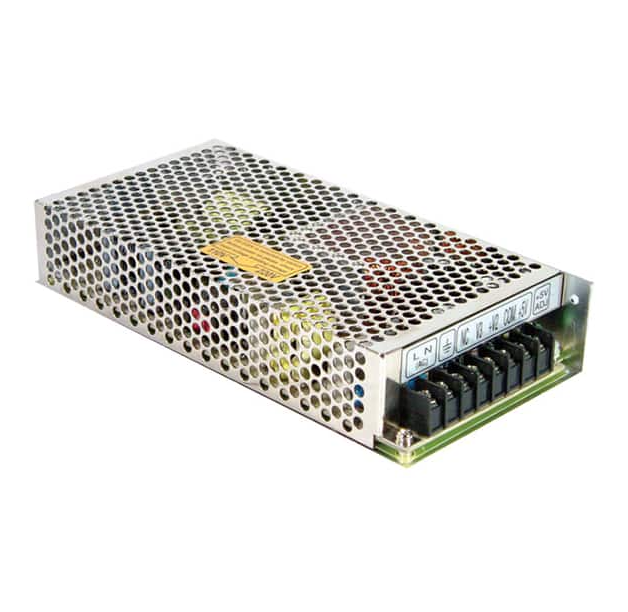

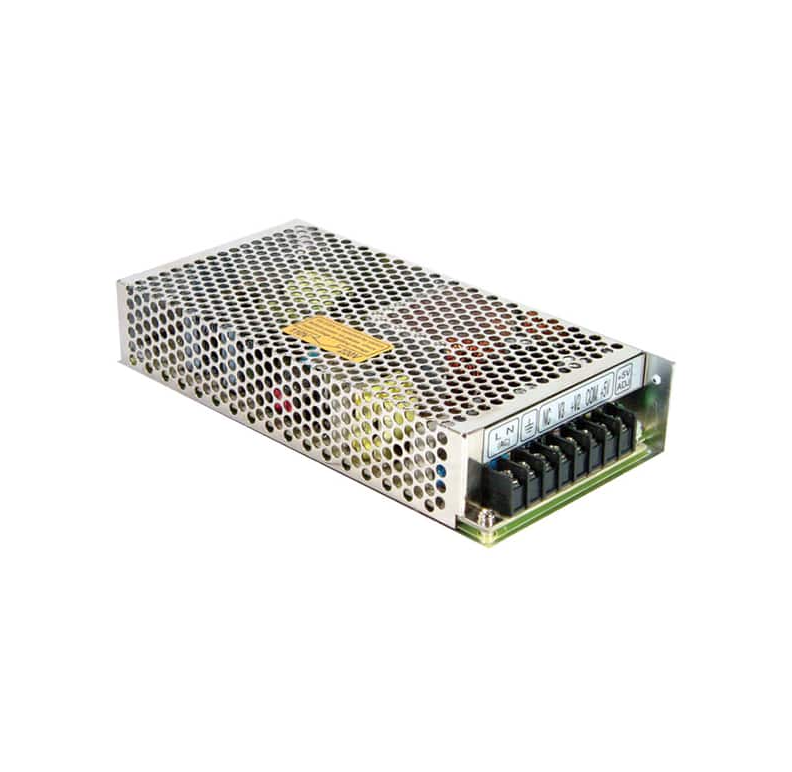

The RQ-125D Multi-Output AC/DC Power Supply delivers reliable performance for applications that need multiple voltage rails in one compact unit. With four outputs (5V, 12V, 24V and –12V), it’s ideal for powering mixed-voltage circuits without the need for multiple adapters. Designed for efficiency and stability, this 124W supply is a dependable choice for electronics projects, industrial controls, and embedded systems. Its robust build and proven reliability make it well-suited for both prototyping and long-term installations.
Specifications
|
Category |
|
|
Series |
|
|
Product Status |
Active |
|
Type |
|
|
Number of Outputs |
4 |
|
Voltage - Input |
88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC |
|
Voltage - Output 1 |
5V |
|
Voltage - Output 2 |
12V |
|
Voltage - Output 3 |
24V |
|
Voltage - Output 4 |
-12V |
|
Voltage - Output 6 |
- |
|
Current - Output 1 |
8 A |
|
Current - Output 2 |
2.5 A |
|
Current - Output 3 |
2 A |
|
Current - Output 4 |
500 mA |
|
Power (Watts) |
|
|
Applications |
|
|
Voltage - Isolation |
3 kV |
|
Efficiency |
82% |
|
Operating Temperature |
-25°C ~ 70°C (With Derating) |
|
Features |
Adjustable Output |
|
Mounting Type |
Chassis Mount |
|
Size / Dimension |
7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) |
|
Approval Agency |
CB, CE, cURus, TUV |
|
Minimum Load Required |
Yes |
|
Base Product Number |
