Description

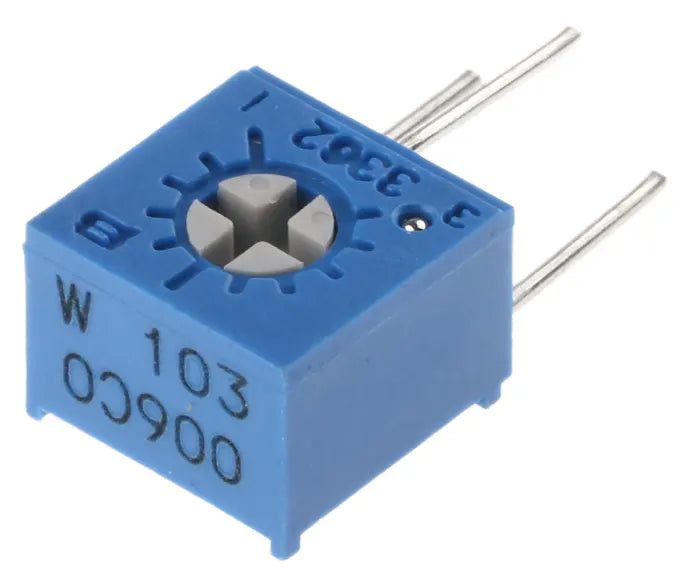

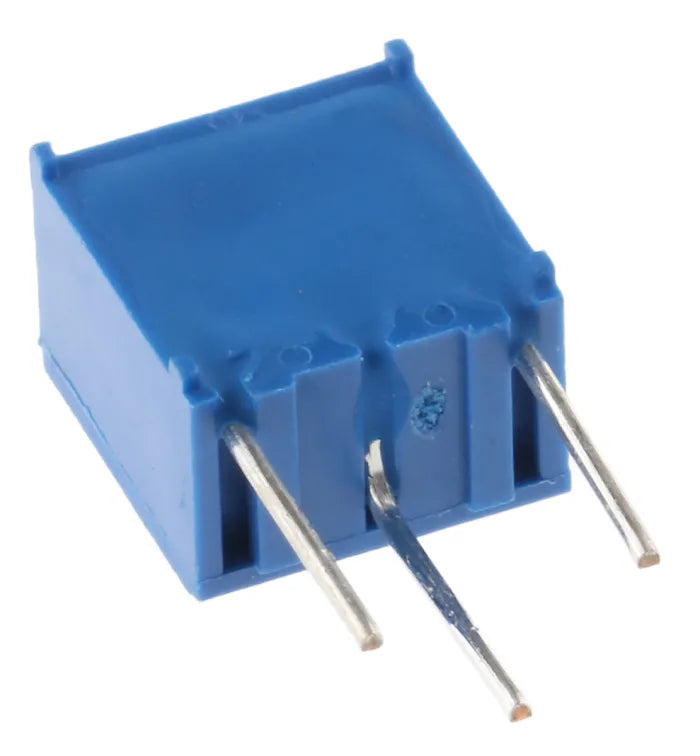

The RS Components 10kΩ Trimmer Potentiometer (Bourns 3362 Series) is a precision variable resistor designed for fine-tuning and calibration in electronic circuits. With a durable through-hole design and side-adjust mechanism, it offers smooth and reliable adjustment of resistance values, making it ideal for use in control systems, instrumentation, and prototyping applications.
Specifications
- Manufacturer: Bourns
- Series: 3362
- Resistance Value: 10kΩ
- Power Rating: 0.5W
- Adjustment Type: Side adjust
- Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Resistor Element Material: Cermet
- Mounting Type: Through-hole
- Rotation: 270° (typical)
- Operating Temperature Range: -55°C to +125°C
- Dimensions (approx.): 7.1mm × 7.1mm × 3.2mm
