Description
Scoop's SPS-8F2F is an unmanaged 8 port Fast Ethernet AI PoE switch with 2x Fast Ethernet uplink ports.
Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 96W and the max budget per port is 36W.
The SPS-8F2F supports 4 working modes:
VLAN (Port Isolation): Enables Port Isolation on Port 1-8.
AI Extend Mode: Transmission distance of ports 1-8 can be increased to up to 250 meters at 10Mbps using Cat6 solid copper cable.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
AI QOS: Priorities network bandwidth based on network usage history & analytics.
Specifications
- Ethernet Ports: 10x 10/100

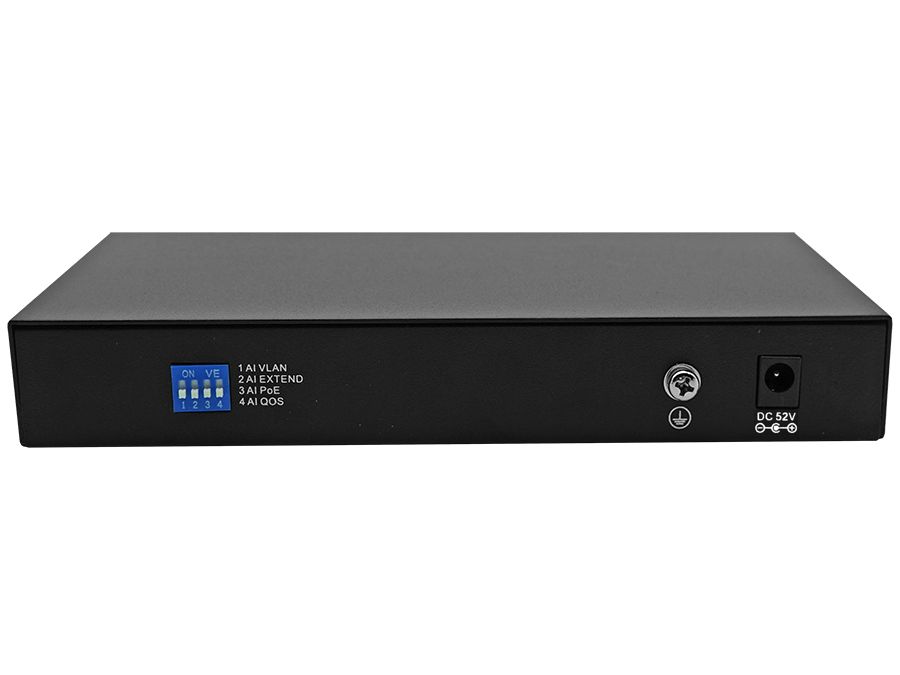

- Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
- Max. Power Consumption: 3W
- Mounting: Desktop
- Operating System: None
- Operating Temperature: 0°C to 40°C
- PoE Input: None
- PoE Output: 802.3af/at PoE on Ports 1~8

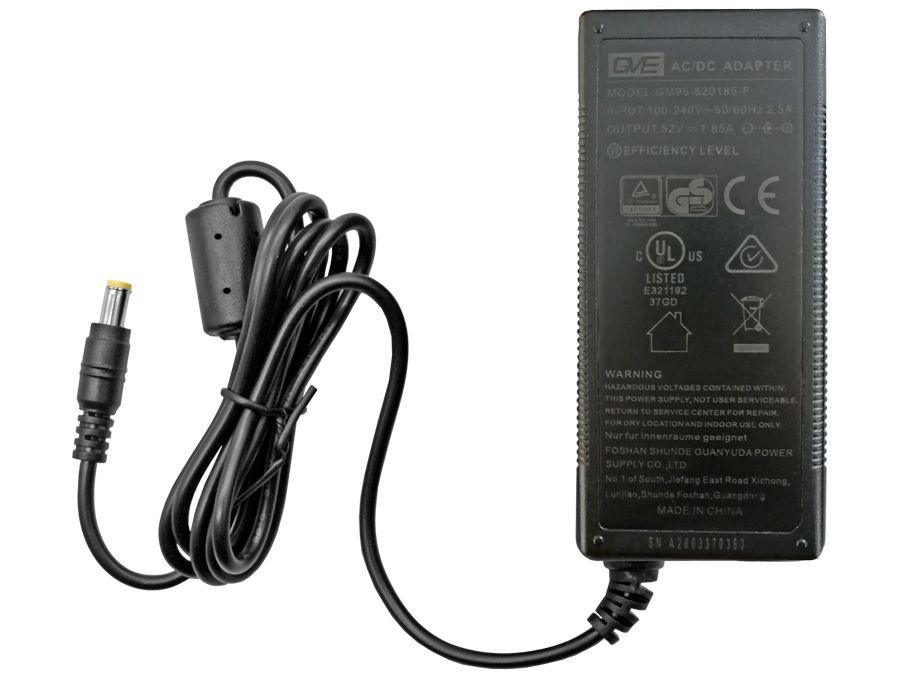

- Power Input: 52V 1.85A Power Supply (Included)
- Serial Interface: None
- SFP Ports: None
- Supported Voltage Range: 52V
- Dimensions: 184 x 94 x 27mm
