Description

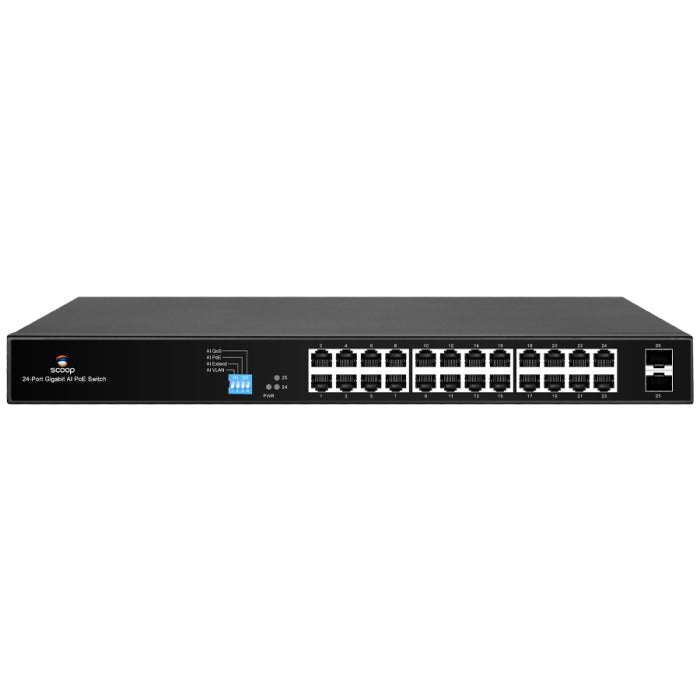

Scoop’s SPS-24G2S is an unmanaged 24 (port) Gigabit Ethernet AI PoE switch with 2x SFP Uplink ports.
Each of these PoE ports are 802.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. The total PoE budget is 250W and up to a maximum of 30W per port.
The SPS-24G2S supports 4 working modes:
AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI VLAN: Enables Port Isolation on Ports 1-24.
AI QOS: Prioritizes network bandwidth based on network usage history and analytics.
AI PoE: Automatically restarts a PoE-powered device if no data passes through the port for a set time.
Specifications
- Ethernet Ports: 24x 10/100/1000
- Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
- Max. Power Consumption: 15W

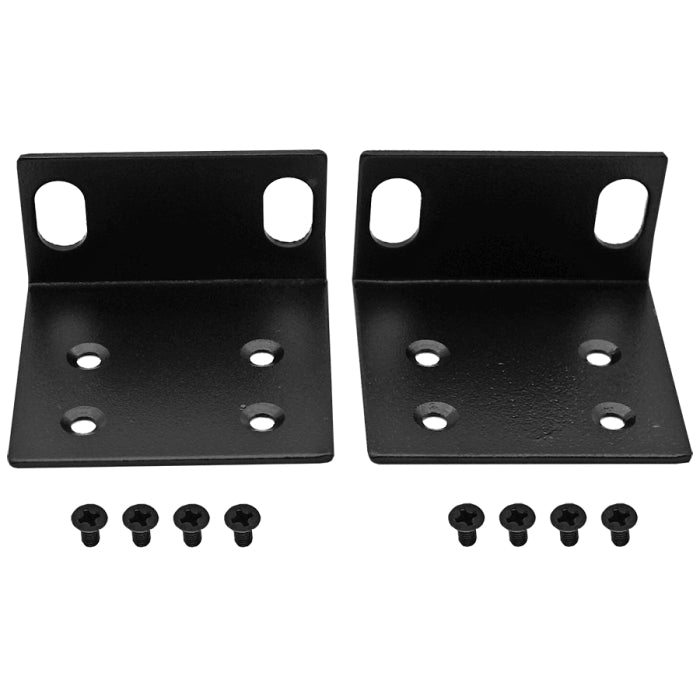

- Mounting: Desktop or Rack-Mount
- Operating System: None
- Operating Temperature: 0°C to 40°C
- PoE Input: None
- PoE Output: 802.3af/at PoE on Ports 1~24

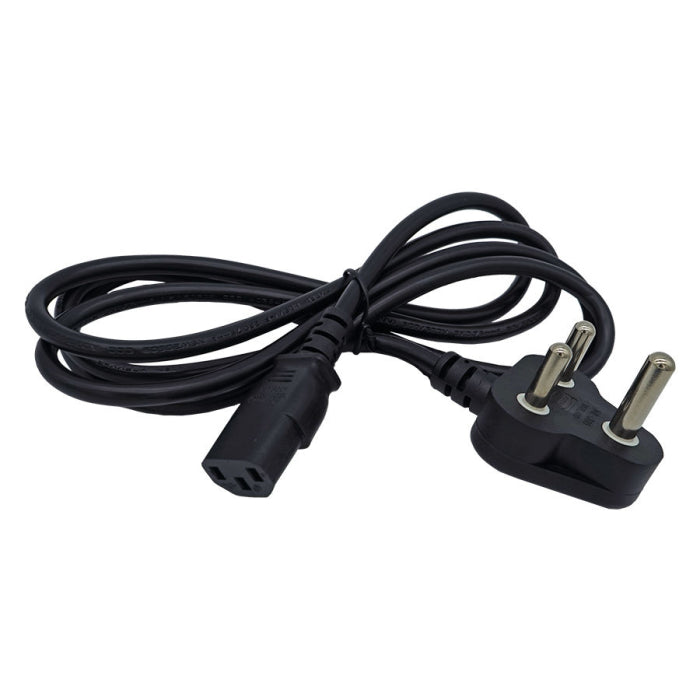

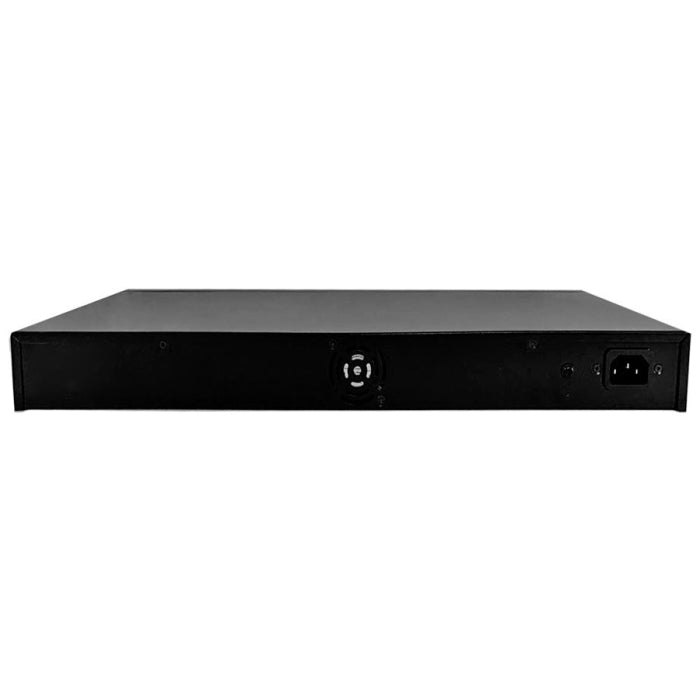

- Power Input: 1x IEC Power Cord (Included)
- Serial Interface: None
- SFP Ports: 2x 1.25Gbps
- Supported Voltage Range: 100V-240V
- Dimensions: 440mm x 180mm x 44mm
