Description

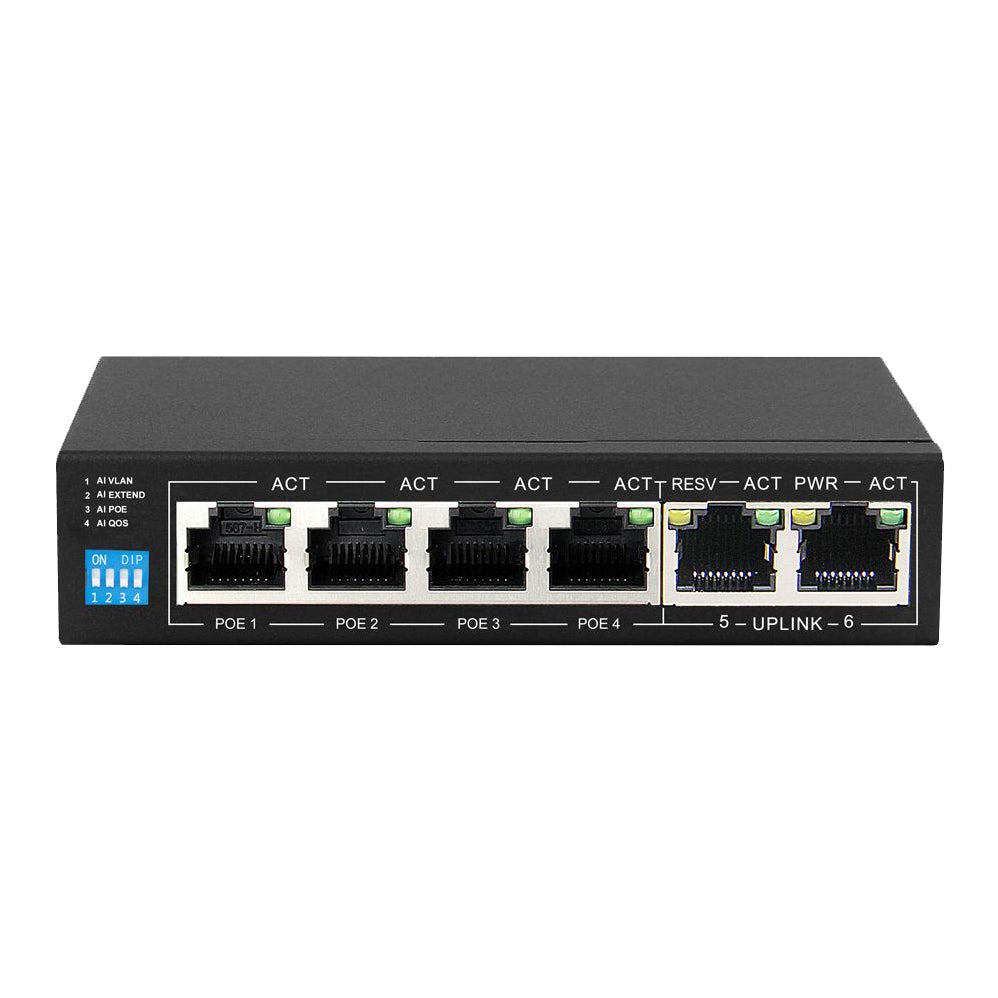

Scoops SPS-4F2F is an unmanaged 4 port Fast Ethernet AI PoE switch with 2x Fast Ethernet uplink ports.
Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 60W and the maximum budget per port is 36W.
The SPS-4F2F supports 4 working modes:
- VLAN (Port Isolation): Enables Port Isolation on port 1-4.
- AI Extend Mode: Transmission distance of ports 1-4 can be increased to up to 250 meters at 10Mbps using Cat6 solid copper cable.
- AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
- AI QOS: Priorities network bandwidth based on network usage history & analytics.
Specifications
- Ethernet Ports: 6x 10/100
- Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
- Max. Power Consumption: 3W
- Mounting: Desktop
- Operating System: None
- Operating Temperature: 0°C to 40°C
- PoE Input: None
- PoE Output: 802.3af/at PoE on Ports 1~4

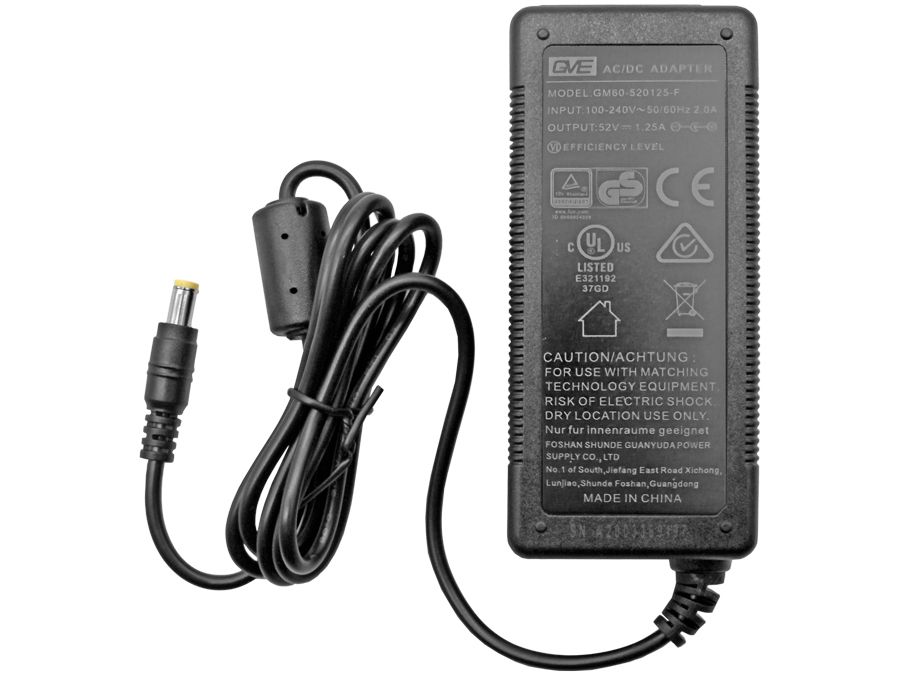

- Power Input: 52V 1.15A Power Supply (Included)
- Serial Interface: None
- SFP Ports: None
- Supported Voltage Range: 52V
