Description

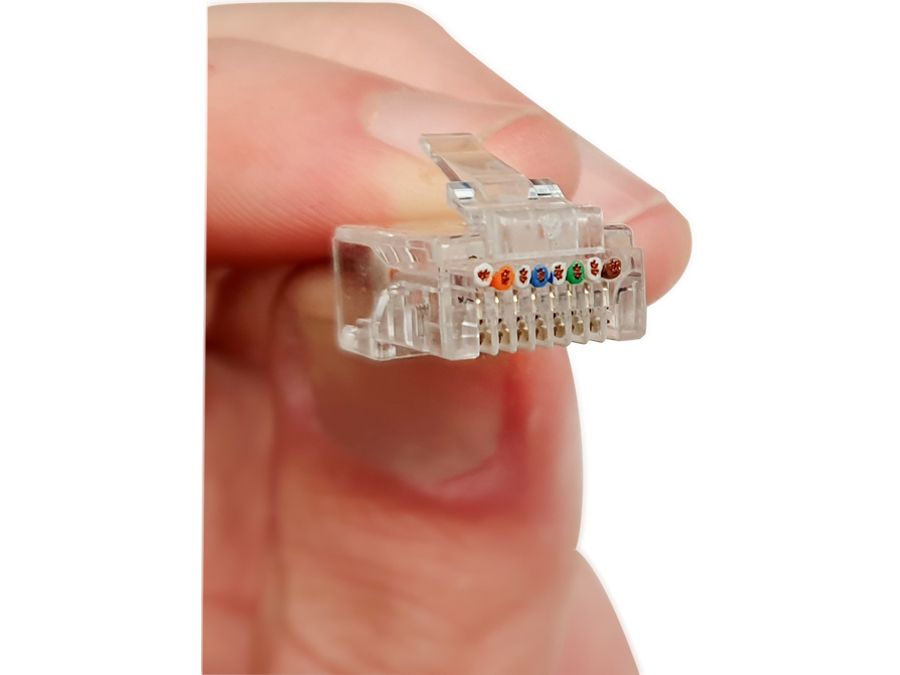

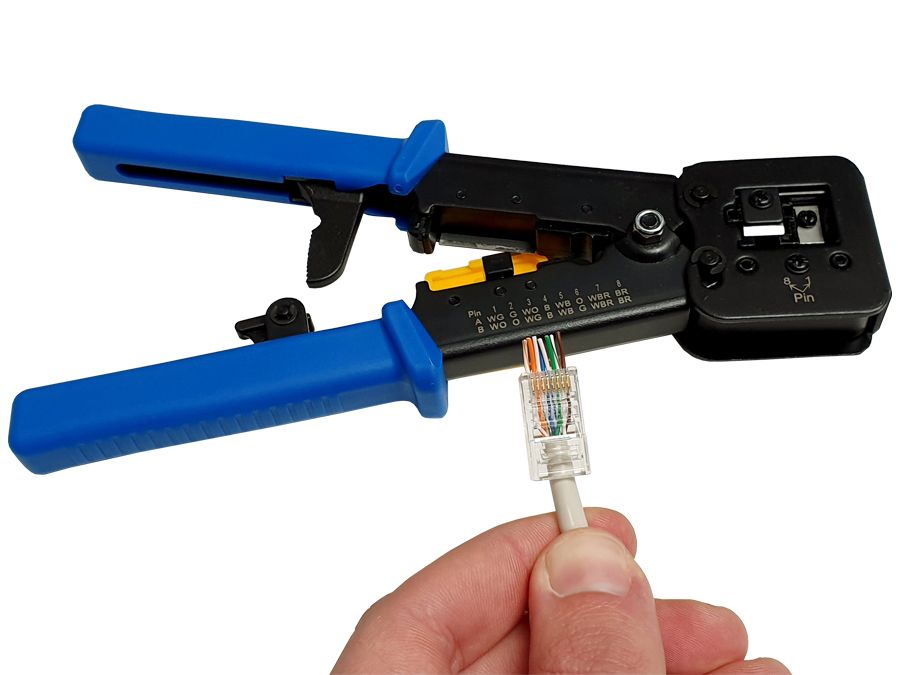

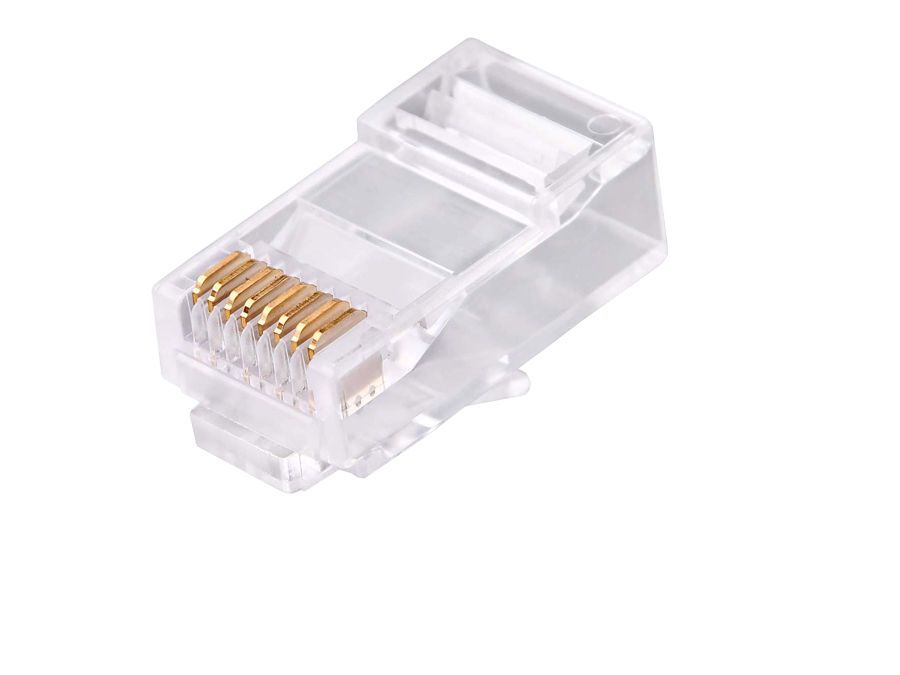

Scoop's RJ-45Cat6EZ is a Cat6 EZ RJ45 connector which allows all eight strands of a UTP cable to pass through the head of the connector. Then using the pass-through RJ45 crimping tool you can crimp and cut off the excess copper. This ensures a strong connection and eliminates possible packet loss on partially crimped cables. The RJ45-Cat6EZ connector is only compatible with pass through crimpers.
Specifications
- Compatibility: 23-26AWG
- Conductor Material: 50 Micron Inches of Gold Plating over Copper Alloy
- Design: 8 Conductors
- Material: Polycarbonate
Wiring guide and compatible tool

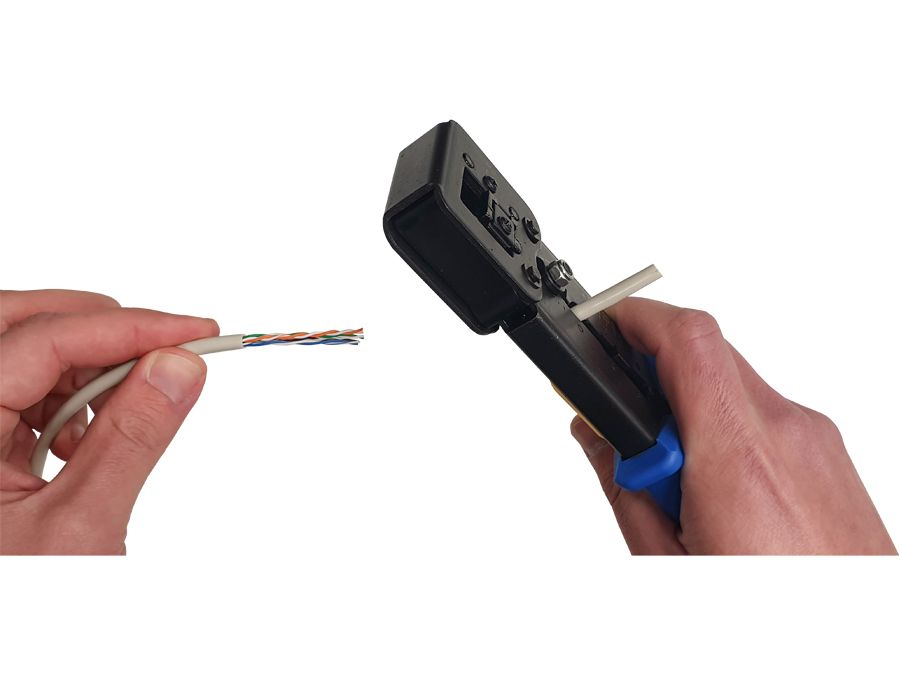

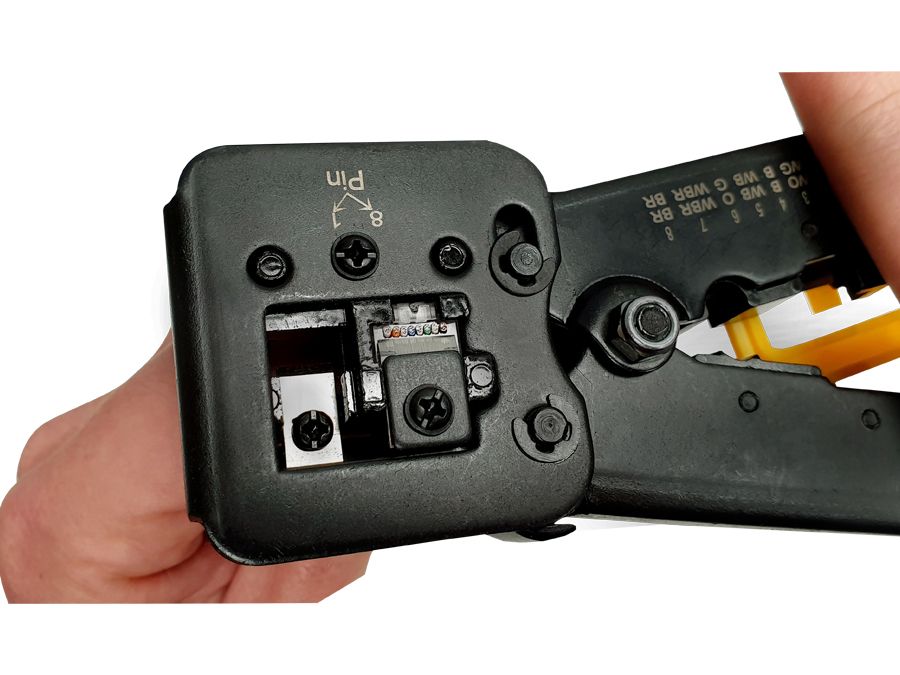

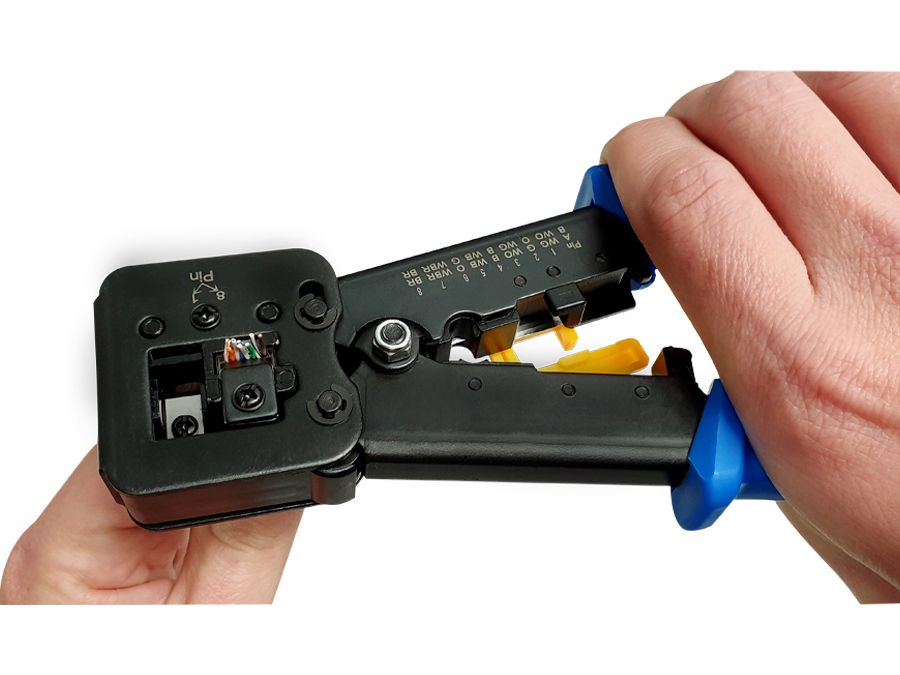

- Pass-through RJ45 crimping tool - trims the protruding conductors during termination; sold separately.

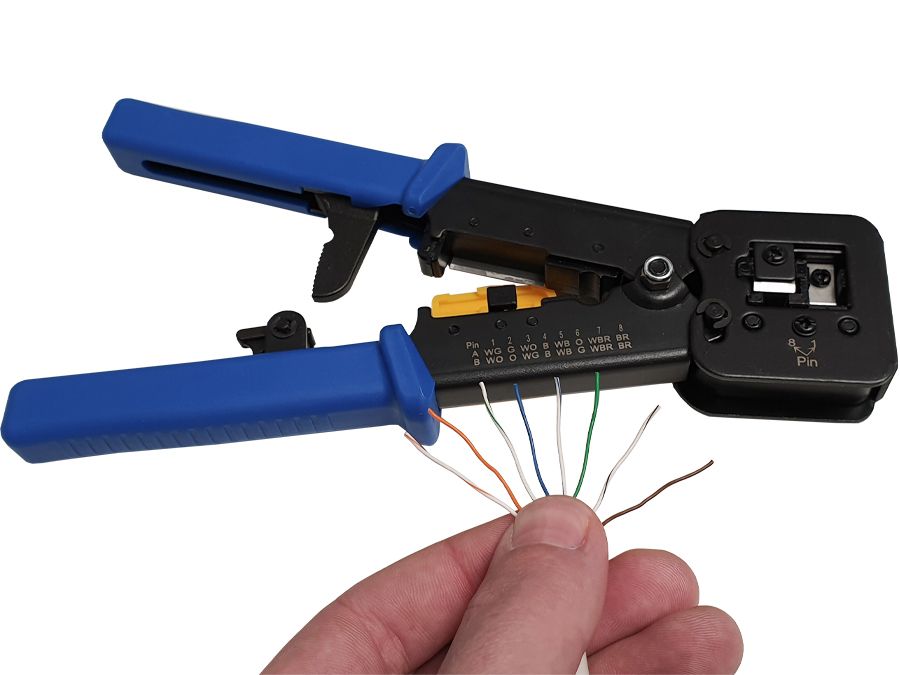

- Download the RJ45 T568A/T568B wiring card (PDF) - a printable wire-order reference with plug orientation and pre-crimp checks.
For a standard straight-through Ethernet lead, use the same wiring standard at both ends: T568A-to-T568A or T568B-to-T568B. Choose plugs that match your cable and use the specified termination tool.
