Description

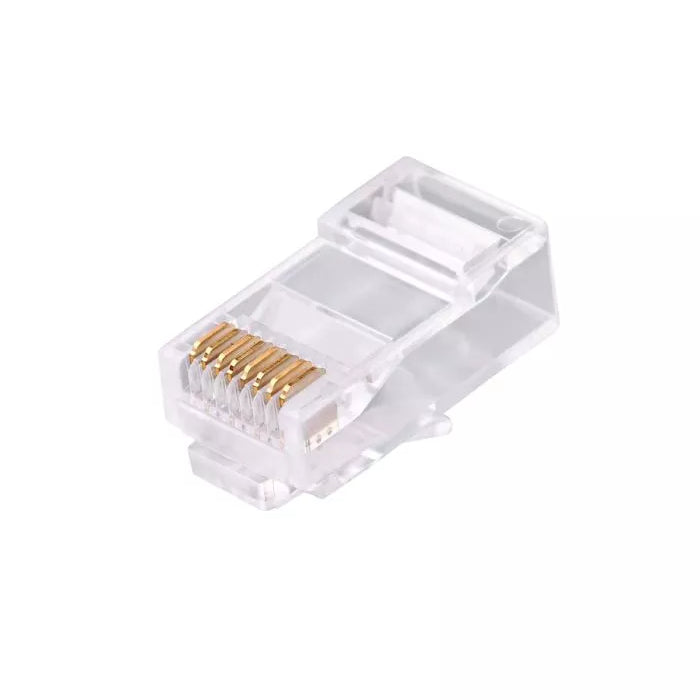

The SCOOP RJ45 Cat5e UTP Modular Plug is a connector designed for Ethernet cables, specifically Cat5e UTP cables. It allows all eight strands of the cable to pass through the head of the connector, ensuring a strong and reliable connection when crimped using a compatible tool
Wiring guide
- Download the RJ45 T568A/T568B wiring card (PDF) - a printable wire-order reference with plug orientation and pre-crimp checks.
For a standard straight-through Ethernet lead, use the same wiring standard at both ends: T568A-to-T568A or T568B-to-T568B. Choose plugs that match your cable and use the specified termination tool.
