Description

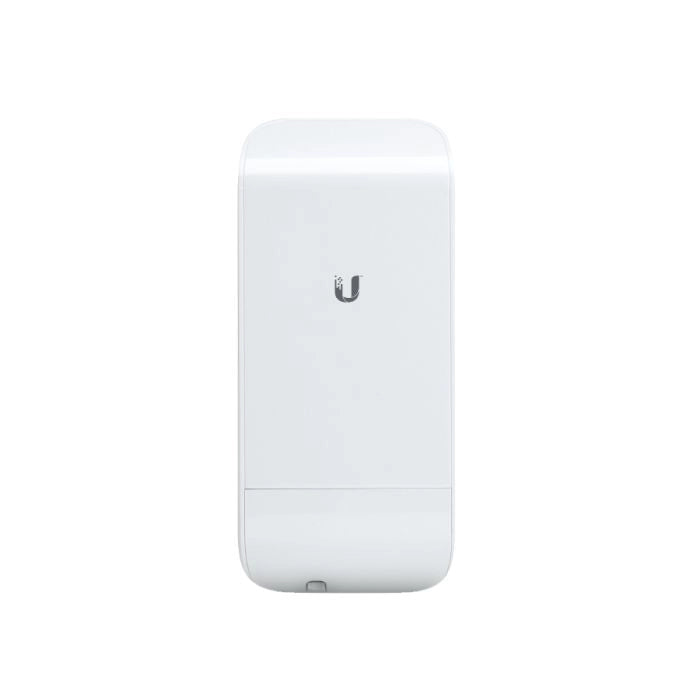

The UBIQUITI airMAX NanoStation Loco M2 is a compact outdoor 2.4 GHz radio with an integrated 8.5 dBi antenna. It can be used as customer-premises equipment or in short point-to-point and point-to-multipoint wireless links.
A single Fast Ethernet port carries data and 24 V passive PoE to the pole-mounted unit. The UV-stabilised enclosure and broad operating-temperature range suit outdoor network installations.
Why you’ll love it
- Integrated antenna: The 8.5 dBi antenna keeps the installation compact.
- Flexible wireless roles: Supports station and access-point applications.
- Outdoor construction: UV-stabilised housing is designed for exposed installations.

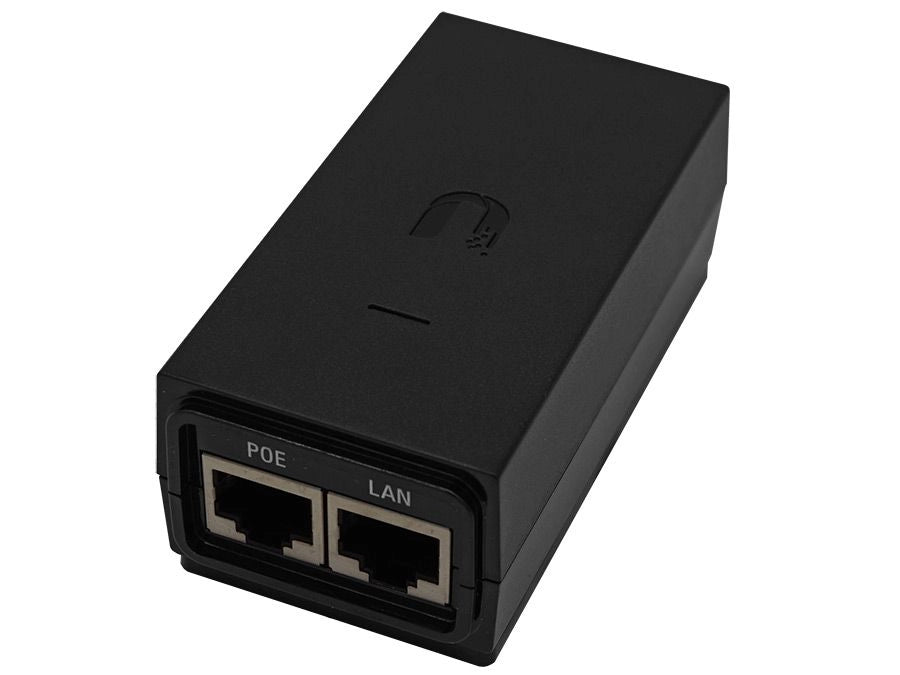

- Passive PoE: Power and data share one Ethernet cable.
- Pole mounting: The compact form is suited to masts and building links.
Technical specifications
- Model: LocoM2
- Frequency: 2.4 GHz
- Antenna gain: 8.5 dBi
- Network interface: 1 × 10/100 MbE RJ45
- Power: 24 V passive PoE; supported input 22–27 V DC
- Maximum power consumption: 5.5 W
- Operating temperature: -30 to 75 °C
