Description

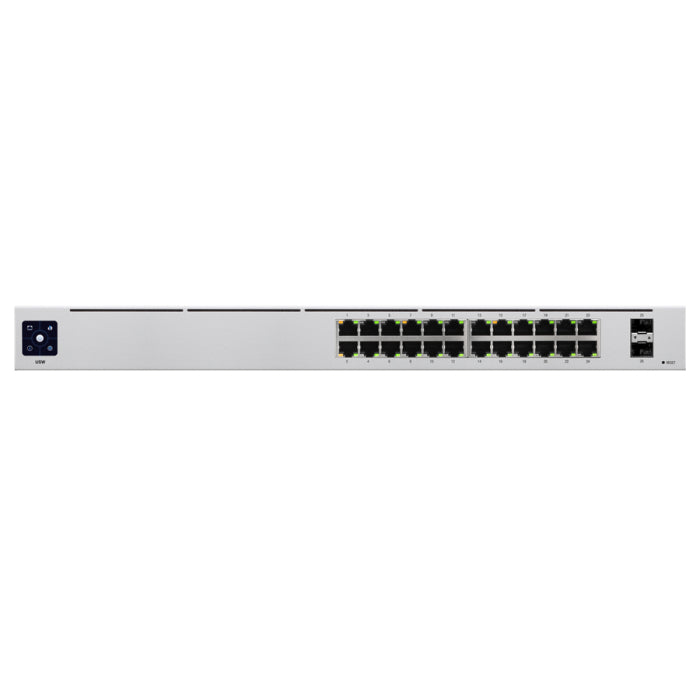

The UBIQUITI UniFi Switch 24 is a managed 1U network switch with 24 Gigabit Ethernet ports and two 1G SFP uplinks. It provides a straightforward way to expand a UniFi network while retaining central configuration and monitoring.

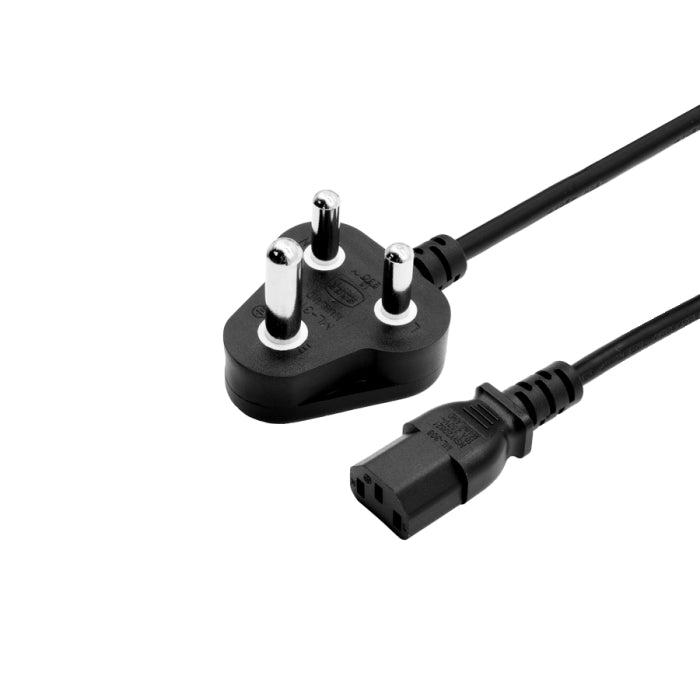

Layer 2 functions including link aggregation, spanning tree, VLAN controls, port isolation and mirroring support more structured office, lab and equipment-room networks. The rack-mount enclosure includes an internal AC power supply.
Why you’ll love it
- 24 Gigabit ports: Adds substantial wired capacity to a UniFi network.
- Two SFP uplinks: Supports 1G fibre connections or compatible SFP modules.
- Central UniFi management: Configure and monitor the switch through UniFi Network.
- Managed Layer 2 features: Supports VLAN, aggregation, spanning-tree and traffic-control functions.

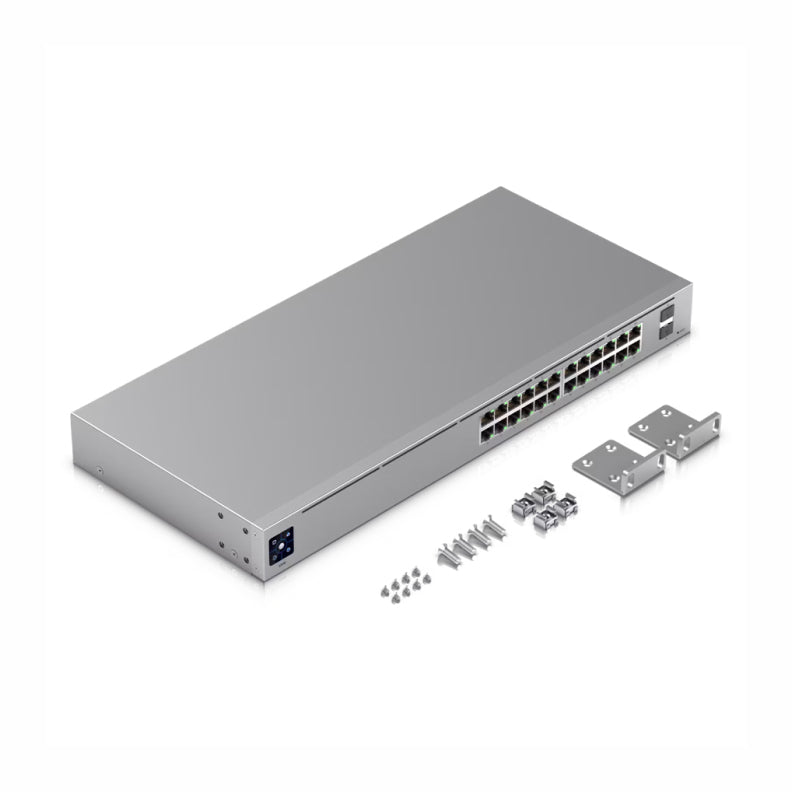

- 1U rack mounting: Fits standard network cabinets and racks.
Technical specifications
- Model: USW-24
- Copper ports: 24 × 10/100/1000 MbE RJ45
- Fibre ports: 2 × 1G SFP
- Switching capacity: 52 Gbps
- Power input: 100–240 V AC, 50/60 Hz
- Maximum power consumption: 25 W
- Dimensions: 442 × 200 × 44 mm
