Description

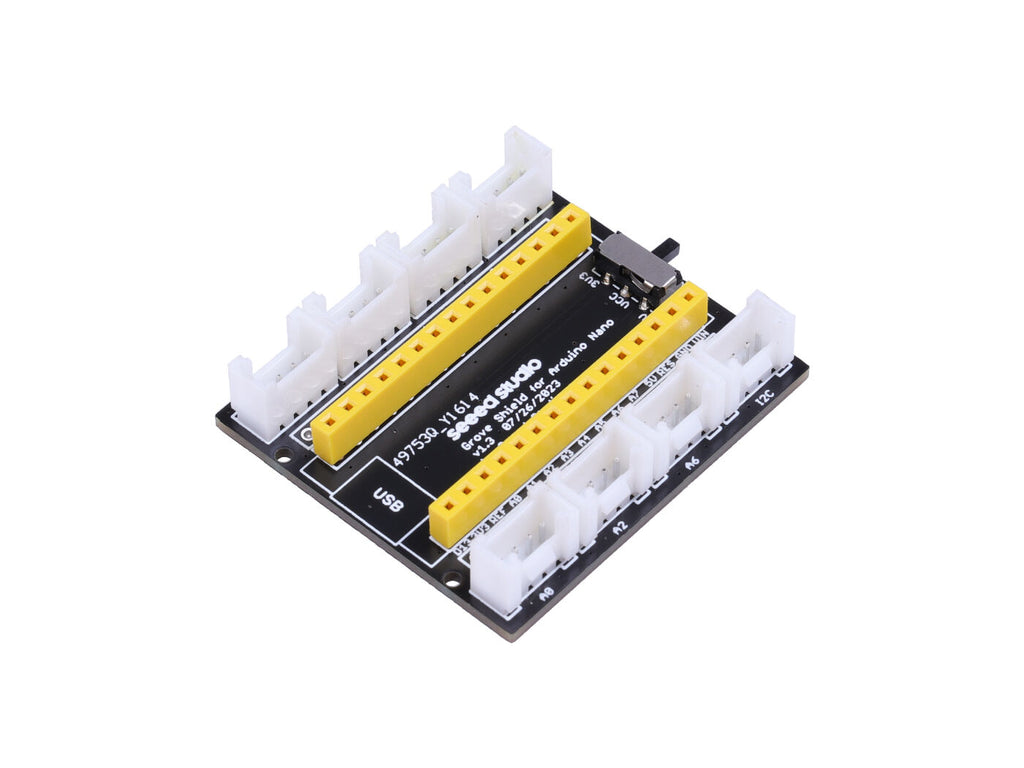

Grove Shield for Arduino Nano provides you with a simple way to connect with Arduino Nano and Seeeduino Nano.
Grove Shield for Arduino Nano provides you with a simple way to connect with Arduino Nano and Seeeduino Nano. This shield helps you get rid of breadboard and jumper wires by pulling out the pins of the motherboard and expanding to 8 Grove connectors. This shield pulls out the pins of the motherboard and expands to 8 Grove connectors, including 3 Grove digital connectors, 3 Grove analog connectors, 1 Grove I2C connector, and 1 Grove UART connector.
We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.
This product does not include a Seeduino Nano, please click here if you need one
V1.1 Change Note:
- Add VCC 3.3V/5V Switch
V1.1 Support List:
- Arduino Nano
- Seeeduino Nano
- Arduino Nano Every
- Arduino Nano 33 IoT*
- Arduino Nano 33 BLE*
- Arduino Nano 33 BLE Sense*
Features
- Easy to use: Plug the expansion board into the Arduino Nano or Seeeduino Nano and use it directly.
- Numerous interfaces: It expands to 8 Grove connectors, including 3 Grove digital connectors, 3 Grove analog connectors, 1 Grove I2C connector, and 1 Grove UART connector.
- Grove unified socket: The shield ensures "Plug and Play" and could be versatile for various applications.
Specifications
|
Operating voltage |
3.3V/5V |
|
Operation Temperature |
-25℃ to +85℃ |
|
Analog Ports |
3 |
|
Digital Ports |
3 |
|
UART Ports |
1 |
|
I2C Ports |
1 |
|
Size |
45mm x40mm |
*Note: To work with Arduino 33 serial boards, please switch the VCC power to 3.3V. If the VCC power supply is switched to 5V, the development board may be damaged!
