Description

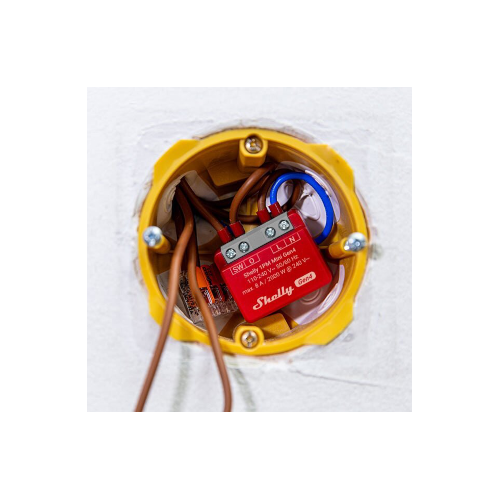

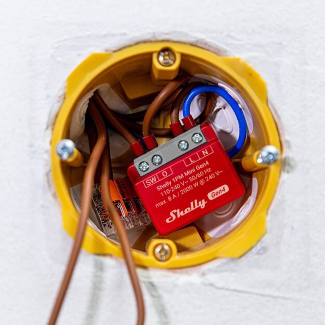

The Shelly 1PM Mini Gen4 is a compact smart switch with integrated power metering and advanced multi-protocol connectivity. Designed for behind-the-scene installs, it fits inside standard junction boxes or wall switch back-boxes and gives you full remote control and real-time energy tracking of connected appliances. A significant upgrade from previous generations, it features a faster processor, Matter certification, and support for Wi-Fi, Zigbee, and Bluetooth.
Key Features

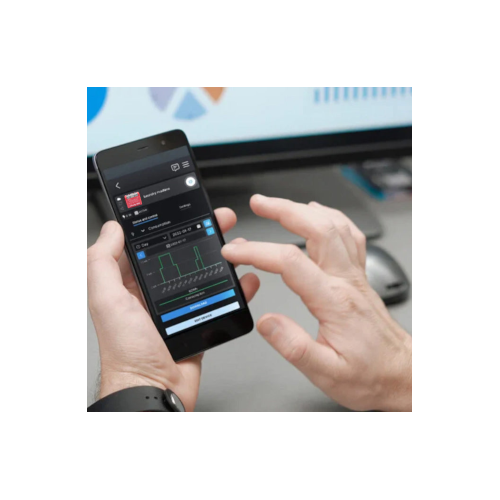

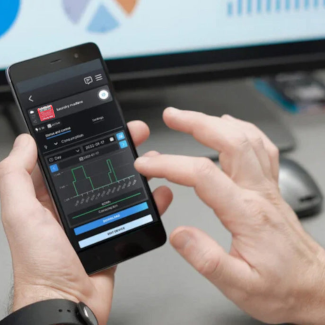

- Smart switch with power measurement – monitor consumption of lights, small appliances and more.
- Multi-protocol connectivity: Wi-Fi, Zigbee and Bluetooth with Matter certification allows flexible integration.
- Compact size for retrofit installation behind existing switches or sockets.
- Supports smart automations: scheduling, scripting, MQTT/webhooks and advanced control.
- Load capacity up to 8 A (at 230–240 V AC) for controlling typical household circuits and appliances.
Specifications
- Supply Voltage: 110-240 V AC ±10%, 50/60 Hz.
- Max Switching Current: 8 A AC.
- Max Switching Power (AC): Approx. 2000 W.
- Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n/ax), Zigbee (802.15.4), Bluetooth (BLE) and Matter support.

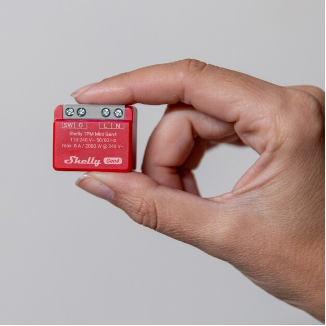

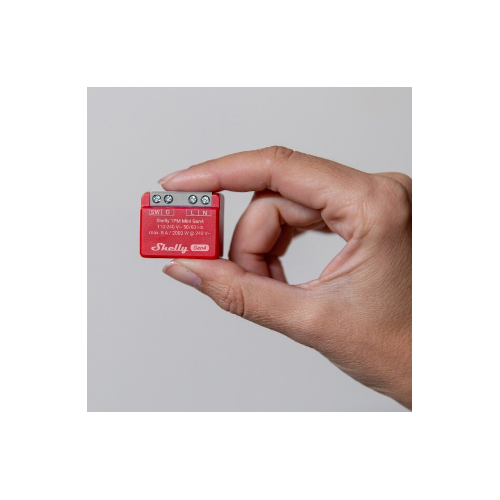

- Dimensions: ~29 × 35 × 16 mm (compact form)
- Environmental: Operating temperature –20 °C to +40 °C.
Upgrade Highlights
Compared with previous Mini Gen3 models, the Gen4 version offers:
- A more powerful processor and increased memory (8 MB Flash) for faster response and smoother automation.
- Matter certification and multi-protocol connectivity (Zigbee + Bluetooth) for enhanced compatibility and future-proofing.
- Improved features for retrofits and smart installations with tighter fit, extra control and monitoring capability.
