Description

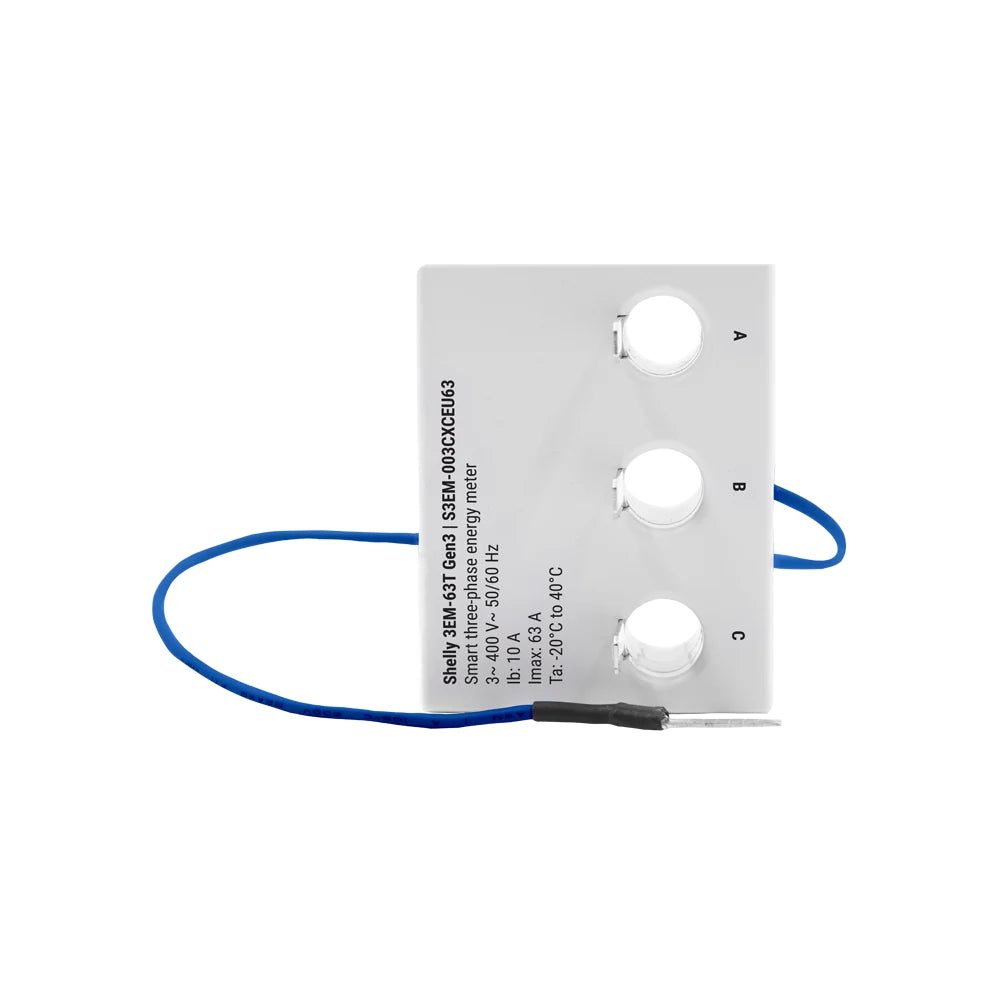

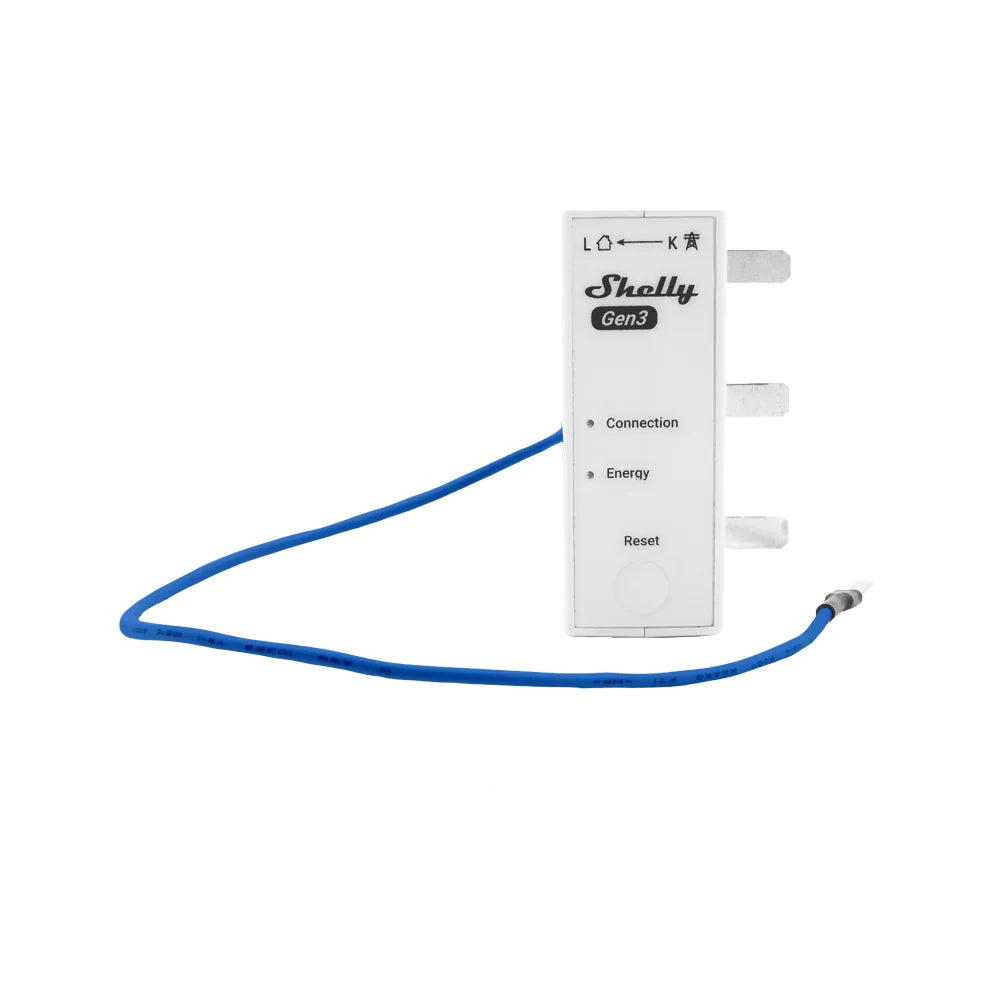

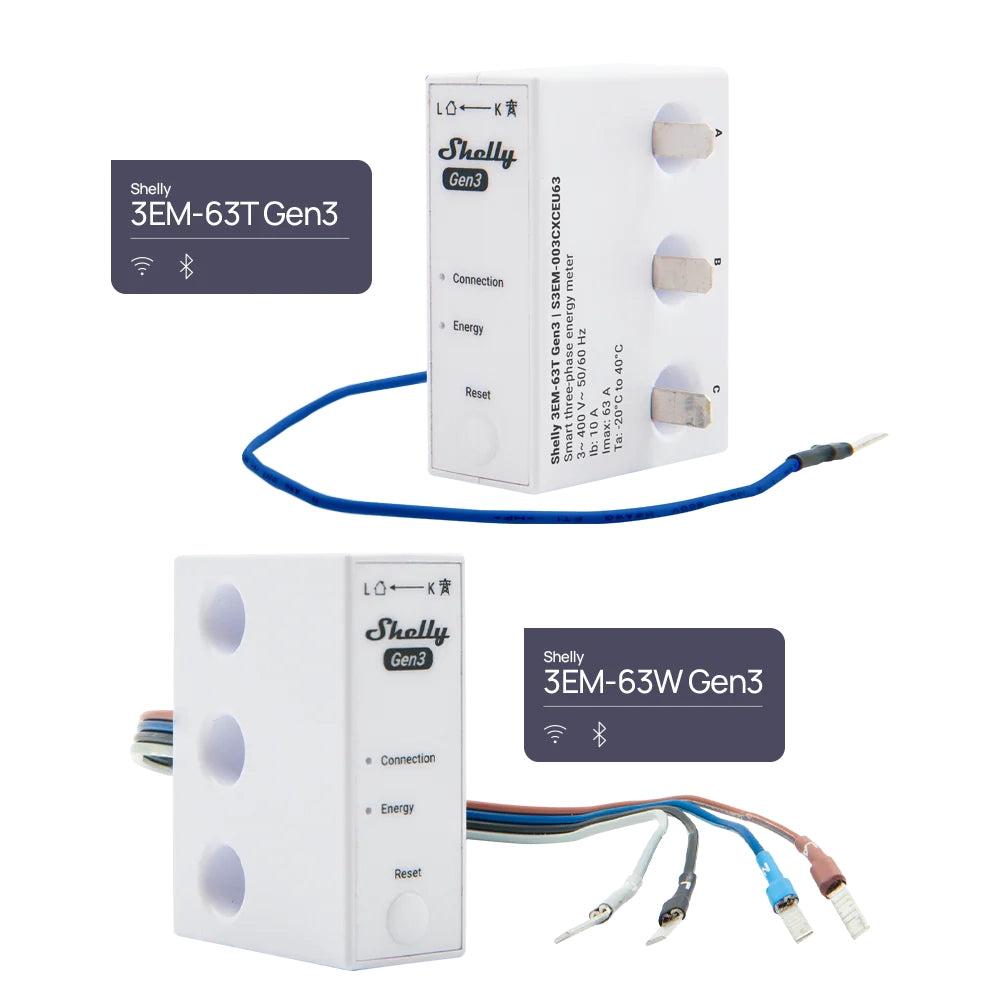

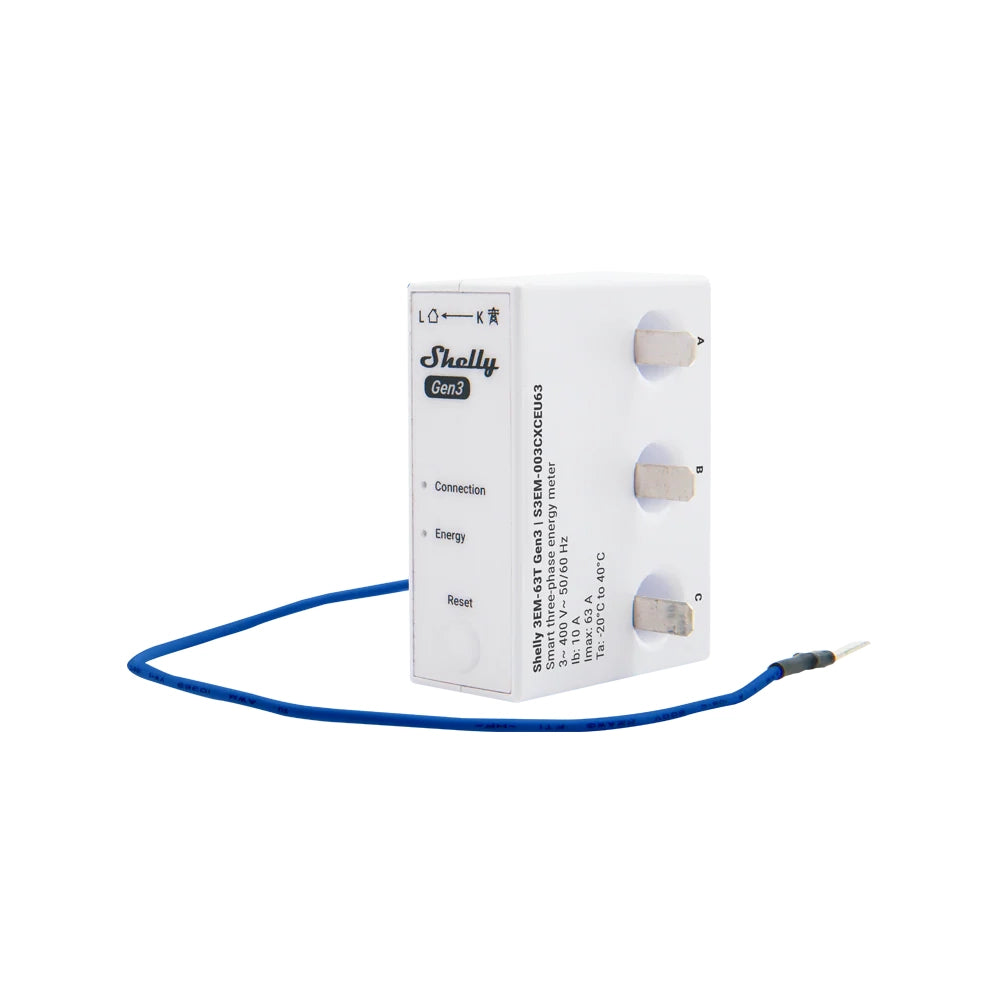

The SHELLY 3EM-63T Gen3 is a high-precision, three-phase smart energy meter designed for advanced measurement and monitoring of electrical systems up to 63 A per phase. Built on the next-generation ESP32 platform with enhanced connectivity and processing power, it delivers real-time tracking of voltage, current, active/reactive power, energy consumption, and power factor. All accessible locally or remotely via the Shelly Smart Control app or integrated smart home platforms.
Ideal for residential, commercial, or industrial energy monitoring, the 3EM-63T Gen3 helps optimize usage, reduce costs, and improve electrical system visibility with accurate, reliable data.
Key Features
- Three-Phase Monitoring: Measures all three phases (L1, L2, L3) for comprehensive energy tracking.
- High Current Range: Supports up to 63 A per phase, suitable for heavy loads and robust electrical systems.
- Real-Time Metrics: Tracks current, voltage, active/reactive power, energy, frequency, and power factor.
- Smart Connectivity: Works with Wi-Fi (2.4 GHz) and local control via the Shelly app or smart home platforms (MQTT, REST API).

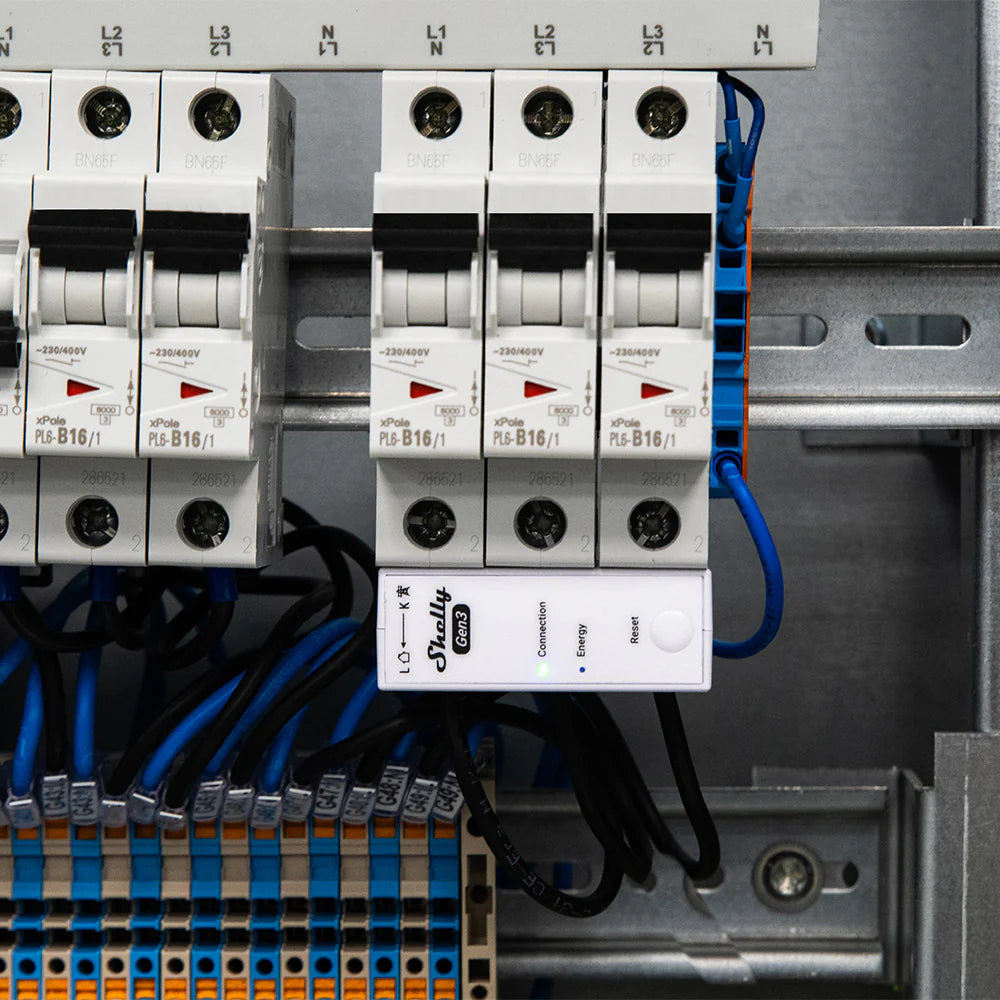

- DIN-Rail Mount: Convenient for distribution boards and electrical cabinets.
- Automation & Alerts: Set thresholds, notifications, and schedules for smarter energy management.
- Compact & Reliable: Built for demanding electrical environments with robust protection.
Specifications
- Model: Shelly 3EM-63T Gen3
- Measurement Type: Three-phase electrical meter
- Max Current: 63 A per phase
- Voltage Range: 80–480 V AC
- Power Metrics: Active power (kW), Reactive power (kVar), Energy (kWh)
- Connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz)
- Protocols: MQTT, REST API, eWeLink/Shelly app
- Mounting Style: DIN rail TS35/7.5 or TS35/15
- Display: Digital / App-based readout
- Operating Temp.: –20 °C to +55 °C
- Protection Class: IP20 (indoor installation)
Applications
Perfect for energy monitoring in homes, commercial buildings, and industrial systems, the Shelly 3EM-63T Gen3 enables:
- Detailed three-phase power consumption tracking
- Load balancing insights and optimization
- Automated alerts for threshold exceedance
- Integration with home automation systems for energy-saving strategies
