Description
Shelly BLU Gateway is a small USB dongle acting as the gateway between Shelly BLU devices and the Shelly Cloud. If you want to use Shelly Gen-1 devices with Shelly BLU sensors, Shelly BLU Gateway can serve as a gateway to Shelly Cloud and thus to your existing Gen-1 devices. This way, you can eliminate the need for an upgrade to Shelly Plus or Pro devices. But Shelly BLU Gateway isn't just limited to cloud connections! The device allows for local control with immediate response through scripting.

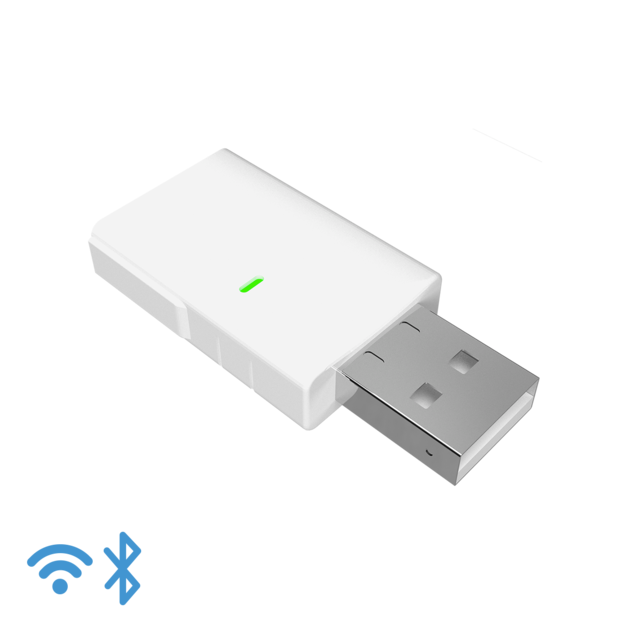

Bluetooth to Wi-Fi gateway in a USB-A dongle
A dongle which works as a bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device. Now, all your Shelly devices – not just Plus and Pro – can seamlessly interact with your BLU devices.
- USB Type-A plug
- Scripting for local control
- Supports MQTT, WebSocket or any other compatible home automation system, like Home Assistant
- Wi-Fi range extender
- Can scan the Bluetooth network and find all other Bluetooth devices; can trigger actions on third-party devices using scripting
Specifications
PHYSICAL | |
---|---|
Size (HxWxD): | 45x20x8 mm / 1.77x0.79x0.21 in |
Weight: | 5g / 0.18 oz |
Material: | Plastic |
Color: | White |
ENVIRONMENTAL | |
Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
Humidity: | 30 % to 70 % RH |
ELECTRICAL | |
Power supply: | 5 VDC (from USB Type-A port) |
Power consumption: | <1 W |
RADIO | |
RF band: | 2400 - 2483.5 MHz |
Max. RF power: | <20 dBm |
Bluetooth Protocol: | 4.2 |
Bluetooth Range: | Up to 20 m / 66 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
MCU | |
CPU: | ESP32 |
Flash: | 4MB |
FIRMWARE CAPABILITIES | |
Scripting: | Yes |
MQTT: | Yes |
CoAP: | No |
