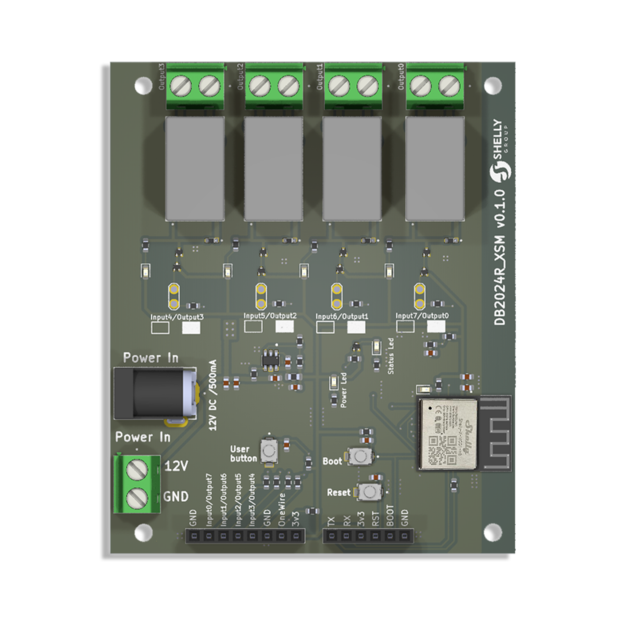

Development Board Shelly X SM 4 Relays
Shelly-X-MOD1-H8 reference design. Evaluate Shelly ecosystem and Shelly X SM embedded modules family features. 4 x 16A on-board relays, 4 digital inputs for control, external temperature and humidity sensor support. Wi-Fi and Bluetooth connectivity. Control lighting, heating, or any other connected electrical appliance which requires multichannel switching capability, or high nominal power. Total device maximum - 50A.
- Shelly-X-MOD1-H8 - small-sized 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 module Built around ESP-Shelly-C38F SoC, RISC-V single-core microprocessor 8 MB flash in chip package
- Supports up to 16 A per channel (3300 W)
- 2 x LED indicators
- Scripting
- Supports schedules, scenes, and local actions
- No HUB required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
- Can act as Wi-Fi range extender & BLE gateway.
Specifications
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 80x101x35 mm / 3.15x3.98x1.38 in |
| Weight: | 120 g / 4.23 oz |
| ENVIRONMENTAL | |
| Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| ELECTRICAL | |
| Power supply: | 12VDC, 1A (via external adapter, not provided) |
| OUTPUT CIRCUITS RATINGS | |
| Max. switching voltage: | 230 V~ |
| Max. switching current: | 16 A per channel |
| Number of switching cycles: | 10000 |
| Switch type: | One-way |
| Switch configuration: | SPNO (Single-Pole, Normally-Open) |
| RADIO | |
| WI-FI | |
| Protocol: | 802.11 b/g/n |
| RF band: | 2400 - 2473 MHz |
| Max. RF power: | < 10 dBm |
| BLUETOOTH | |
| Protocol: | 5.0 |
| RF band: | 2400 - 2483.5 MHz |
| Max. RF power: | < 4 dBm |
| CPU: | ESP-Shelly-C38F |
| Flash: | 8 MB |
