Description

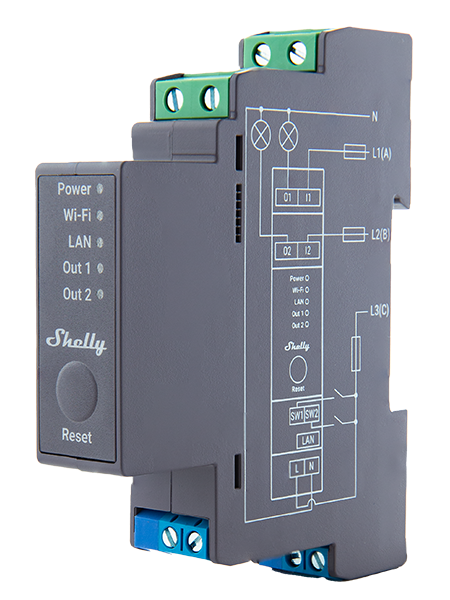

Shelly Pro 2 is a DIN rail mountable 2-channel smart switch with potential-free contacts. Enhanced with all the gen2
firmware flexibility and LAN connectivity, it provides professional integrators with many more options for end customer solutions. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
Shelly Pro 2 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
Shelly Pro 2 has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
Specifications
Type |
Value |
---|---|
Physical |
|
Size (HxWxD): |
94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in |
Weight: |
76 g / 2.68 oz |
Mounting: |
DIN rail |
Screw terminals max torque: |
0.4 Nm / 3.54 lbin |
Conductor cross section: |
0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) |
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 in (green connector) |
Shell material: |
Plastic |
Color: |
Gray |
Environmental |
|
Ambient temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity |
30 % to 70 % RH |
Max. altitude |
2000 m / 6562 ft |
Electrical |
|
Power supply voltage AC: |
110 - 240 V |
Power supply voltage DC: |
N/A |
Power consumption: |
< 3 W |
Neutral not needed: |
No |
Output circuits ratings |
|
Max switching voltage AC: |
240 V |
Max switching voltage DC: |
N/A |
Max switching current AC: |
16 A per channel, 25 A total |
Max switching current DC: |
N/A |
Sensors, meters |
|
Temperature sensor: |
Yes |
Radio |
|
RF band: |
2400 - 2495 MHz |
Max. RF power: |
<20 dBm |
Wi-Fi protocol: |
802.11 b/g/n |
Wi-Fi Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth Protocol: |
4.2 |
Bluetooth Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
MCU |
|
CPU: |
ESP32-D0WDQ6 |
Flash: |
8 MB |
Firmware capabilities |
|
Schedules: |
20 |
Webhooks (URL actions): |
20 with 5 URLs per hook |
Scripting: |
Yes |
MQTT: |
Yes |
CoAP: |
No |
