Description

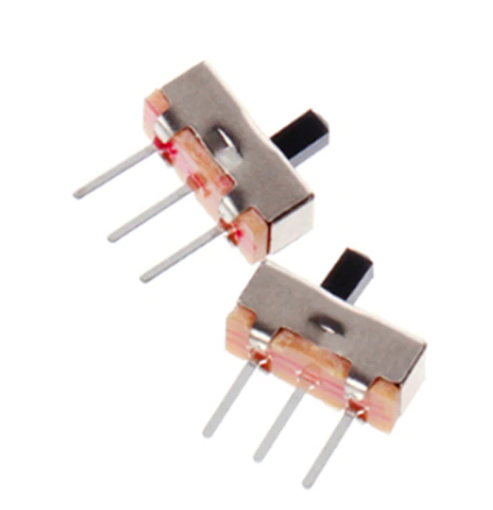

Slide switch
Specifications
- Model:SS-12D00G3
- Type:1 Pole 2 Throw
- Terminal Quantity: 3 Pcs
- Working Power :0.5A 50V DC
- Contact Resistance: 30mΩ Max
- Insulation Resistance:100mΩ Min at 500V DC
- Withstand Voltage: AC 500V for 1 min
- Terminal Length: 3mm
- Pin Pitch: 2.54mm
- Main Body Size(not include Pins & Knob):8 x 4 x 3.8mm (L*W*H)
- Switch Total Size: 8 x 4 x 10mm (L*W*H)
- Knob Size: 1.5 x 1.5 x 3mm (L*W*H)
- Material(External): Plastic, Metal
