Description

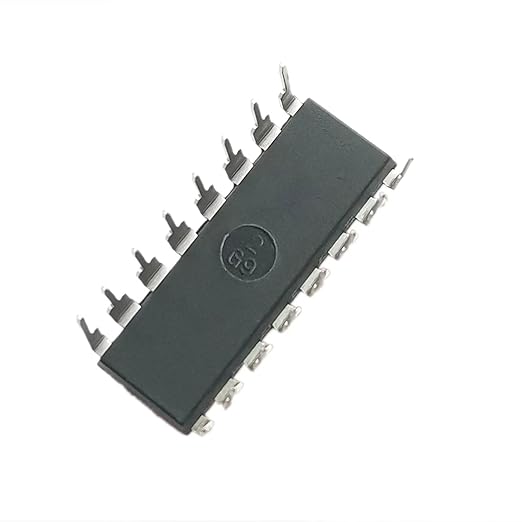

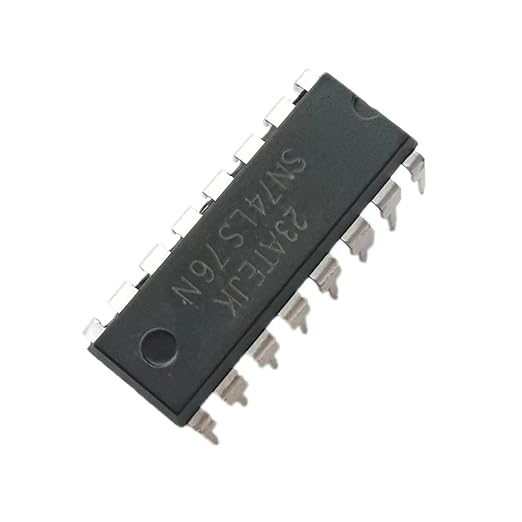

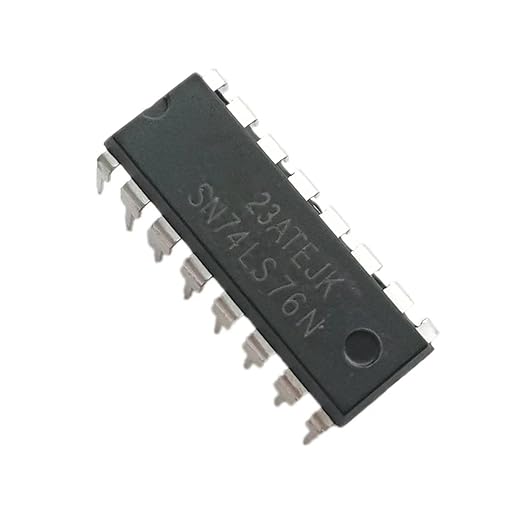

The SN74LS76N Dual JK Flip-Flop is a high-performance digital logic IC that contains two independent JK flip-flops with preset and clear inputs. Designed for reliable signal storage and control in sequential logic circuits, it’s a staple component in counters, shift registers, and frequency dividers. Packaged in a DIP-16 through-hole format, it’s ideal for both prototyping and production use.

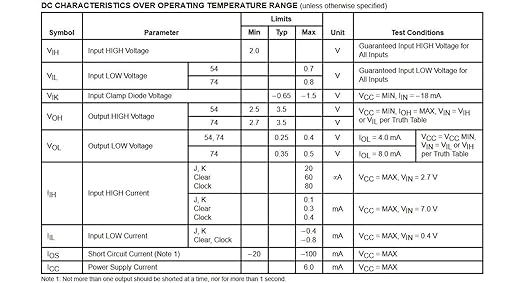

Specifications
- Logic Type: Dual JK Flip-Flop with Preset and Clear
- Logic Family: 74LS (Low Power Schottky TTL)
- Supply Voltage (Vcc): 4.75V to 5.25V
- Propagation Delay Time: 20ns (typical)
- Input Current (High): 20µA
- Input Current (Low): -0.4mA
- Output Current (High): -0.4mA
- Output Current (Low): 8mA
- Package Type: DIP-16 (Dual In-line Package)
- Mounting Type: Through-hole
- Operating Temperature Range: 0°C to +70°C
See datasheet here.
