Description

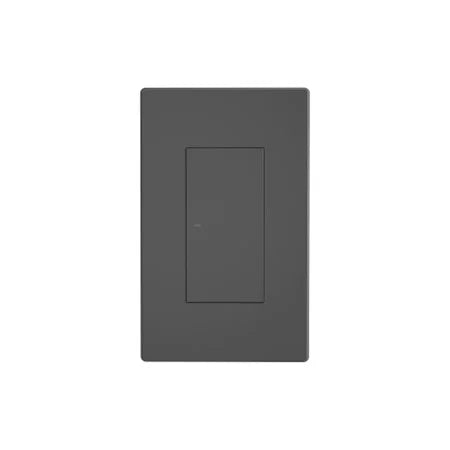

SONOFF SwitchMan Smart Wall Switch-M5 - 1 Gang, 2 Gang and 3 Gang.
Specification
| Gang | |
|---|---|
| Type |
80, 86, 120 |
| Wi-Fi |
IEEE 802.11 b/g/n 2.4GHz |
| Casing material |
PC V0 |
| Working temperature |
-10°C-40°C |
| Voltage |
100-240V AC 50/60Hz |
| Output |
100-240V AC 50/60Hz |
| MCU |
ESP32 |
| M5-1C Current output |
10A |
| M5-2C Current output |
10A(5A/Gang) |
| M5-3C Current output |
6A(2A/Gang) |
| M5-1C Max. power |
2200W |
| M5-2C Max. power |
2200W(1100/Gang) |
| M5-3C Max. power |
1320W (440W/Gang) |
| 80 Certification |
CE/UKCA |
| 86 Certification |
CE/UKCA/CQC/SRRC |
