Description
ZBMINIL2 or ZBMINI Extreme is a new product from SONOFF, a little different to the devices that SONOFF has accustomed us to seeing, both in terms of dimensions and connections.

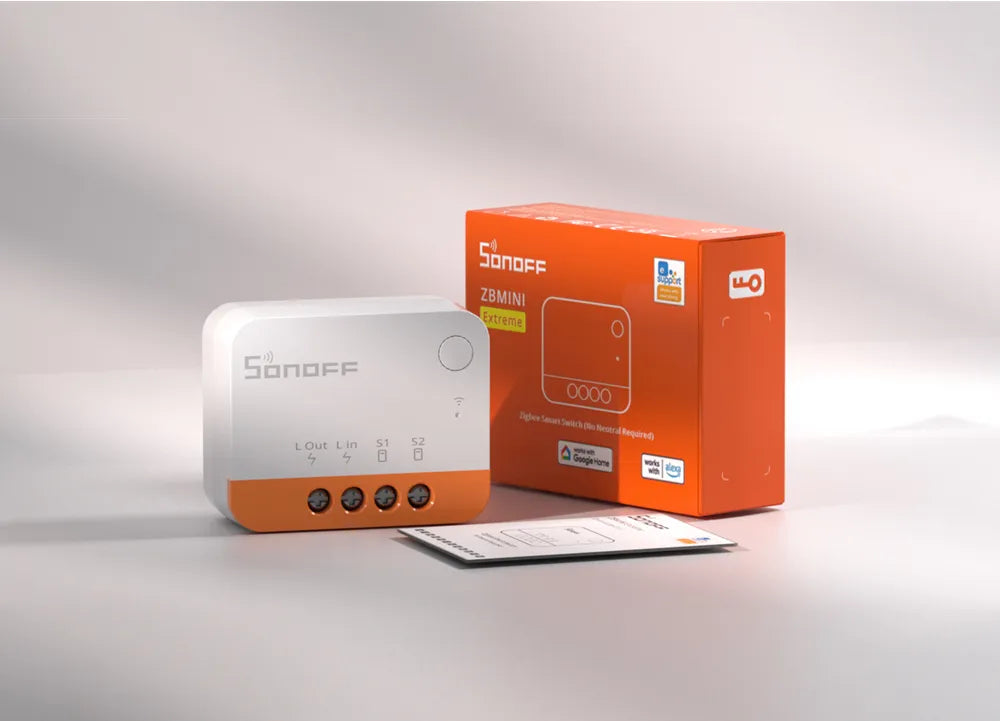

ZBMINIL2 comes in a new colour: white with an orange stripe on the lower part where the terminals are positioned.
The package, which can be misleading because it is much larger than the ZBMINIL2 that is inside it, is orange with the main operating characteristics, compatibility with Google Home and Amazon Alexa and of course the logo written on it in addition to the name of the device and the eWeLink app:
The main feature of ZBMINL2 is the operation without directly connected neutral. In fact, as you can see from the photos, the terminal block, in addition to the usual S1 and S2 for commanding the device, has an input line terminal (L In) and an output line terminal (L Out), in practice the neutral is taken from the lamp to which is connected. But let’s see the connection diagram so as to understand better
Specifications
- Model: ZBMINIL2
- Input: 100-240V 50/60Hz 6A max
- Output: 100-240V 50/60Hz 6A max
- Material: PC V0
- Color: White-orange
- Connection: Zigbee 3.0
