Description

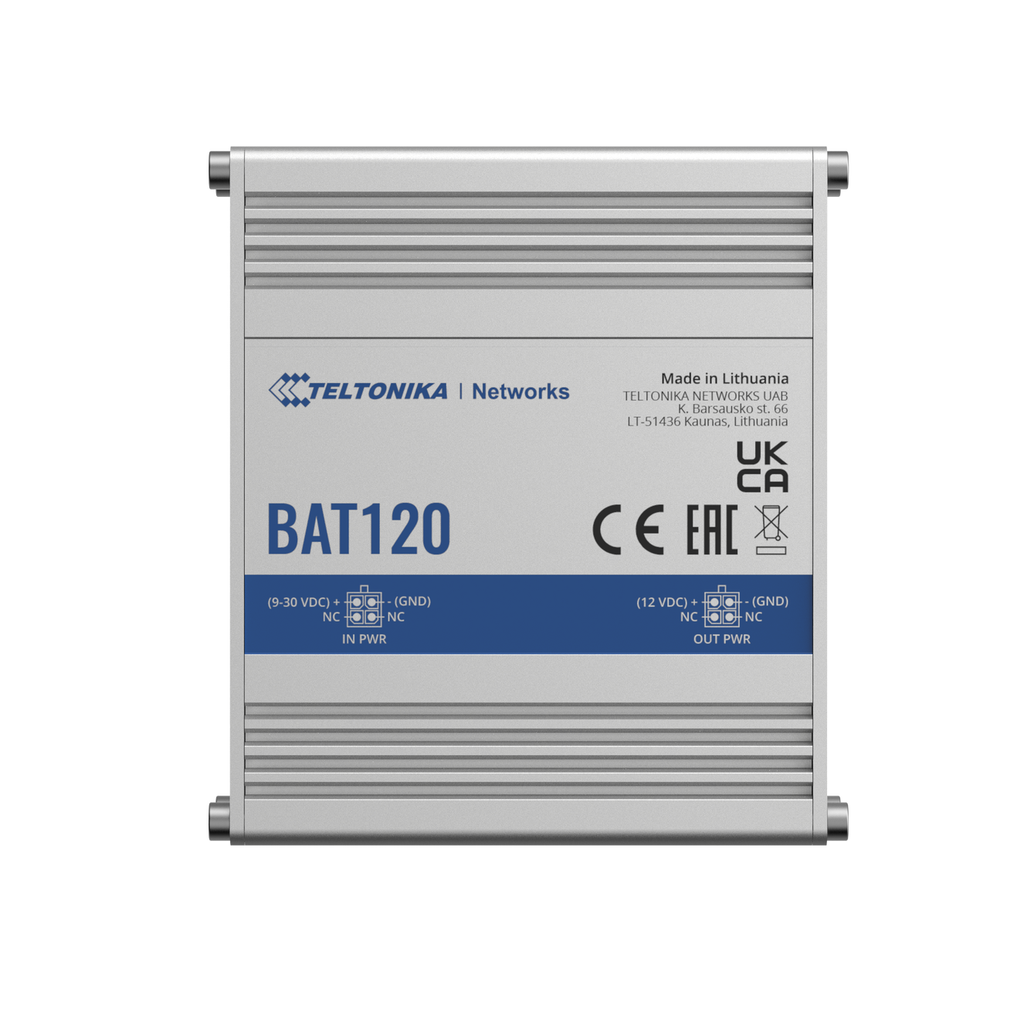

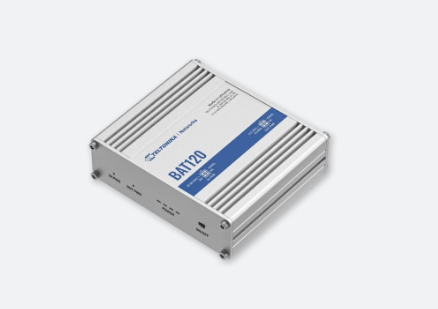

TELTONIKA BAT120 Uninterruptable Power Supply
POWER
- Connector: 4-pin industrial DC power socket
- Input power/max charging current: Charger: max 4 W / 300 mA (max battery charging current)
- Input voltage range: 9 – 30 VDC
- Input protection: Reverse polarity protection, Overvoltage protection
- Output voltage in passthrough mode: 9 – 30 VDC
- Output voltage in battery mode: 12 VDC
- Output protection: 3 A overcurrent protection
- Max output power/current in battery mode: 22 W / 1.8 A
- Battery capacity: 2600 mAh 17 Wh

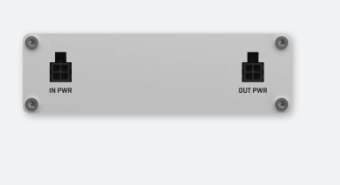

- Power IN: 1x 4-pin DC connector
- Power OUT: 1x 4-pin DC connector

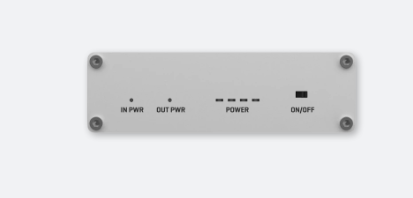

- Status LEDs: 1x IN PWR LED, 1x OUT PWR LED, 4x Power status LEDs
- Switch: On/Off slider switch
- ALARM OUTPUT
- Alarm Output: 1x Active HIGH output, max output 12 V, 2.5 mA
- GENERAL CHARACTERISTICS
- Lithium cells: 2x 18650 Li-Ion cells
- Compatible devices: RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100
- PHYSICAL SPECIFICATION
- Casing material: Aluminum housing
- Dimensions: 100 x 30 x 85 mm
- Weight: 315g
- Mounting options: DIN Rail, flat surface placement
OPERATING ENVIRONMENT
- Operating temperature: 0 °C ~ 45 °C
REGULATORY & TYPE APPROVALS
- Regulatory
CE/RED, UKCA, EAC
