Description

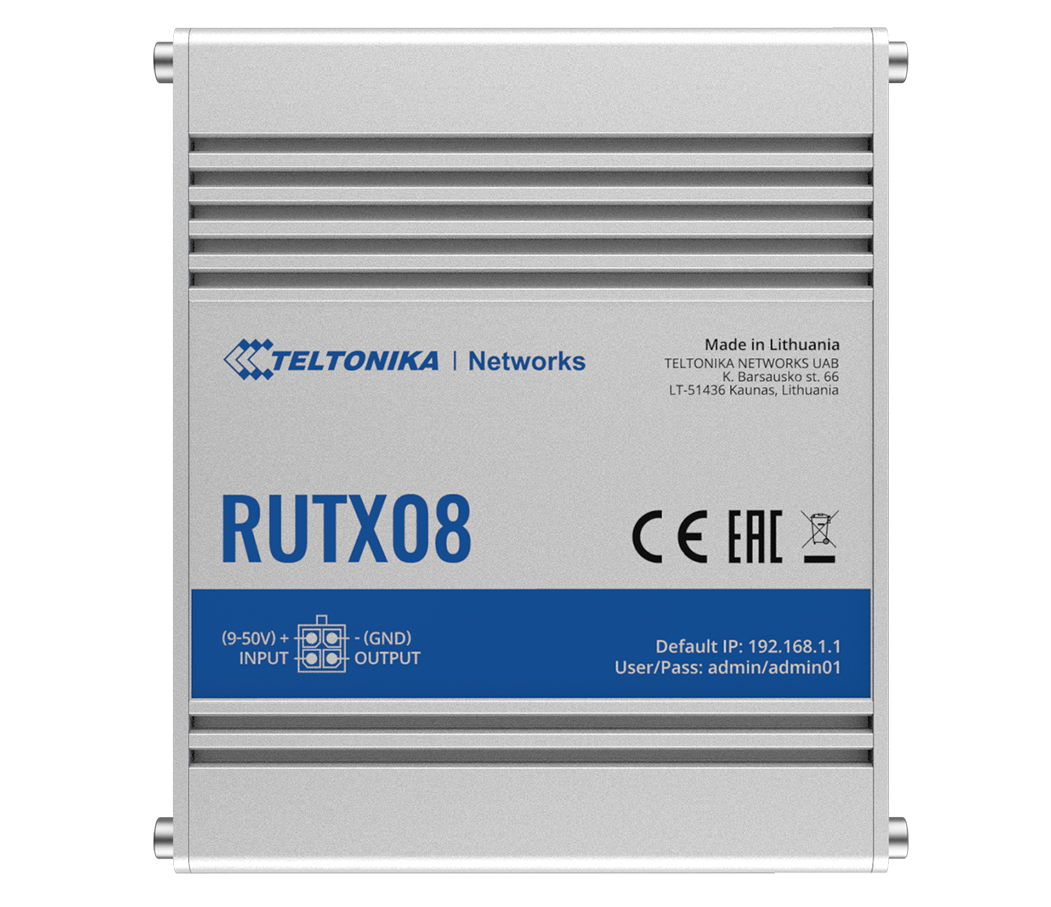

RUTX08 is a durable and powerful Ethernet-to-Ethernet industrial VPN router that runs on RutOS - an advanced OpenWRT based operating system.
It has four Gigabit Ethernet ports with speeds up to 1000 Mbps.
A rugged aluminum housing and industrial networking protocol support make RUTX08 a perfect choice for professional applications.
These powerful specifications combined with RutOS software features, such as multiple supported VPN services, advanced Firewall, and Remote Management System (RMS) make this device a superb performer, where no cellular or Wi-Fi connectivity is required.
ETHERNET
- WAN 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
- Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
- Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA
- VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall Port forwards, traffic rules, custom rules
- DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
- QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port
- DDNS Supported >25 service providers, others can be configured manually
- Network backup VRRP
- Hotspot Internal/external Radius server, captive portal, built in customizable landing page
- SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
- Authentication Pre-shared key, digital certificates, X.509 certificates
- Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN Port and tag based VLAN separation
- WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
- OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
- OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
- IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
- GRE GRE tunnel
- PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
- Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN Method of building scalable IPsec VPNs
- SSTP SSTP client instance support
- ZeroTier ZeroTier VPN client support
- WireGuard WireGuard VPN client and server support
MODBUS
- MODBUS TCP SLAVE
- ID filtering Respond to one ID in range [1;255] or any
- Allow remote access Allow access through WAN
- Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
- MODBUS TCP MASTER
- Supported functions 01, 02, 03, 04, 05, 06, 15, 16
- Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT GATEWAY
- Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker
DNP3
- Supported modes TCP Master, DNP3 Outstation
DATA TO SERVER
- Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
MONITORING & MANAGEMENT
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- FOTA Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT MQTT Broker, MQTT publisher
- SNMP SNMP (v1, v2, v3), SNMP trap
- JSON-RPC Management API over HTTP/HTTPS
- MODBUS MODBUS TCP status/control
- RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
- CPU Quad-core ARM Cortex A7, 717 MHz
- RAM 256 MB, DDR3
- FLASH storage 256 MB, SPI Flash
FIRMWARE / CONFIGURATION
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA Update FW/configuration from server
- RMS Update FW/configuration for multiple devices at once
- Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
- Operating system RutOS (OpenWrt based Linux OS)
- Supported languages Busybox shell, Lua, C, C++
- Development tools SDK package with build environment provided
USB
- Data rate USB 2.0
- Applications Samba share, USB-to-serial
- External devices Possibility to connect external HDD, flash drive, additional modem, printer
- Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
INPUT/OUTPUT
- Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
- Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
- Events Email, RMS
- I/O juggler Allows to set certain I/O conditions to initiate event
POWER
- Connector 4 pin industrial DC power socket
- Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
- PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af, 802.3at and 802.3bt standards
- Power consumption 6 W Max
PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS)

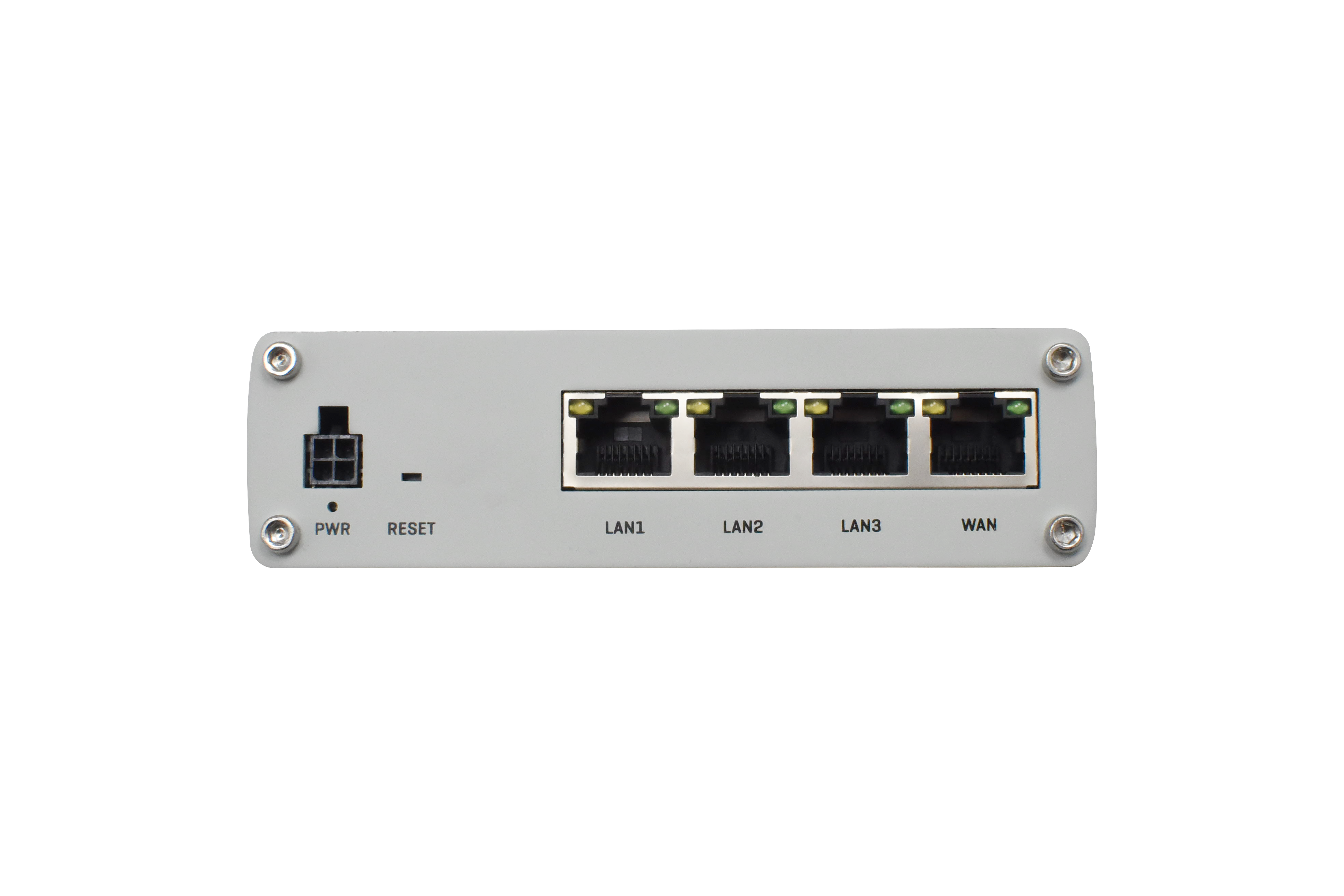

- Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
- I/Os 1 x Digital Input, 1 x Digital Output on 4 pin power connector
- Status LEDs 8 x LAN status LEDs, 1 x Power LED
- Power 1 x 4 pin DC connector

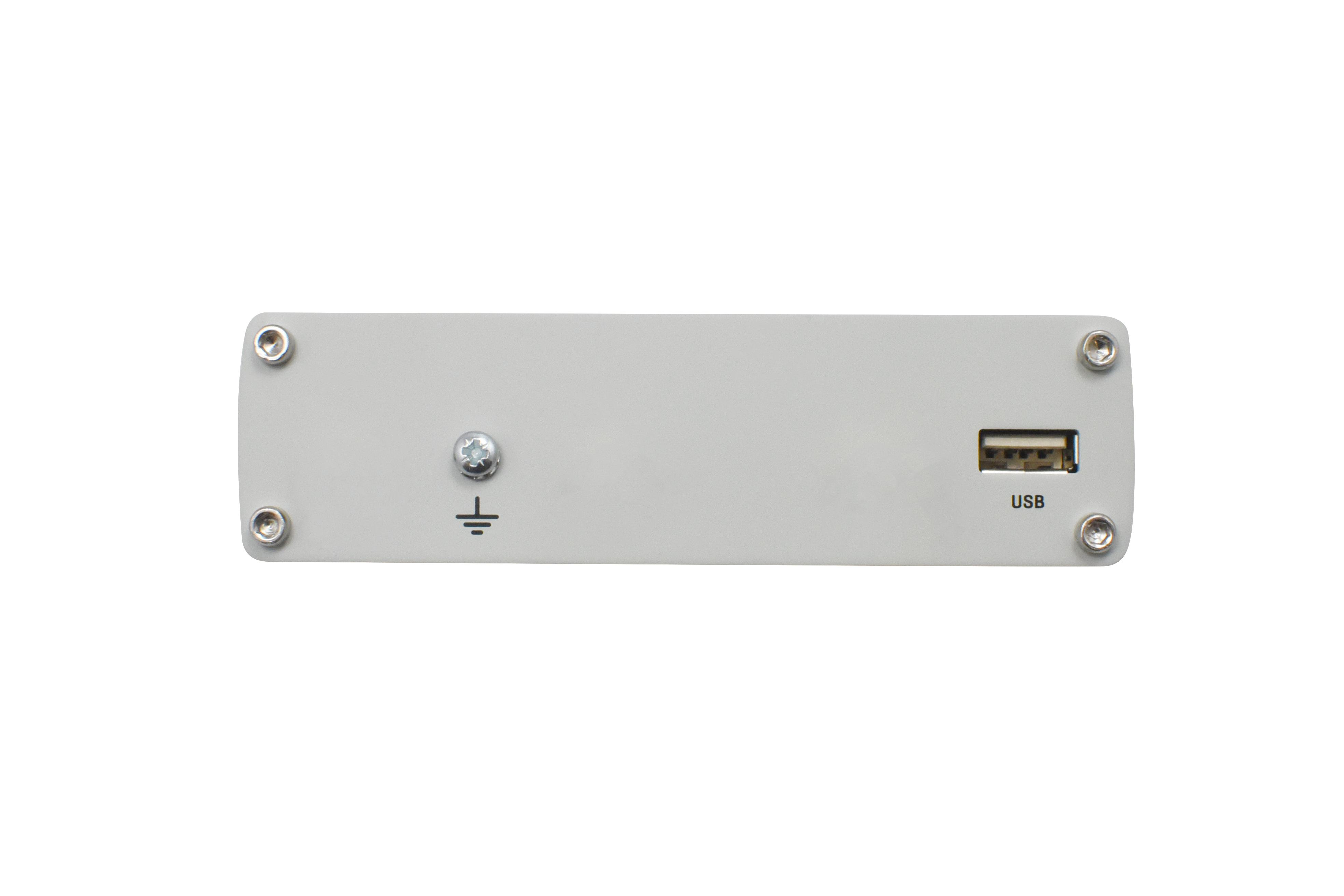

- USB 1 x USB A port for external devices
- Reset Reboot/User default reset/Factory reset button
- Other 1 x Grounding screw
PHYSICAL SPECIFICATION
- Casing material Aluminium housing with DIN tail mounting option
- Dimensions (W x H x D) 115 x 32.2 x 95.2 mm
- Weight 345 g
- Mounting options DIN rail, flat surface placement
- OPERATING ENVIRONMENT
- Operating temperature -40 C to 75 C
- Operating humidity 10 % to 90 % non-condensing
- Ingress Protection Rating IP30
- REGULATORY & TYPE APPROVALS
- Regulatory & Type Approvals CE, RoHS, REACH
EMI IMMUNITY
- Standards EN 55032:2015, EN 55035:2017
- ESD EN 61000-4-2:2009
- RS EN 61000-4-3:2006+A1:2008+A2:2010
- EFT EN 61000-4-4:2012
- Surge protection EN 61000-4-5:2014
- CS EN 61000-4-6:2014
- DIP EN 61000-4-11:2004
SAFETY
- Standards IEC 62368-1:2014 EN 62368-1:2014+A11:2017
