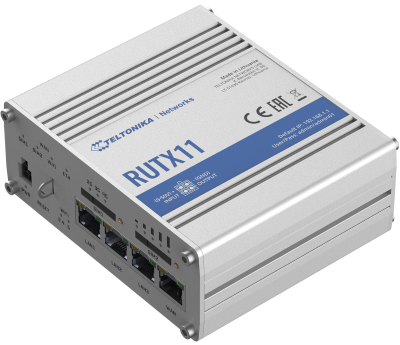

TELTONIKA RUTX11 LTE CAT6 Router

TeltonikaSKU: RUTX11

Price:
Sale priceN$7,642.26

Tax included

Stock:
Sold out
Write a review
| Ask a question

Description

RUTX11 is a very powerful device equipped with Dual-SIM with auto Failover, Backup WAN, and other SW features.

A wide range of internal hardware interfaces allows this product to be used in power-hungry industrial applications where speed and robustness are at the heart of the solution.

4G LTE – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows for a seamless data transfer experience with auto-failover and a backup WAN.

Bluetooth LE allows sensors to be connected directly to the router, thus minimizing the overall solution ecosystem.

More information can be obtained on Teltonika's website here

Specifications

MOBILE

Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge mode Direct connection (bridge) between mobile ISP and device on LAN

WIRELESS

Wireless mode 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
WiFi users up to 150 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

ETHERNET

WAN 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

BLUETOOTH

Bluetooth 4.0 Bluetooth low energy (LE) for short range communication

NETWORK

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol

SECURITY

Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
Mobile quota control Custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support

MODBUS

MODBUS TCP SLAVE
ID filtering Respond to one ID in range [1;255] or any
Allow remote access Allow access through WAN
Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality

MODBUS TCP MASTER

Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT GATEWAY

Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker

DNP3

Supported modes TCP Master, DNP3 Outstation
DATA TO SERVER
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis

MONITORING & MANAGEMENT

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)

IoT PLATFORMS

Clouds of things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

SYSTEM CHARACTERISTICS

CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash

FIRMWARE / CONFIGURATION

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided

LOCATION TRACKING

GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones
USB
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS

INPUT/OUTPUT

Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events SMS, Email, RMS

POWER

Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption 16 W Max

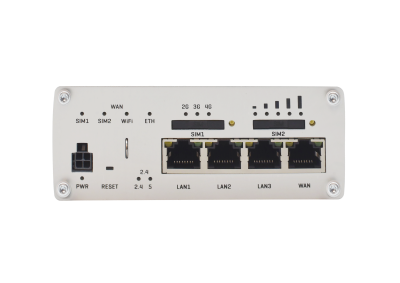

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 x Digital Input, 1 x Digital Output on 4 pin power connector
Status LEDs 4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G WiFi
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 1 x 4 pin DC connector

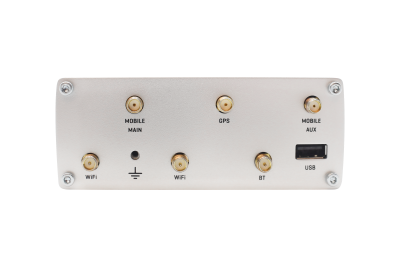

Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 115 x 44.2 x 95.1 mm
Weight 456 g
Mounting options DIN rail, flat surface placement

OPERATING ENVIRONMENT

Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
