DFROBOT Terminal Block Shield for Arduino Mega

DFRobotSKU: DFR0921

Price:
Sale priceN$1,025.84

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

Has it ever happened to you that you spent a lot of time ascertaining a problem when making projects and finally found out it was just caused by loose wiring? Then, what you may need is a terminal block shield like this!

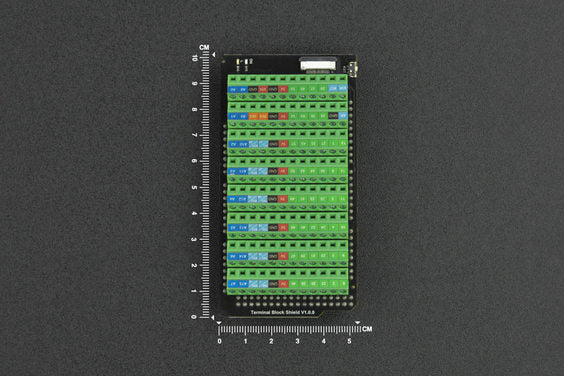

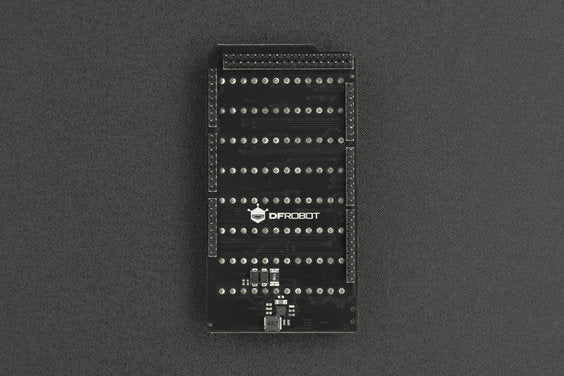

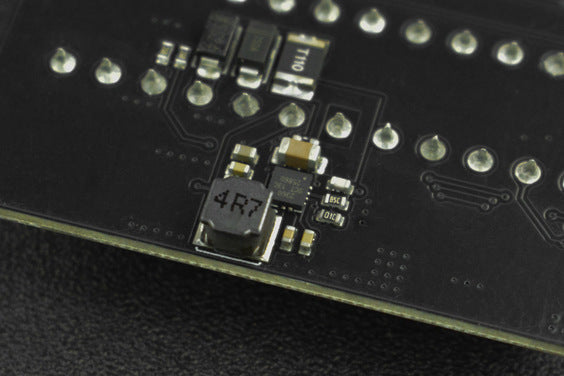

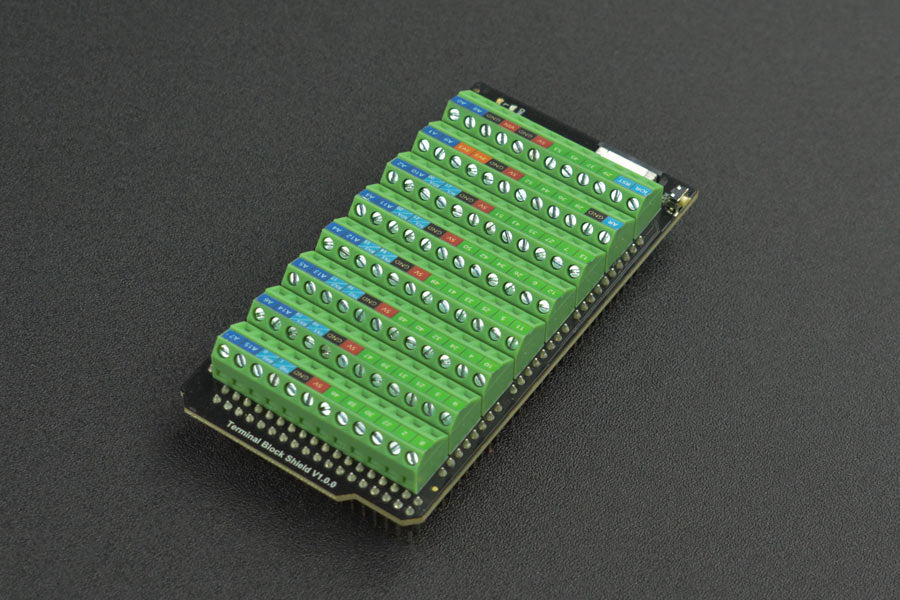

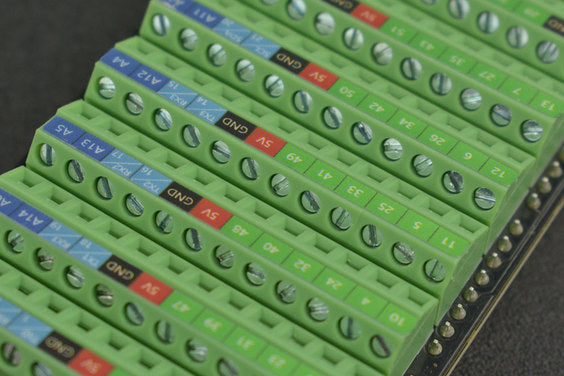

The shield adopts terminal blocks to secure wires so as to make connections stable and reliable. And multiple 3.3V, 5V, and GND ports are provided for easy wiring. It can be powered by 7~24V voltage without an additional buck-down circuit. The onboard 18pin-FPC socket makes it convenient for connecting a screen.

GDI 18pin-FPC

FPC PINS

Mega PINS

Description

VCC

 5V

 5V

BLK

 D7

 Backlight

GND

 GND

 GND

SCLK

 D52

 SPI clock

MOSI

 D51

 Host output, slave input

MISO

 D50

 Host input, slave output

DC

 D2

 Data/command

RES

 D4

 Reset

CS

 D3

 TFT Chip Select

SDCS

 D6

 SD card Chip Select

FCS

 D25

 Font library Chip Select

TCS

 D5

 Touch Chip Select

SCL

 SCL

 I2C clock

SDA

 SDA

 I2C data

INT

 D19

 INT

BUSY-TE

 D24

 Ripstop pins

X1

 D23

 custom pin 1

X2

 D22

 custom pin 2

Features

Stable and reliable connection Easy wiring


Applications

Commercial Project Art Show


Specifications

VIN Input Voltage: 7-24V DCMax Load Power: 10WTerminal Block Pitch: 3.5mmCable Size Range: 26AWG-16AWGWire Strip Length: 5mmScrew: M2Dimension: 101.5 *53.3 mm/4.00*2.10”
