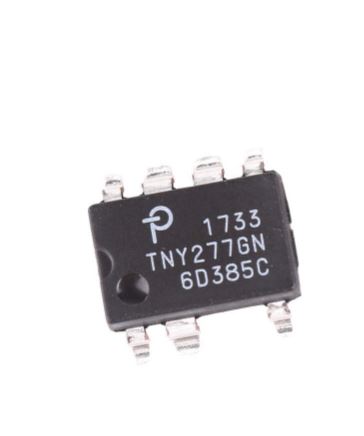

DIY ELECTRONICS TinySwitch-III Intelligent Power Switch
Roll over image to zoom in Click on image to zoom
DIY ELECTRONICS TinySwitch-III Intelligent Power Switch

DIY ELECTRONICS TinySwitch-III Intelligent Power Switch

Save N$29.59
DIY ElectronicsSKU: 9ICTNY277GN
Price:
N$9.86 N$39.45

Tax included

Stock:
In stock
Write a review
| Ask a question

Description

 The Tinyswitch is a great IC to use for building your own PSU. Please see the documentation for more information

Specifications

  • DRAIN Voltage

– -0.3V to +700V
  • DRAIN Peak Current (Voltage ≥400V)

– 880mA
  • DRAIN Peak Current (Voltage <400V)

– 1650mA
  • EN/UV Voltage

– -0.3V to +9V
  • EN/UV Current

– 100mA
  • BP/M Voltage

– -0.3V to +9V
  • Operating Junction Temperature

– -40° to +150°C
  • ON-State Resistance: RDS(ON) (@25°C)

– 7.8Ω to 9Ω @ 25°C
  • ON-State Resistance: RDS(ON) (@25°C)

– 11.7Ω to 13.5Ω @ 100°C
  • OFF-State Drain Leakage Current

– 100μA
  • Breakdown Voltage

– 700V
  • DRAIN Supply Voltage

– 50V
  • IC Package Type

– SMD-8C

Documents
