Description

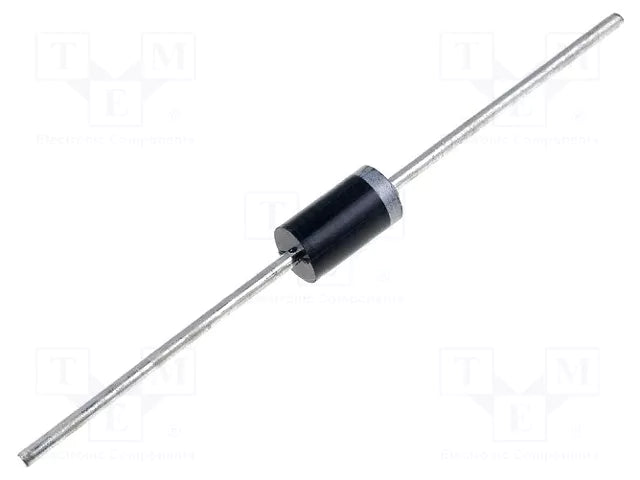

Standard Recovery Rectifier, 1kV, 3.0 A
Features
- • High Current to Small Size
• High Surge Current Capability
• Low Forward Voltage Drop
• Void−Free Economical Plastic Package
• Available in Volume Quantities
• Plastic Meets UL 94 V−0 for Flammability
• These are Pb−Free Devices
Mechanical Characteristics:
• Case: Epoxy, Molded
• Weight: 1.1 Gram (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
• Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
• Polarity: Cathode Indicated by Polarity Band
Specifications
- Max. off-state voltage: 1kV
- Load Current: 3A
- Max. forward impulse current: 200A
- Max. forward voltage: 1V
- Leakage current: 5µA
