Description

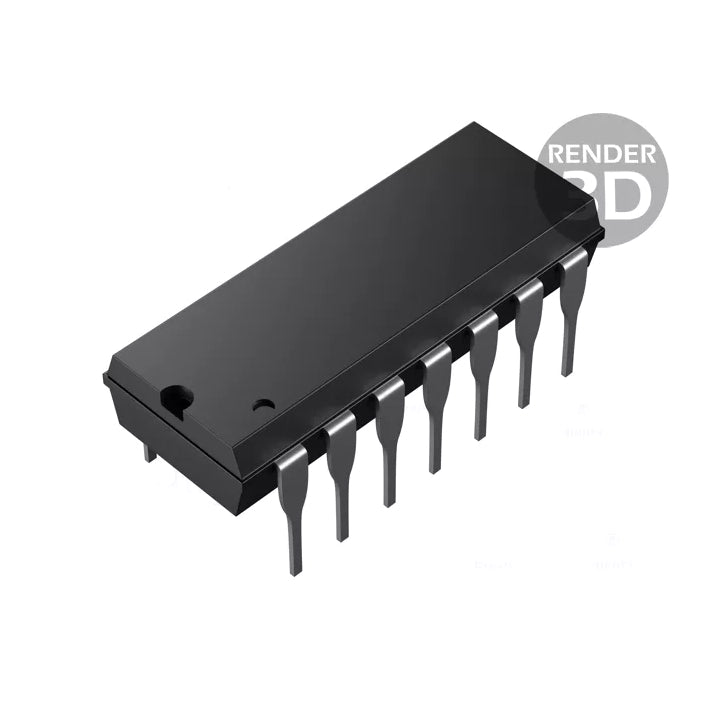

The TME 74LS08 is a quadruple 2-input AND gate IC built using low-power Schottky (LS) logic. Housed in a DIP-14 through-hole package, it features four independent logic gates that perform the Boolean AND function, making it an essential building block for digital logic circuits.
With TTL-compatible inputs, fast switching times, and low power consumption, the 74LS08 is widely used in control systems, signal processing, and digital logic designs.
Specifications:
- Logic Type: Quad 2-input AND Gate
- Logic Family: 74LS (Low Power Schottky TTL)
- Number of Gates: 4
- Inputs per Gate: 2
- Package: DIP-14 (Through-Hole)
- Supply Voltage (Vcc): 4.75V to 5.25V
- High-Speed TTL Compatibility
Find datasheet here.
