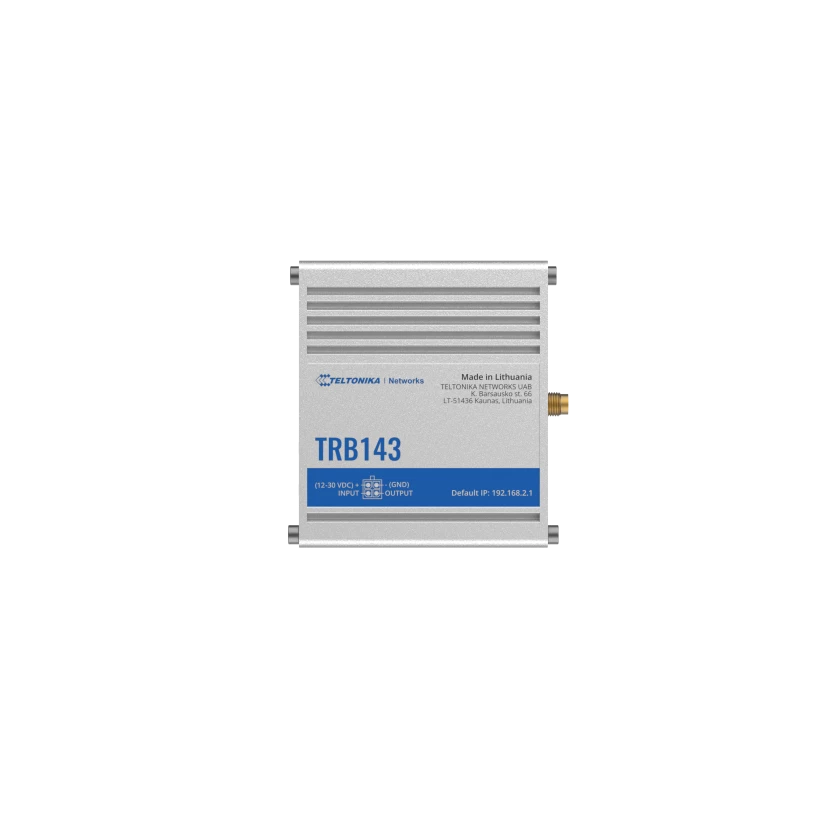

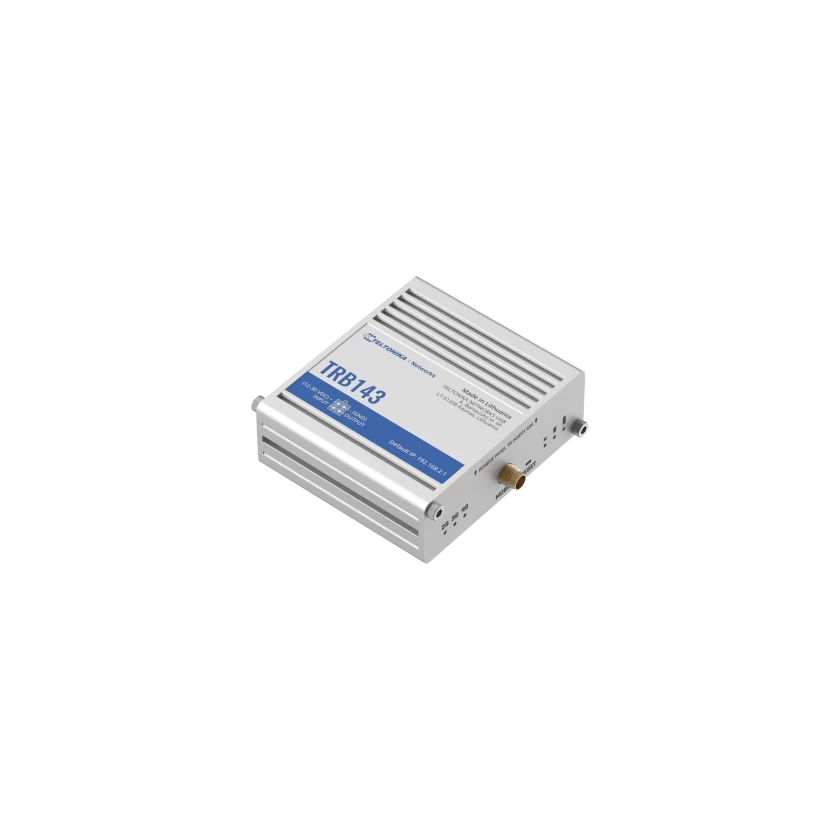

TELTONIKA TRB143 LTE Cat 4 Ethernet Gateway

MOBILE

• Mobile module

  4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps

• Status

  Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

• SMS

  SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD

  Supports sending and reading Unstructured Supplementary Service Data messages

• Black/White list

  Operator black/white list

• Multiple PDN

  Possibility to use different PDNs for multiple network access and services

• Band management

  Band lock, Used band status display

• APN

  Auto APN

• Bridge

  Direct connection (bridge) between mobile ISP and device on LAN

• Passthrough

  Router assigns its mobile WAN IP address to another device on LAN

ETHERNET

• LAN

  1 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

• Routing

  Static routing

• Network protocols

  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

• VoIP passthrough support

  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring

  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall

  Port forward, traffic rules, custom rules

• DHCP

  Static and dynamic IP allocation, DHCP Relay

• QoS / Smart Queue Management (SQM)

  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS

  Supported >25 service providers, others can be configured manually

• Network backup

  VRRP, Wired options, each of which can be used as an automatic Failover, Mobile

• Load balancing

  Balance Internet traffic over multiple WAN connections

• SSHFS

  Possibility to mount remote file system via SSH protocol

SECURITY

• Authentication

  Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

• Firewall

  Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

• Attack prevention

  DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN

  Port and tag-based VLAN separation

• Mobile quota control

  Mobile data limit, customizable period, start time, warning limit, phone number

• WEB filter

  Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control

  Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN

  Multiple clients and a server can run simultaneously, 27 encryption methods

• OpenVPN Encryption

  DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

  BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

• IPsec

  IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

• GRE

  GRE tunnel, GRE tunnel over IPsec support

• PPTP, L2TP

  Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

• Stunnel

  Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

• DMVPN

  Method of building scalable IPsec VPNs

• SSTP

  SSTP client instance support

• ZeroTier

  ZeroTier VPN client support

• WireGuard

  WireGuard VPN client and server support

• Tinc

  Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

MODBUS TCP SLAVE

• ID range

  Respond to one ID in range [1;255] or any

• Allow Remote Access

  Allow access through WAN

• Custom registers

  MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER

• Supported functions

  01, 02, 03, 04, 05, 06, 15, 16

• Supported data formats

  8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MBUS

• Protocol Support

  The M-Bus interface can support up to 250 slave devices and can power up to 6 slave devices.

DATA TO SERVER

• Protocol

  HTTP(S), MQTT, Azure MQTT, Kinesis

MQTT GATEWAY

• MQTT Gateway

  Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

• Supported modes

  TCP Master, DNP3 Outstation

MONITORING & MANAGEMENT

• WEB UI

  HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

• FOTA

  Firmware update from server, automatic notification

• SSH

  SSH (v1, v2)

• SMS

  SMS status, SMS configuration, send/read SMS via HTTP POST/GET

• Call

  Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer

• TR-069

  OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

• MQTT

  MQTT Broker, MQTT publisher

• SNMP

  SNMP (v1, v2, v3), SNMP Trap

• JSON-RPC

  Management API over HTTP/HTTPS

• MODBUS

  MODBUS TCP status/control

• RMS

  Teltonika Remote Management System (RMS)

IOT PLATFORMS

• Cloud of Things

  Allows monitoring of: Device data, Mobile data, Network info, Availability

• ThingWorx

  Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

• Cumulocity

  Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

• Azure IoT Hub

  Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

• CPU

• ARM Cortex-A7 1.3 GHz
• RAM

• 256 MB, DDR3
• FLASH storage

• 512 MB, SPI Flash

FIRMWARE / CONFIGURATION

• WEB UI

• Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA

• Update FW
• RMS

• Update FW/configuration for multiple devices at once
• Keep settings

• Update FW without losing current configuration

FIRMWARE CUSTOMISATION

• Operating system

• RutOS (OpenWrt based Linux OS)
• Supported languages

• Busybox shell, Lua, C, C++
• Development tools

• SDK package with build environment provided

INPUT / OUTPUT

• Input

• 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output

• 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events

• Email, RMS, SMS
• I/O juggler

• Allows to set certain I/O conditions to initiate event

POWER

• Connector

• 4-pin industrial DC power socket
• Input voltage range

• 12 – 30 VDC
• PoE (passive)

• Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 12 - 30 VDC
• Power consumption

• Idle: 3 W, Max: 6 W

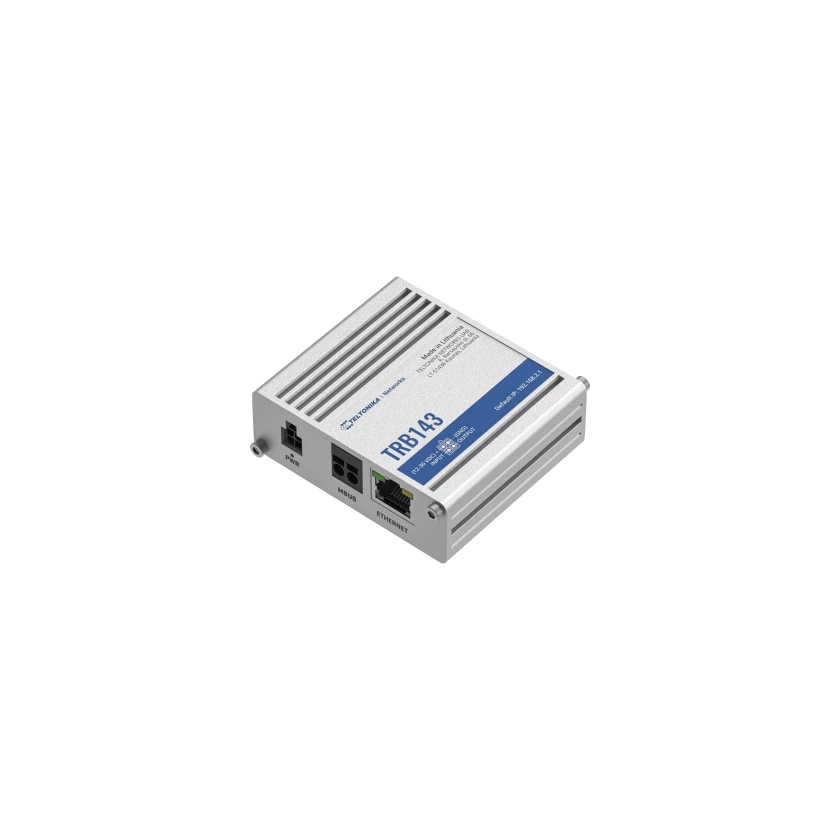

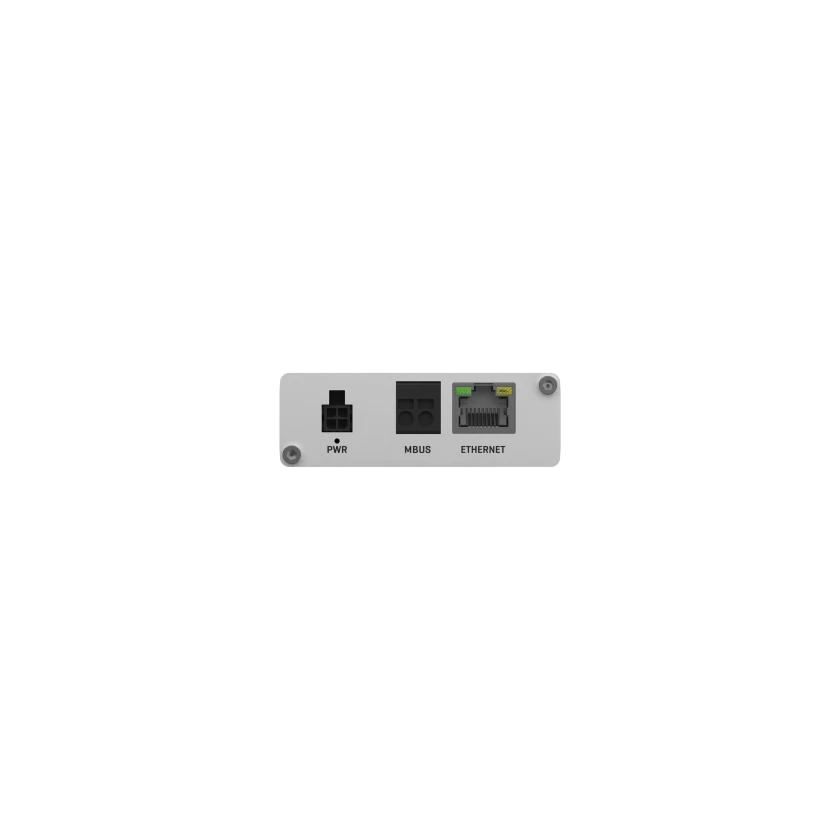

PHYSICAL INTERFACES

• Ethernet

• 1 x RJ45 port, 10/100/1000 Mbps
• I/O’s

• 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs

• 3 x connection type status LEDs, 3 x connection strength LEDs, 1x Power LED
• SIM

• 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
• Power

• 1 x 4-pin power connector

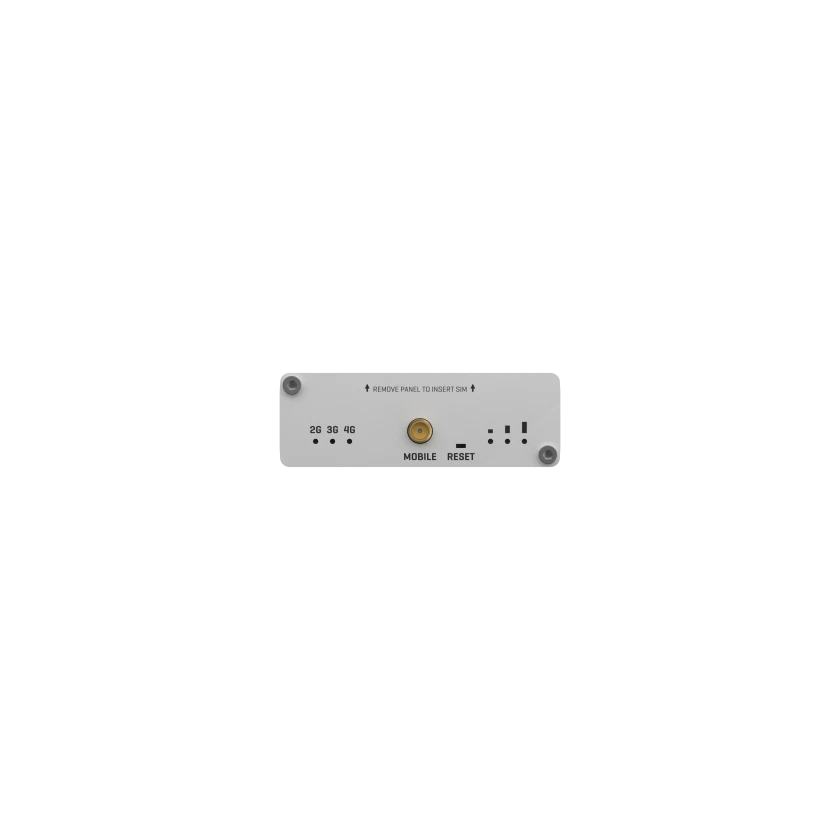

• Antennas

• 1 x SMA for LTE
• Reset

• Reboot/User default reset/Factory reset button
• Mbus

• 1 x M-Bus Interface

PHYSICAL SPECIFICATION

• Casing material

• Aluminum housing
• Dimensions (W x H x D)

• 74.5 x 25 x 73 mm
• Weight

• 145 g
• Mounting options

• DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

• Operating temperature

• -40 °C to 75 °C
• Operating humidity

• 10% to 90% non-condensing
• Ingress Protection Rating

• IP30

REGULATORY & TYPE APPROVALS

• Regulatory


•

  CB, CE, UKCA, RoHS, REACH, WEEE

EMC EMISSIONS & IMMUNITY

• ESD

• EN 61000-4-2:2009
• RS

• EN 61000-4-3:2006 + A1:2008 + A2:2010
• EFT

• EN 61000-4-4:2012
