Description

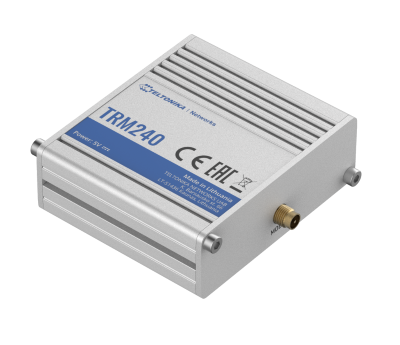

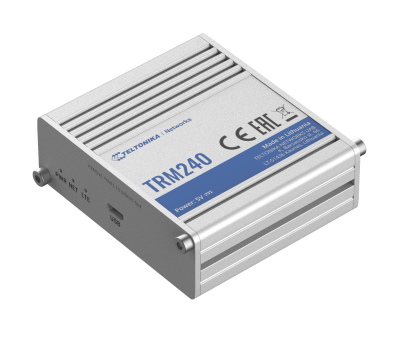

Industrial grade cellular LTE Cat 1 modem with rugged aluminium housing is a compact and easy to use connectivity device that can provide cellular capabilities to equipment across all market segments.
Industrial grade cellular LTE Cat 1 modem with rugged aluminium housing is a compact and easy to use connectivity device that can provide cellular capabilities to equipment across all market segments.
TRM240 comes with a USB interface for power and communication.
More information can be obtained on Teltonika's website here
Specifications
HARDWARE |
|
|
Mobile |
LTE (Cat1) / 3G / 2G |
|
SIM slot |
Mini SIM (2FF) |
|
Antenna connector |
1 x SMA for LTE |
|
Operating Voltage |
5V - powered via microUSB |
|
Power consumption |
3.2 W Max |
|
Configuration interface |
microUSB |
|
LED indicators |
Power, Network and LTE status LEDs |
|
Operating temperature |
-40 °C to 75 °C |
|
Operating humidity |
10 % to 90 % non-condensing |
|
Casing material |
Aluminium housing |
|
Ingress Protection Rating |
IP30 |
|
Dimensions (W x H x D) |
74.5 x 25 x 64.5 mm |
|
Weight |
131 g |
SOFTWARE |
|
|
Management software |
Windows Connection Manager (NDIS driver) |
|
USB Serial Driver |
Windows 7/8/8.1/10, |
|
RIL Driver |
Android 4.x/5.x/6.x/7.x/8.x |
|
NDIS Driver |
Windows 7/8/8.1/10 |
|
Gobinet Driver |
Linux 2.6/3.x/4.1~4.14 |
|
Linux qmi wwan Driver |
3.x (3.4 and later)/4.1~4.14 |
|
Protocols |
TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL |
INTERFACES |
|
|
Management interface |
AT Commands (3GPP TS27.007, 3GPP TS27.005) |
