Description

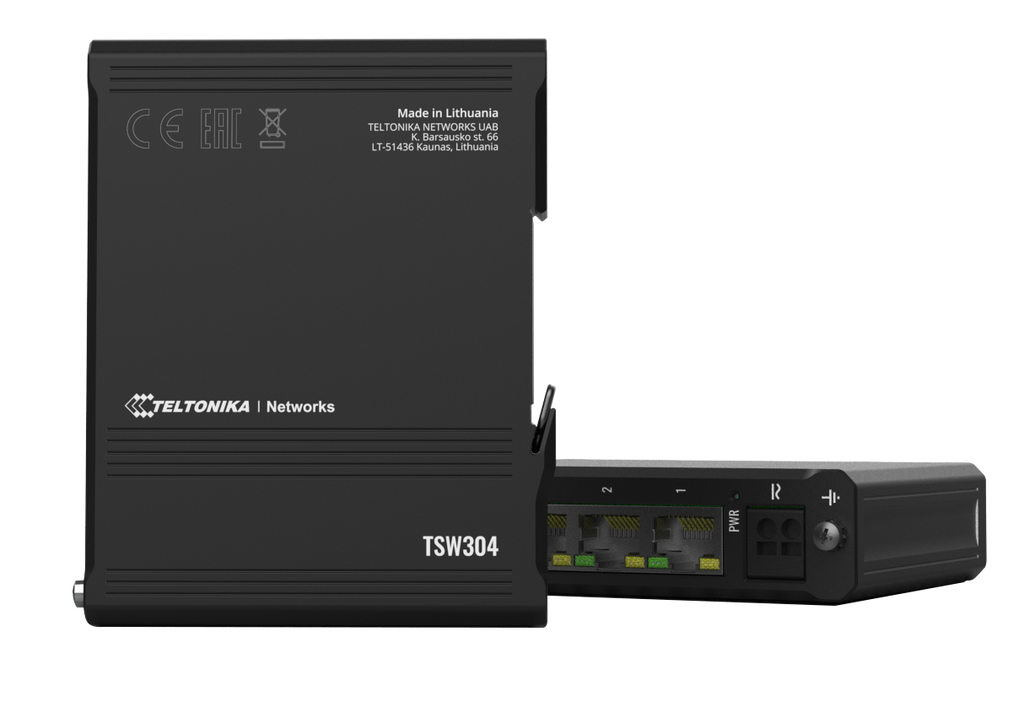

TSW304 is Teltonika Networks’ first unmanaged switch with an integrated, built-in DIN rail mount.
Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards.

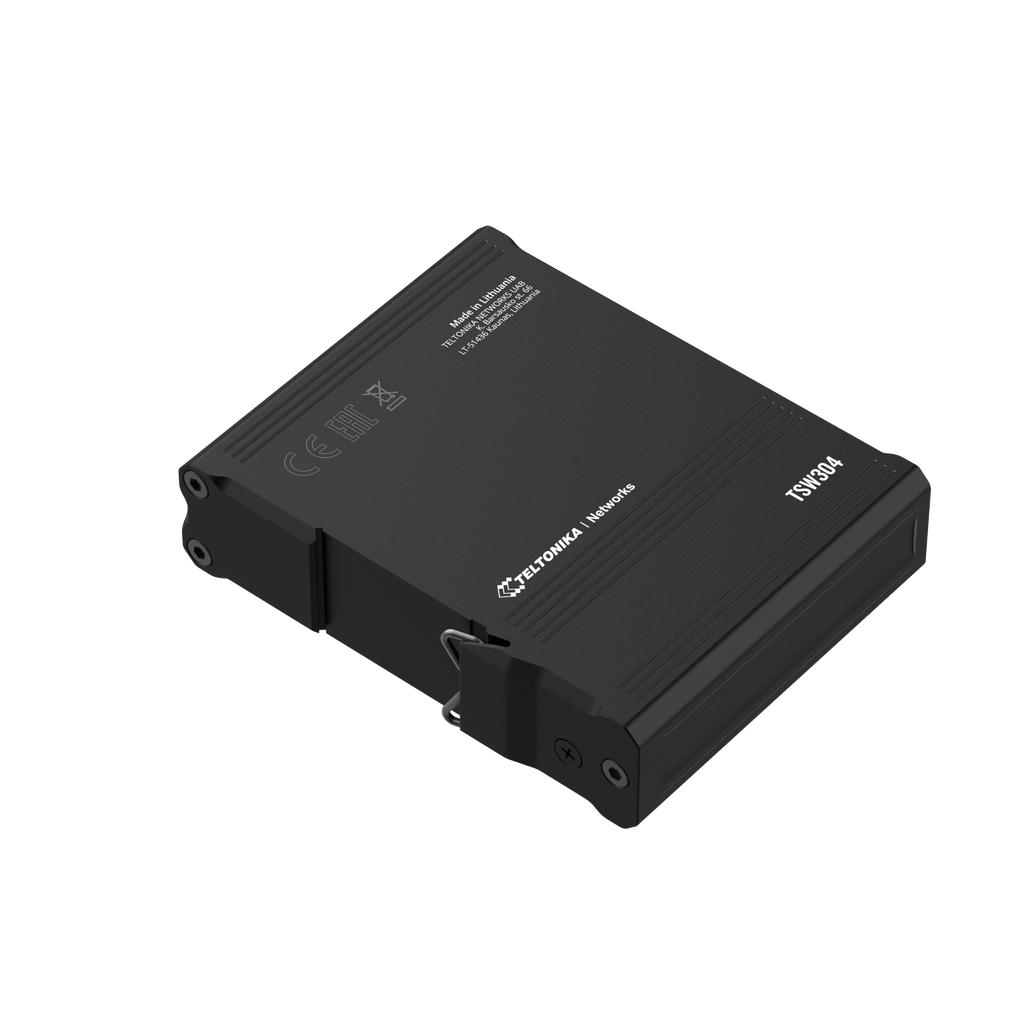

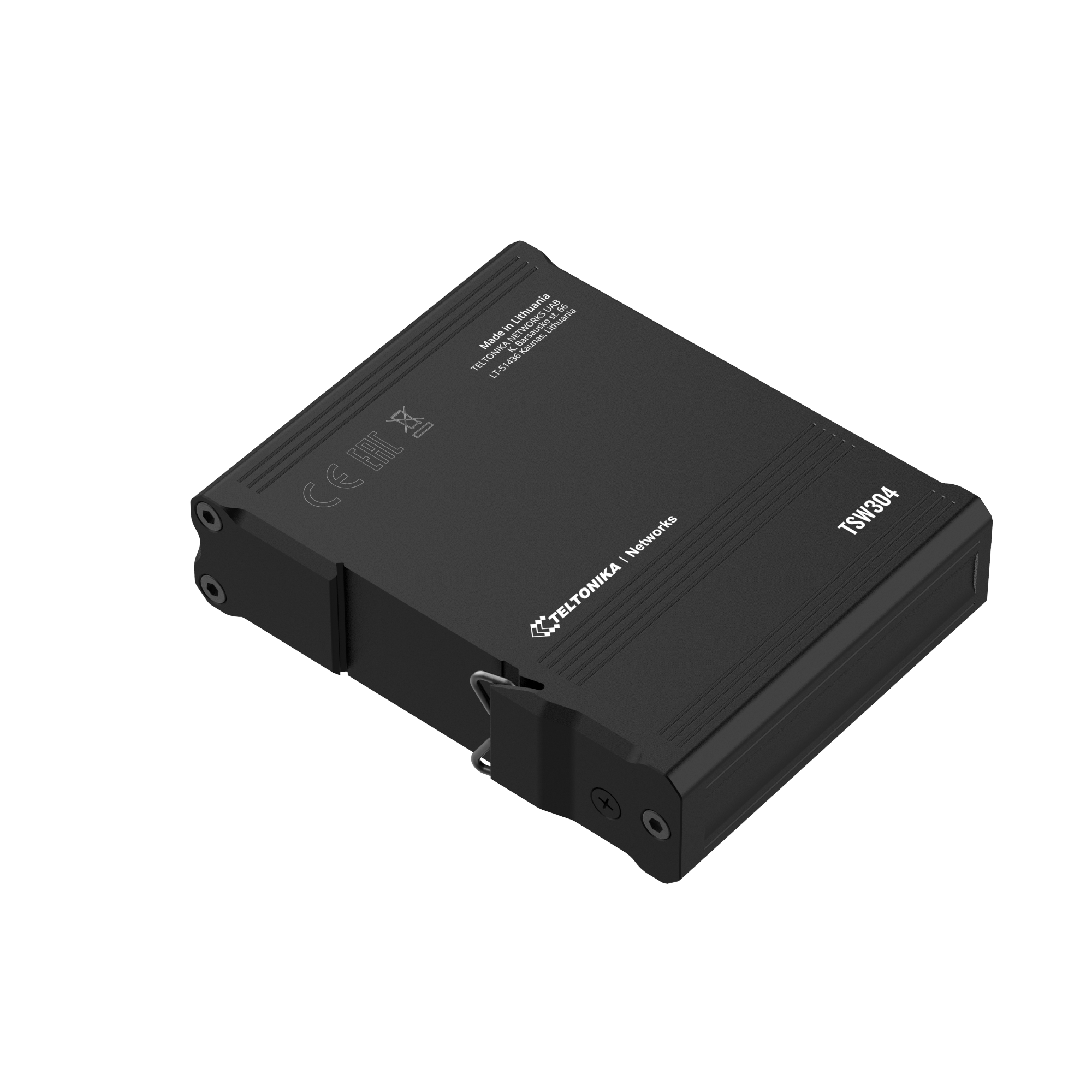

Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount.
10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput.
2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).
INTERFACES
- Ethernet 4 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- PERFORMANCE SPECIFICATIONS
- Bandwidth (Non-blocking) 8 Gbps
- Packet buffer 128 KB
- MAC address table size 2K entries
- Jumbo frame support 9216 bytes
POWER
- Connector 2-pin power socket
- Input voltage range 7 - 57 VDC; 9 - 40 VAC
- PoE (passive) Passive PoE. Possibility to power up through first LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
- Power consumption Idle: 0.26 W / Max: 1.44 W

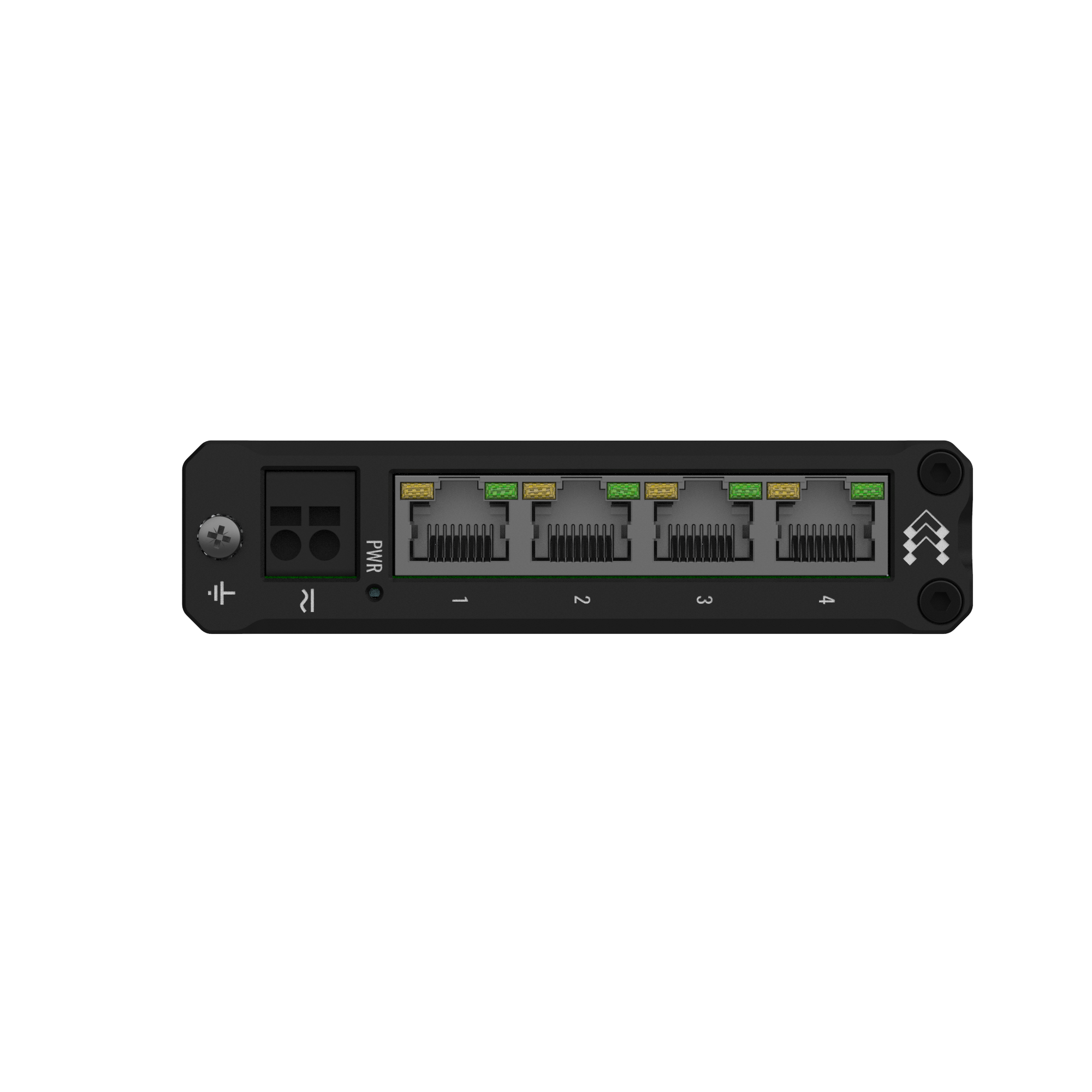

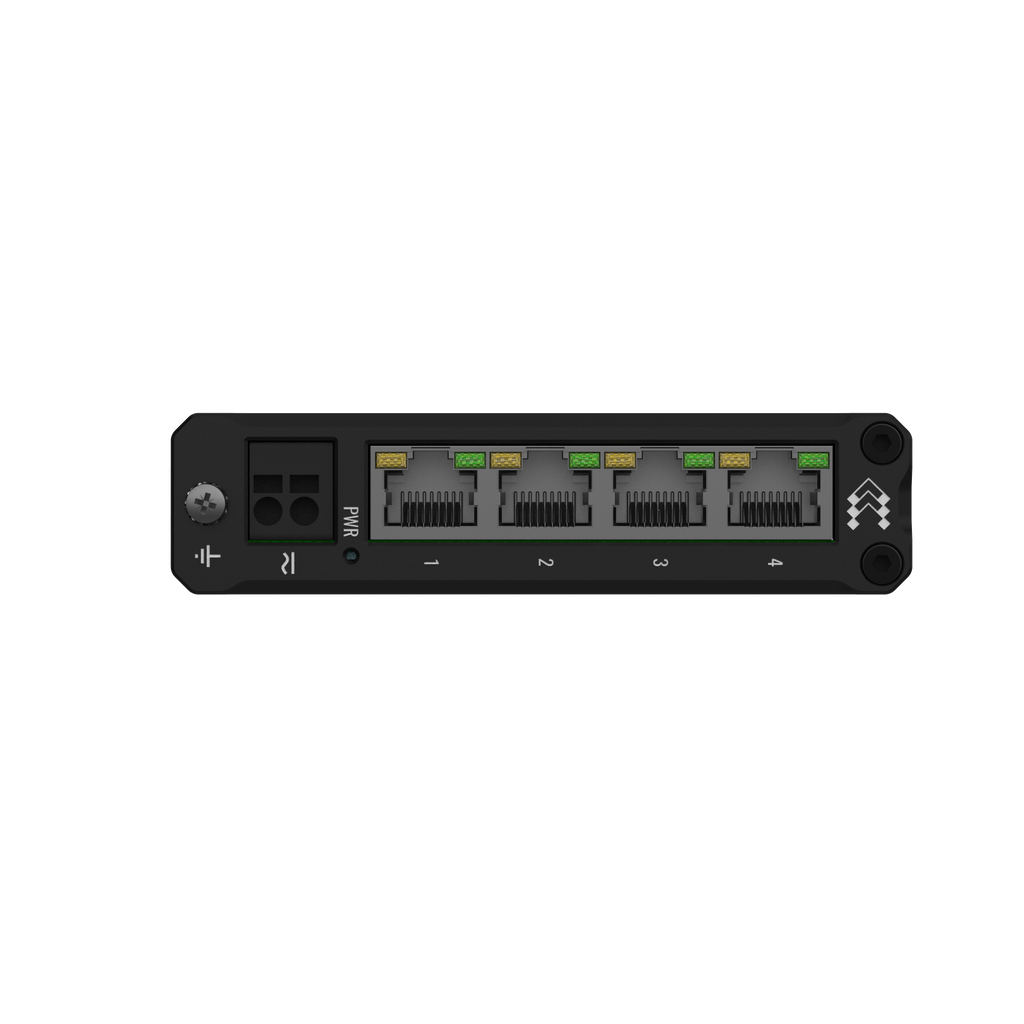

PHYSICAL INTERFACES (PORTS, LEDS)
- Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
- Status LEDs 1 x Power LED, 8 x LAN status LEDs
- Power 1 x 2-pin power socket
- Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
- Casing material Anodized aluminum housing and panels
- Dimensions (W x H x D) 102x25x81.5 mm
- Weight 210 g

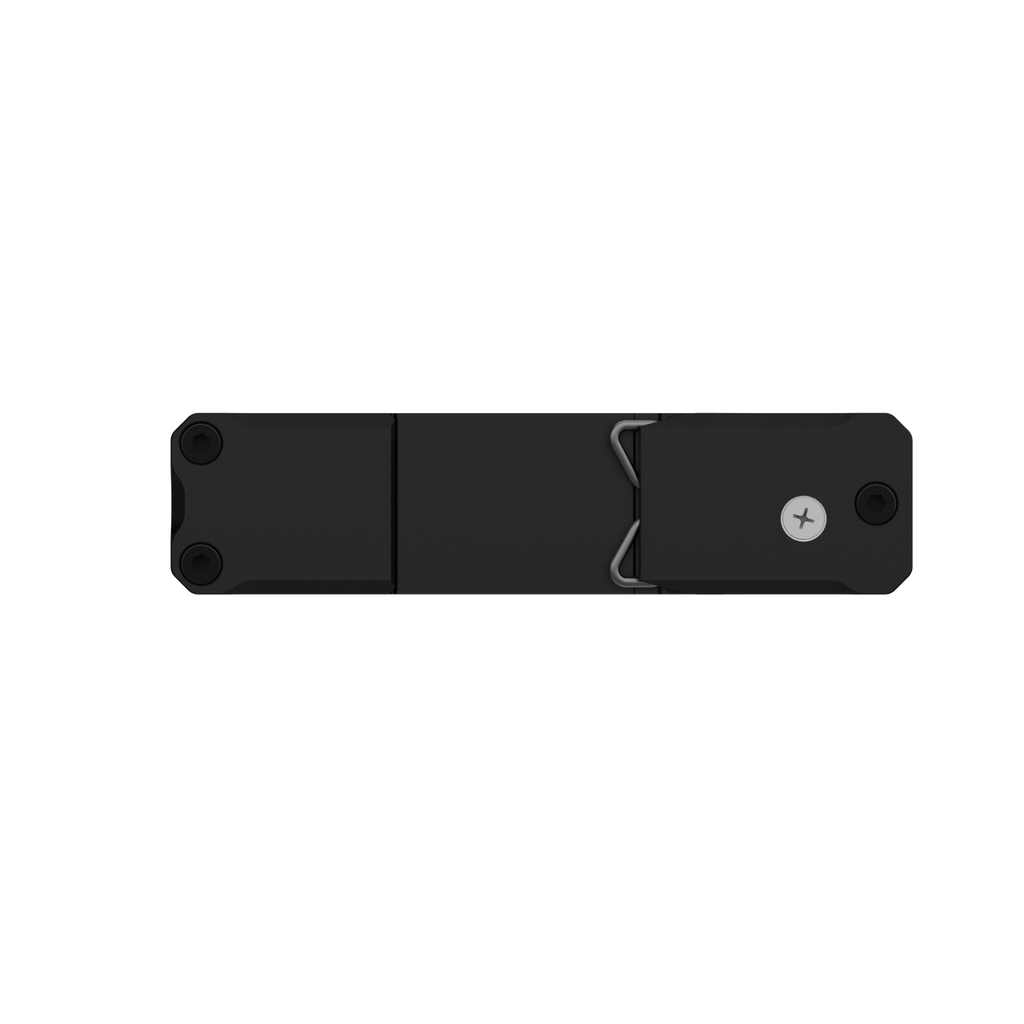

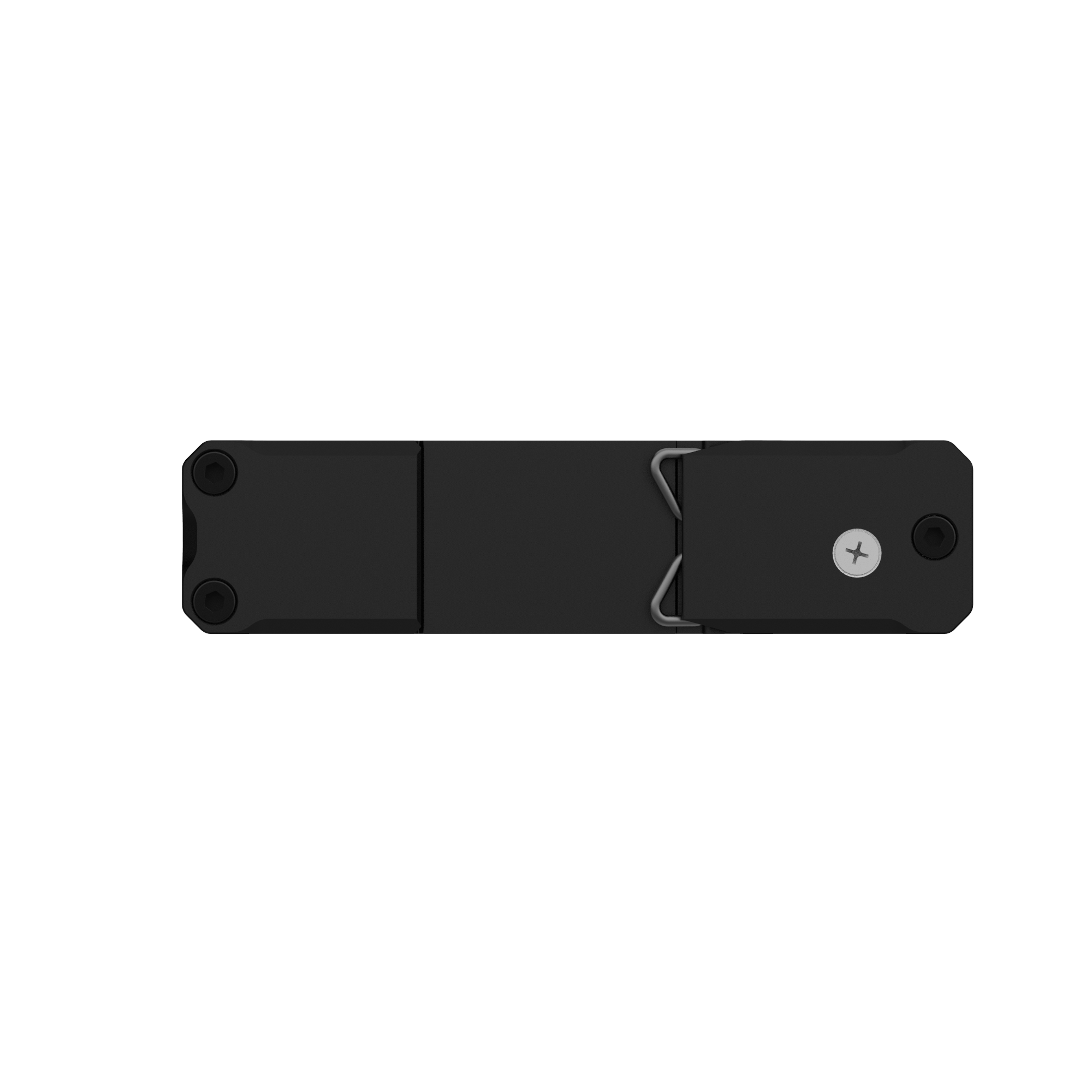

- Mounting options Integrated DIN rail bracket, flat surface placement
OPERATING ENVIRONMENT
- Operating temperature -40 C to 75 C
- Operating humidity 10 % to 90 % non-condensing
- Ingress Protection Rating IP30
- REGULATORY & TYPE APPROVALS
- Regulatory CE, REACH, RoHS, WEEE
- TSW304 UKCA, FCC, IC, CB, RCM
SAFETY
- Standards EN IEC 62368-1:2020+A11:2020
