Description

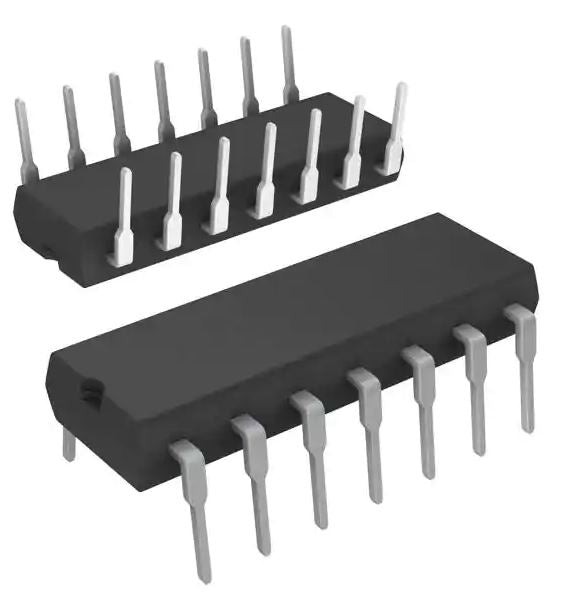

UA747CN General Purpose Amplifier 2 Circuit 14-PDIP
Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Part Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1MHz |
| Current - Input Bias | 80nA |
| Voltage - Input Offset | 1mV |
| Current - Supply | 1.7mA |
| Current - Output / Channel | 25mA |
| Voltage - Supply, Single/Dual (±) | 7V ~ 36V, ±3.5V ~ 18V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |
| Base Part Number | UA747 |
