Description

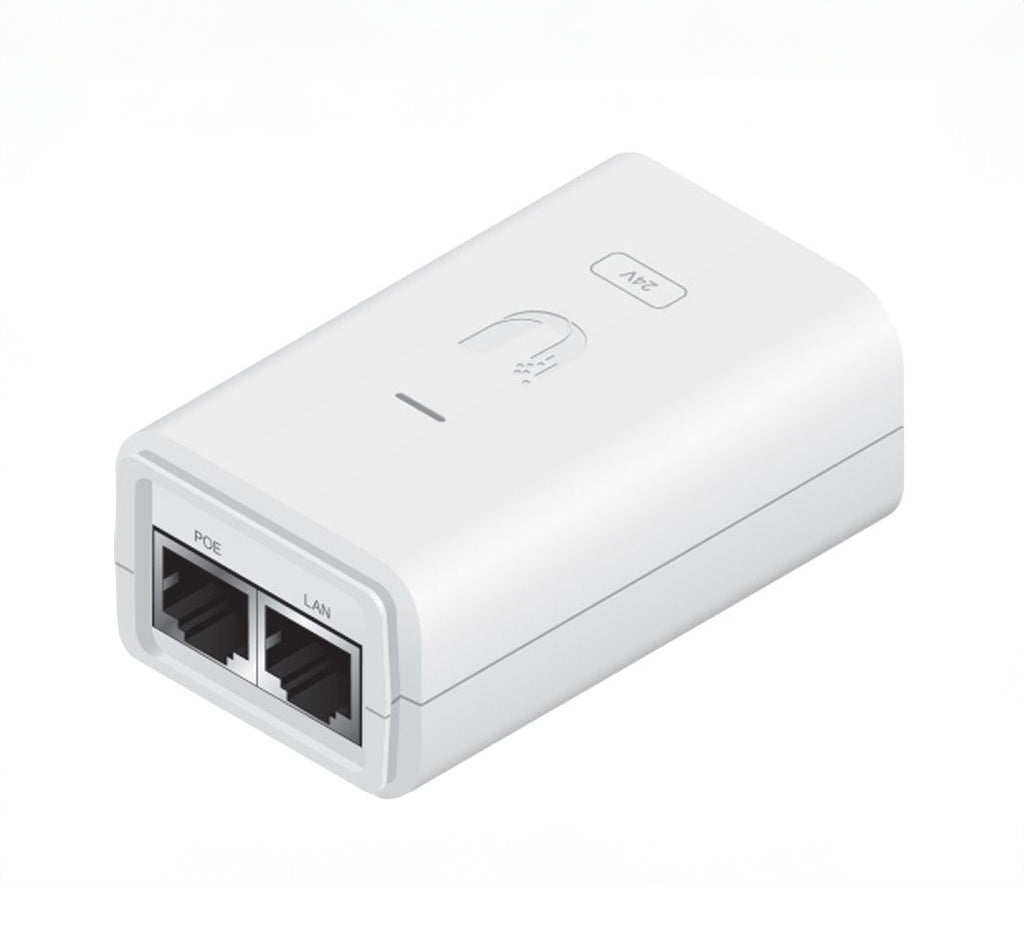

The UBIQUITI 24 V 24 W Gigabit PoE Adapter powers compatible passive-PoE network equipment through its Ethernet cable. It is useful when installing a supported Ubiquiti radio, access point or other 24 V passive-PoE device away from a nearby power socket.
This adapter provides 24 V DC at up to 1 A and includes Gigabit data connections. Passive PoE applies voltage without standards-based negotiation, so check that the connected device specifically supports 24 V passive PoE. An AC power cable is not included; add the Dedicated 3 pin to Clover Cable to complete the mains connection.
Why you’ll love it
- Power and data together: Sends 24 V passive PoE power over the Ethernet cable to a compatible device.
- Gigabit connectivity: Preserves Gigabit Ethernet operation between the LAN and PoE ports.
- Wide AC input: Accepts 100–240 V AC for use with a suitable local power lead.
- Clear package contents: The adapter is supplied without an AC power cable.
Technical specifications
- Output: 24 V DC, 1 A, 24 W passive PoE
- AC input: 100–240 V AC, 50/60 Hz
- Network ports: Gigabit LAN and Gigabit PoE
- Dimensions: 88 × 57 × 33 mm
- Compatibility: Devices specifically designed for 24 V passive PoE
- Included: PoE adapter
- Not included: AC power cable
