Description
The UBIQUITI UISP airMAX NanoStation 5AC Loco is a compact directional 5 GHz outdoor radio for wireless point-to-point and point-to-multipoint connections. Its 13 dBi antenna and wide 45° beam make it useful for local links and customer-premises installations where a network cable cannot cover the full distance.
A dedicated 2.4 GHz management radio supports setup nearby, while the Gigabit Ethernet port carries network traffic and passive-PoE power. The required 24 V passive-PoE adapter is not included. For a compatible power option, add the UBIQUITI Gigabit PoE Adapter 24 V 12 W together with the SC014/POWU 3-pin-to-clover power cable. Both items are sold separately. A complete point-to-point link normally needs a compatible radio at the other end.
Why you’ll love it
- Compact outdoor radio: Fits installations where a smaller directional unit is preferred.
- 13 dBi directional antenna: Focuses the 5 GHz connection across the intended link.
- Convenient setup: A separate 2.4 GHz management radio supports nearby configuration.
- Clear power requirement: Uses 24 V passive PoE; the required adapter is sold separately.
Technical specifications
- Model: Loco5AC
- Radio band: 5 GHz with separate 2.4 GHz management radio
- Antenna gain: 13 dBi
- Beamwidth: 45°

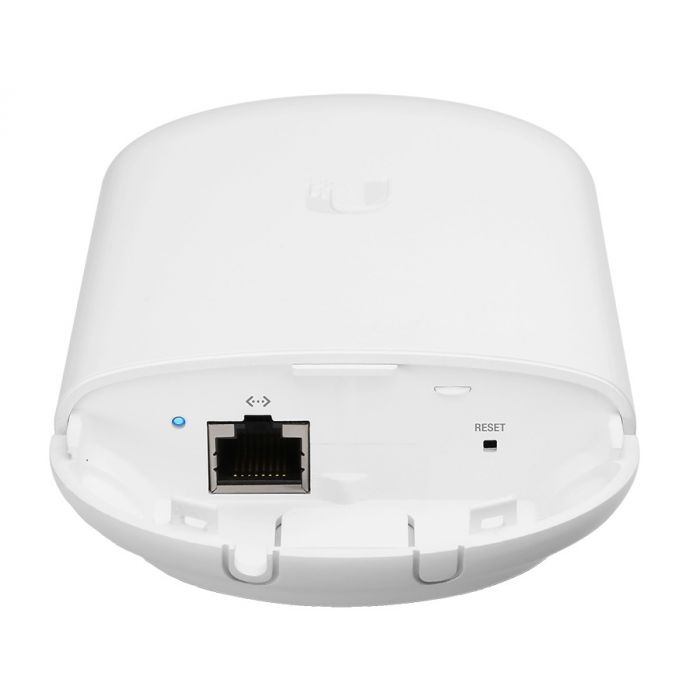

- Networking: 1 × Gigabit Ethernet RJ45 port
- Power: 24 V passive PoE; adapter not included
- Supported voltage: 22–27 V DC
- Maximum power consumption: 7 W
- Dimensions: 179 × 77.5 × 59.1 mm
- Operating temperature: -40 to 70 °C

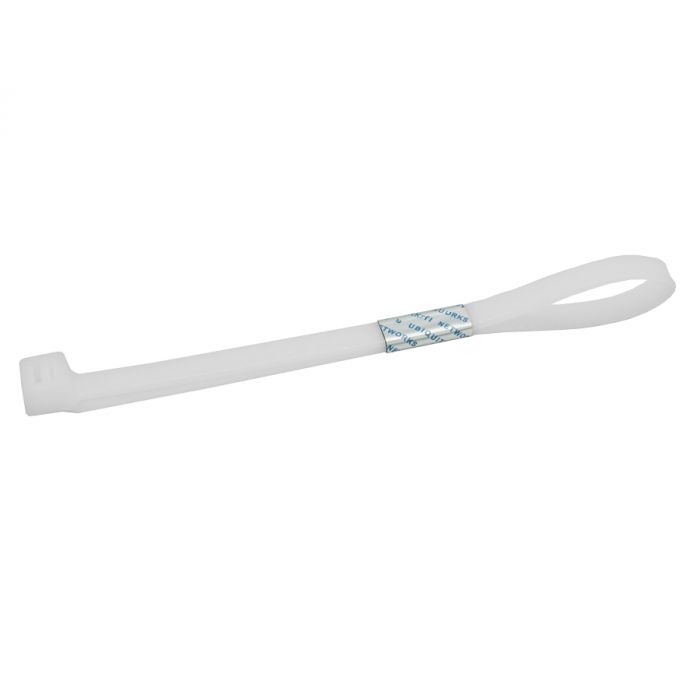

- Mounting: Pole mount included
