Description

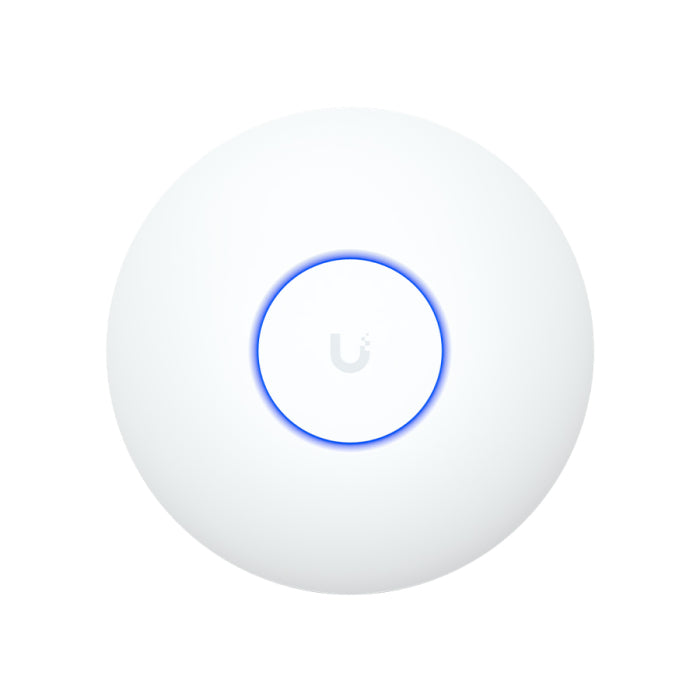

The Ubiquiti UniFi U7-Lite is a dual-band WiFi 7 access point designed to deliver high-performance wireless connectivity for homes, offices, retail stores, and business environments. Featuring high-gain integrated antennas and 1x 2.5Gbps Ethernet port, the U7-Lite provides an aggregate wireless throughput of up to 5Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands, ensuring fast and reliable network performance for modern devices.
It can be configured and managed with the UniFi Network Application. Its compact design supports both ceiling and wall mounting for flexible installation options.
Specifications
- Antenna Gain: 2.4GHz: 4dBi; 5GHz: 5dBi
- Beam Width: 360°
- Data Rate: 2.4GHz up to 688Mbps; 5GHz up to 4.3Gbps

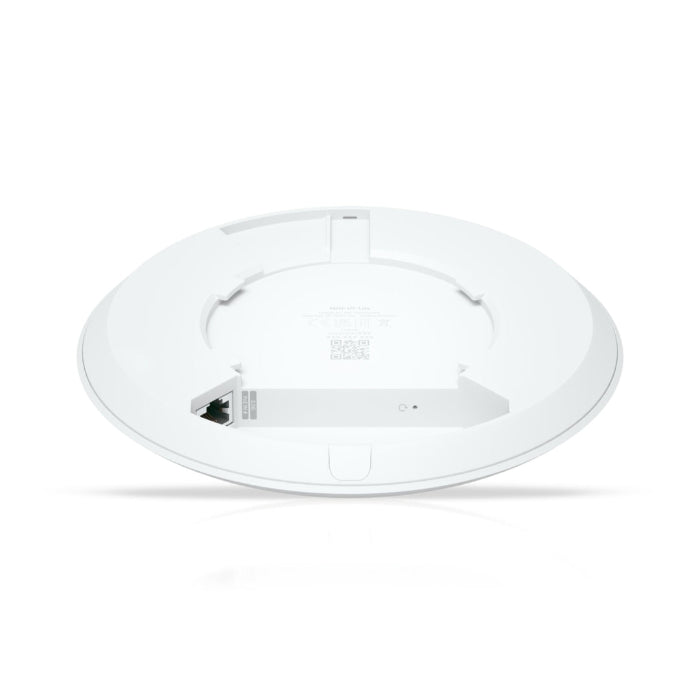

- Ethernet Ports: 1 × 10/100/1000/2500 Mbps RJ45
- Hardware Button: Reset
- Maximum Power Consumption: 13W

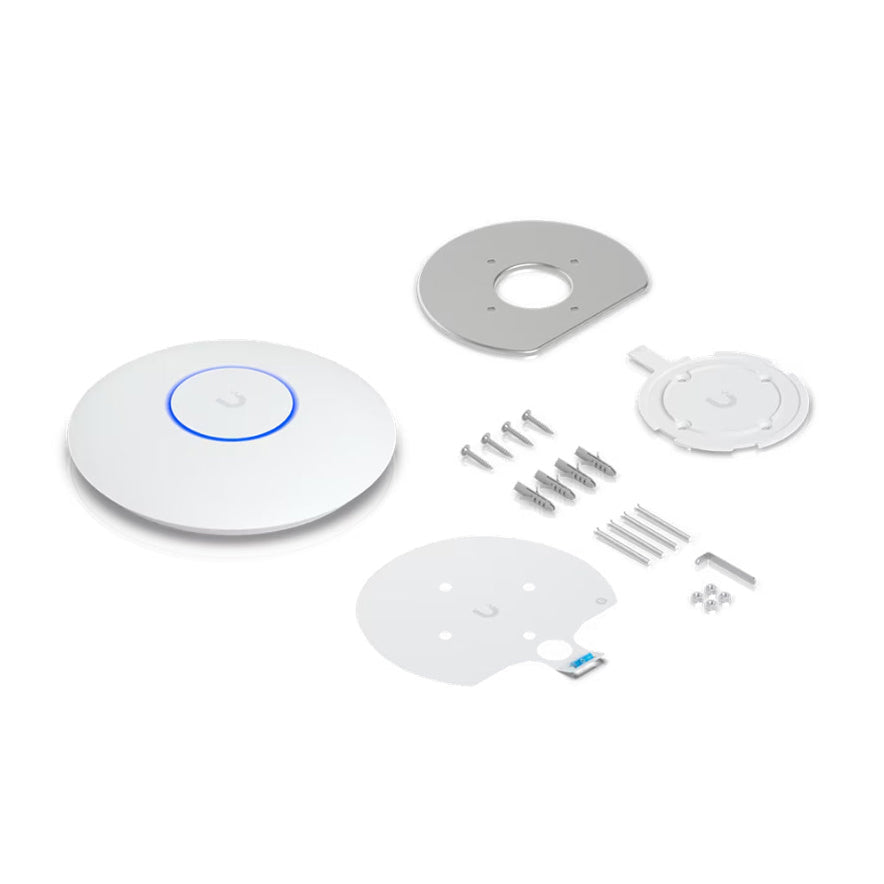

- Mounting: Ceiling or Wall Mount
- Operating System: UniFi
- Operating Temperature: -30°C to 40°C
- PoE Input: 802.3af PoE or Passive PoE (Not Included)
- PoE Output: None
- Power Input: 802.3af PoE or Passive PoE (Not Included)
- Supported Voltage Range: 42.5V to 57V
- Serial Interface: None
- SIM Slots: None
- USB Ports: None
- Dimensions: Ø171.5 × 33 mm
- Weight: 313 g
Note: PoE injector not included.
We recommend 48V PoE Adapter
The Dedicated 3 pin to Clover Cable power chord can be used with the PoE Adapter.
Download the datasheet here: Datasheet Download
