Description

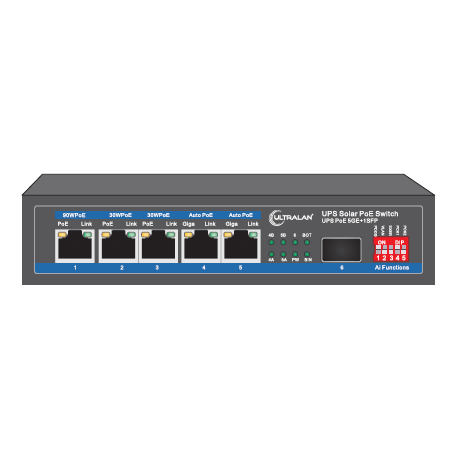

The SG05P+1SFP-65WS is an unmanaged 5 Port 10/100/1000M PoE+1SFP Solar & Battery powered POE switch integrating solar power generation, intelligent POE power supply and full-automatic charge and discharge control. It is a great solution for reliably powering both 802.3af/at and passive POE devices in remote areas where there is either no grid power source (off grid) or the grid power source is unreliable.
Product Function
- It supports full-automatic charging and discharging function, with a maximum charging current of 5A
- The advanced PWM intelligent charging system greatly improves the efficiency of photovoltaic power generation
- It supports two battery types: lead-acid battery and lithium battery. There are 6 built-in battery specifications, and the maximum capacity is 50AH
- Support 12V / 24V (maximum 400W) solar panel input
- Using independent intelligent PSE power supply chip
- Port 1 support 802.3af/at POE+ 60W
- Port 2-3 support 802.3af/at
- Port 4-5 support 802.3af/at & Passive POE (auto detect)
- Support POE power supply output with total power up to 65W
- Adopt Realtek's latest intelligent network CPU
