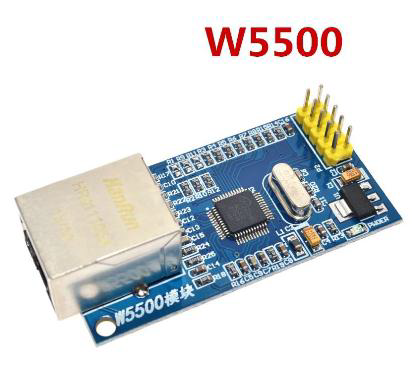

W5500 Ethernet network module hardware TCP / IP 51 / STM32 microcontroller program

Specifications

• Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
• Supports 8 independent sockets simultaneously
• Supports Power down mode
• Supports Wake on LAN over UDP
• Supports High Speed Serial Peripheral Interfac(SPI MODE 0, 3)
• Material: PC + metal
• Internal 32Kbytes Memory for TX/RX Buffers
• 10BaseT/100BaseTX Ethernet PHY embedded
• Supports Auto Negotiation (Full and half duplex, 10 and 100-based )
• Not supports IP Fragmentation
• 3.3V operation with 5V I/O signal tolerance
• LED outputs (Full/Half duplex, Link, Speed, Active)
• 48 Pin LQFP Lead-Free Package (7x7mm, 0.5mm pitch)
• Chip type: W5500
• Supports both 3.3V & 5V.
• 10BaseT/100BaseTX Ethernet PHY embedded
• Supports automatic response (full duplex / half duplex mode)
• Supports 8 independent sockets simultaneously
• Internal 32Kbytes Memory for Tx/Rx Buffers
• Power off mode: support
• Network wake: support
• SPI interface (SPI MODE 0, 3),convenient connection with MCU
• Size: 55mm x 28mm
• Color: Blue
• Package Contents: 1 x SPI to Ethernet/TCP/IP W5500 Module
