Description

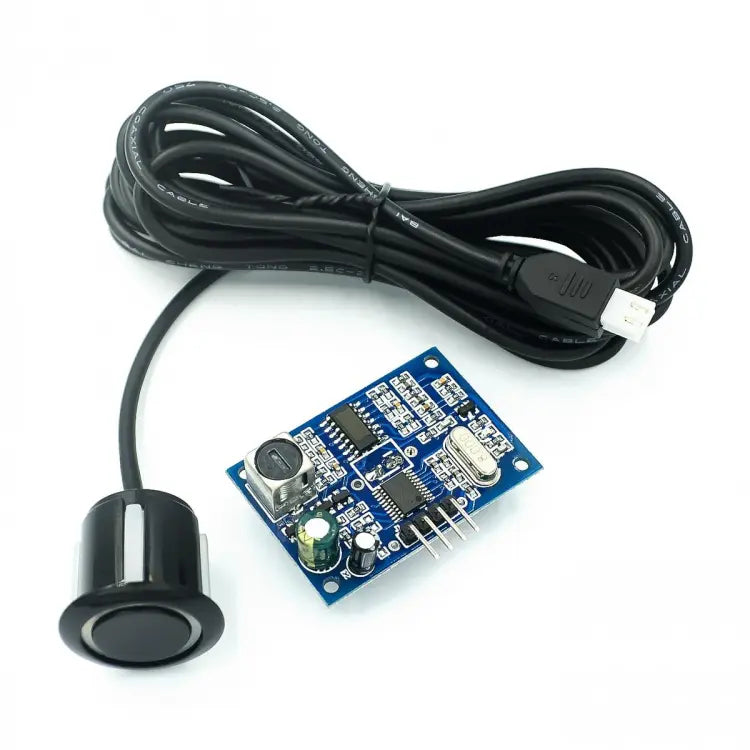

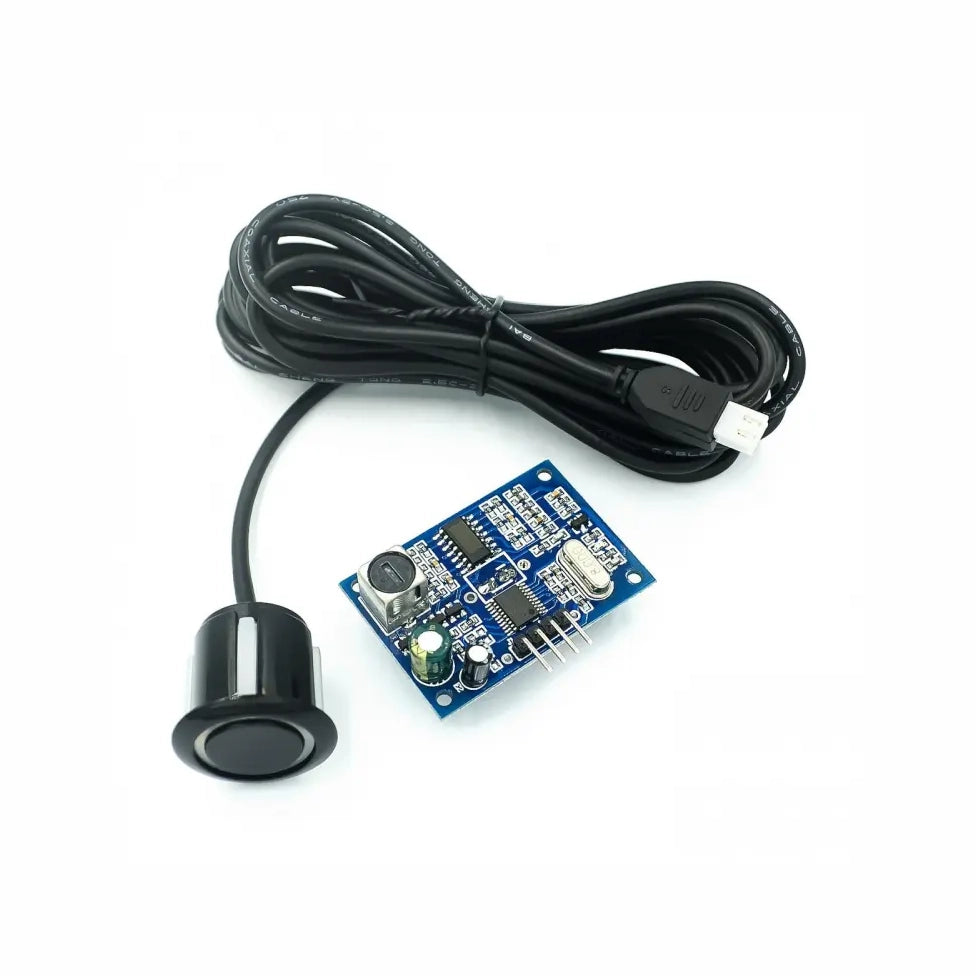

Waterproof Ultrasonic Module JSN-SR04T
Electrical properties
- Electrical parameters: JSN-SR04T
- Operating voltage: DC 5V
- Quiescent current: 5mA
- Total current work: 30mA
- Acoustic emission frequency: 40khz
- Farthest distance: 4.5m
- Blind: 25cm
- Wiring: + 5V (positive power supply)
- Trig (control side) RX
- Echo (the receiver) TX
- GND (negative)
- Resolution: about 0.5cm
- Angle: less than 50 degrees
- Working temperature: -10 ~ 70 Celsuis
- Storage temperature: -20 ~ 80 Celsuis
Product Feature
- Small size, easy to use
- Low voltage, low power consumption
- High accuracy
- Strong anti-jamming
- Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions
Application
- Horizontal distance;
- Obstacle avoidance, automatic control;
- The object approaches, there is a perceived
- Traffic control;
- Security, industrial control;
- Artificial intelligence, and research
