Description

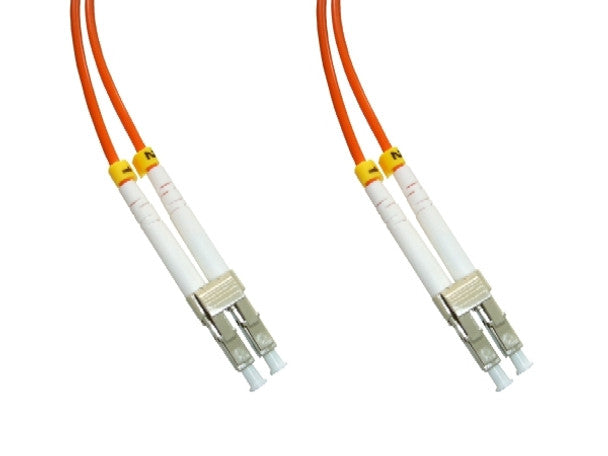

Multimode 50/125 um core, duplex LC/PC to LC/PC fiber optic patch cable, good for 850nm and 1310nm multimode connections. The 50/125 um core is optimized for Gigabit applications using 850nm wavelength.
Specifications:
- typical insertion loss: 0.35 dB
- return loss > 25 dB
- fiber jacket 1.8mm, orange color, zip-cord
-
operating temperature: -40 to +75 Celsius degrees
- each cable assembly is manually tested and verified
- each cable assembly is individually sealed and labelled
- label mentions measured loss on patch cord
