Description

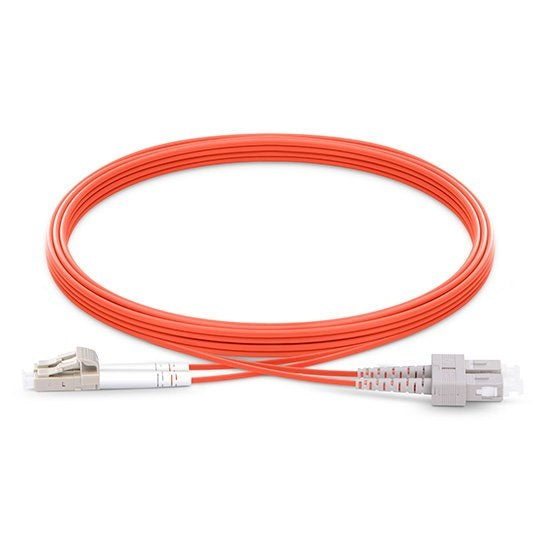

This 2-meter multimode duplex patch cord features SC/UPC to LC/UPC connectors with 50/125µm fiber, designed for efficient, high-speed data transmission. Ideal for short-range networking in LANs, data centers, and enterprise environments requiring reliable multimode connectivity
Specifications
| Connector A | LC UPC Duplex |
| Connector B | SC UPC Duplex |
| Fiber Count | 2 Fibers |
| Fiber Grade | Bend Insensitive |
| Fiber Mode | OM4 50/125μm |
| Wavelength | 850/1300nm |
| Polarity | A (Tx) to B (Rx) |
| Cable Type | Tight Buffered |
| Cable Outside Diameter (OD) | 2.0mm |
| Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times |
| Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB |
| Attenuation at 850 nm | 3.0dB/km |
| Attenuation at 1300 nm | 1.0dB/km |
| Operating Temperature | -20 to 70°C (-4 to 158℉) |
| Storage Temperature | -40 to 80°C (-40 to 176℉) |
