Description

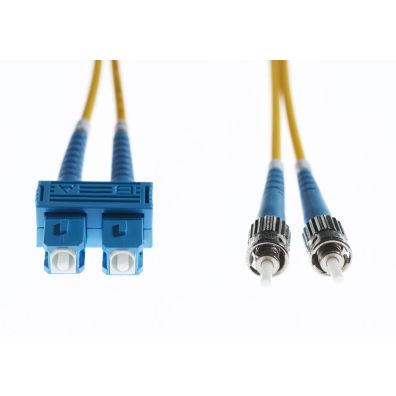

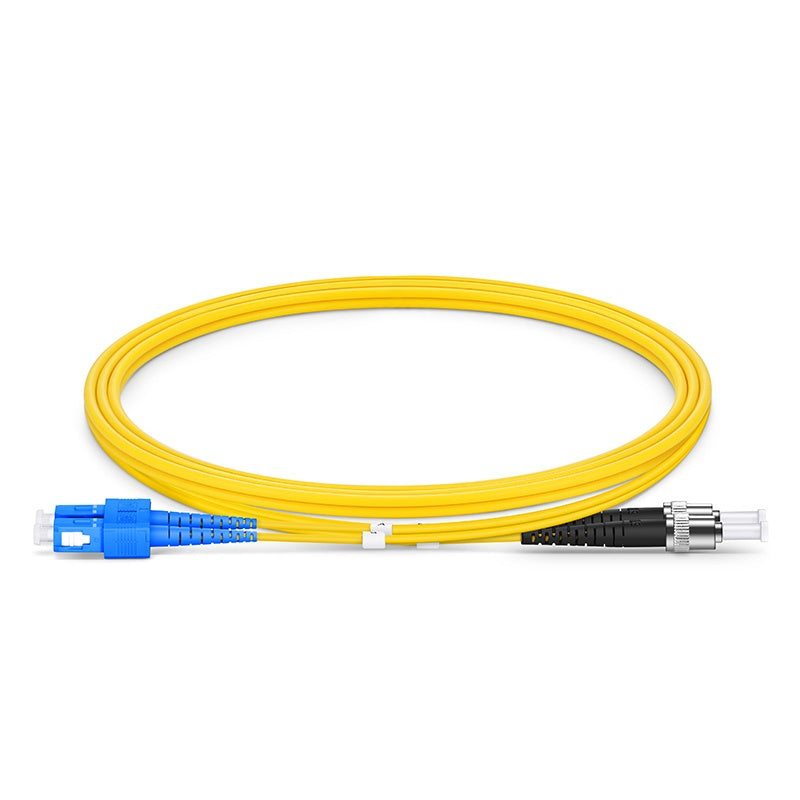

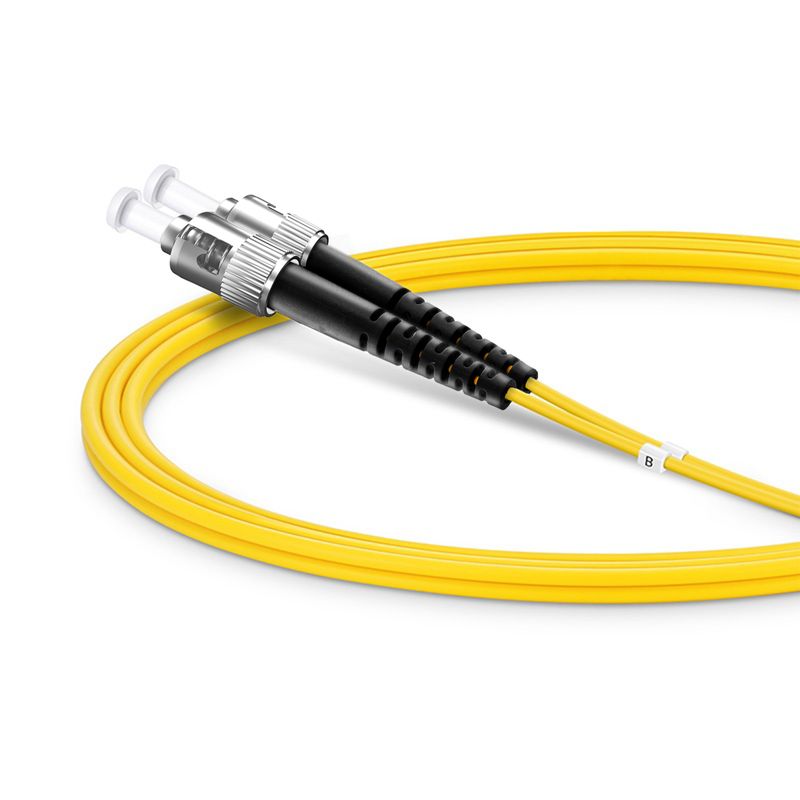

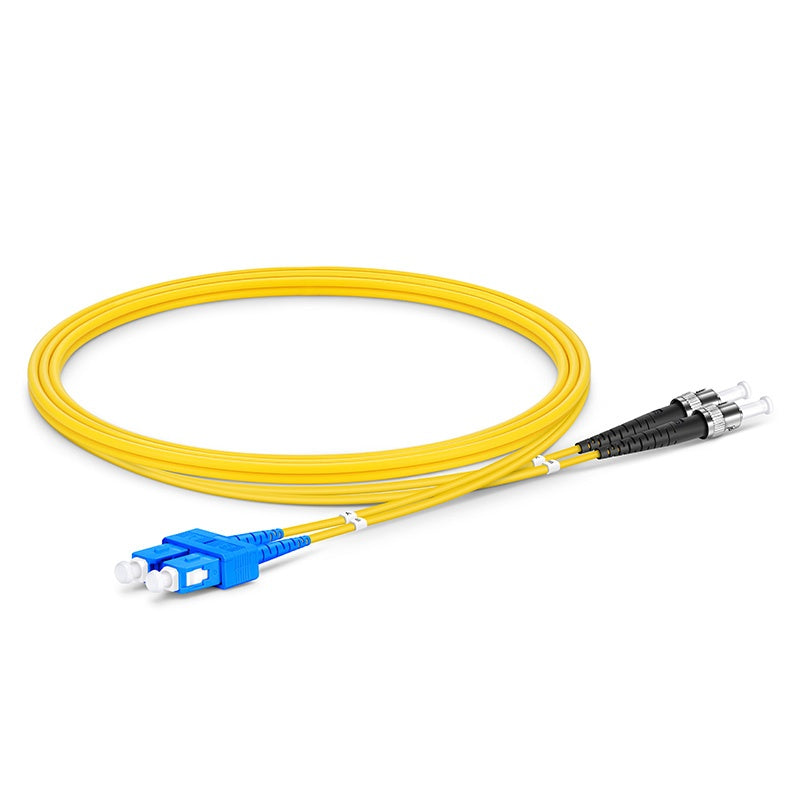

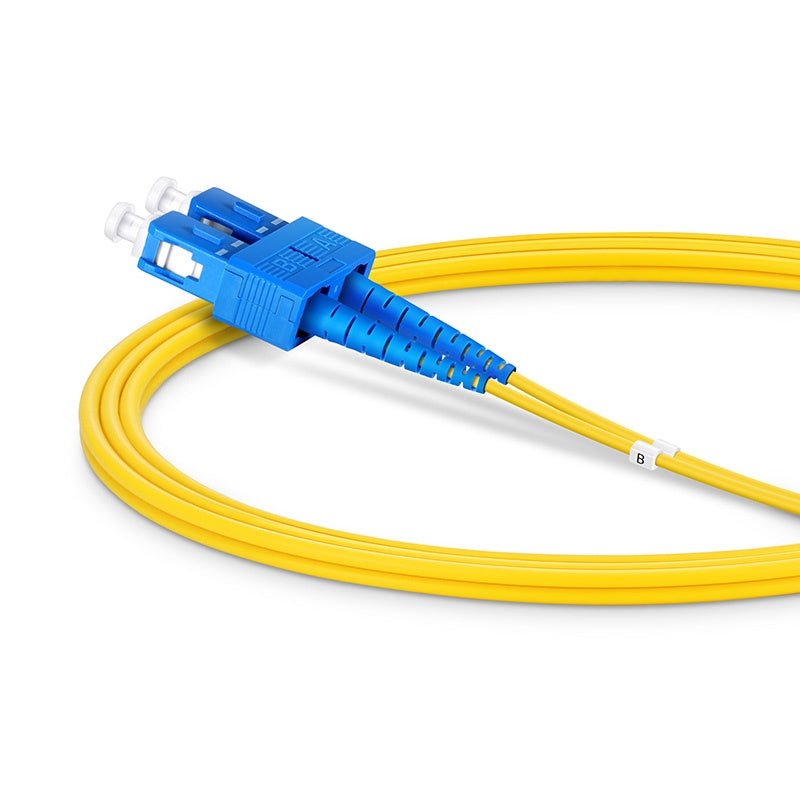

This 1-meter single mode fiber optic patch lead is engineered for precision and reliability in high-speed, long-distance network applications. Featuring ST to SC connectors, it ensures minimal signal loss and stable performance in demanding environments. Ideal for telecom, backbone infrastructure, and enterprise networks, the WEBB ST-SC patch lead delivers consistent optical transmission with durable construction and easy installation.
Specifications
| Connector A | SC UPC Duplex |
| Connector B | ST UPC Duplex |
| Fiber Count | 2 Fibers |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm |
| Wavelength |
1310/1550nm |
| Polarity | A (Tx) to B (Rx) |
| Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Operating Temperature | -20 to 70°C (-4 to 158℉) |
| Storage Temperature | -40 to 80°C (-40 to 176℉) |
