Description

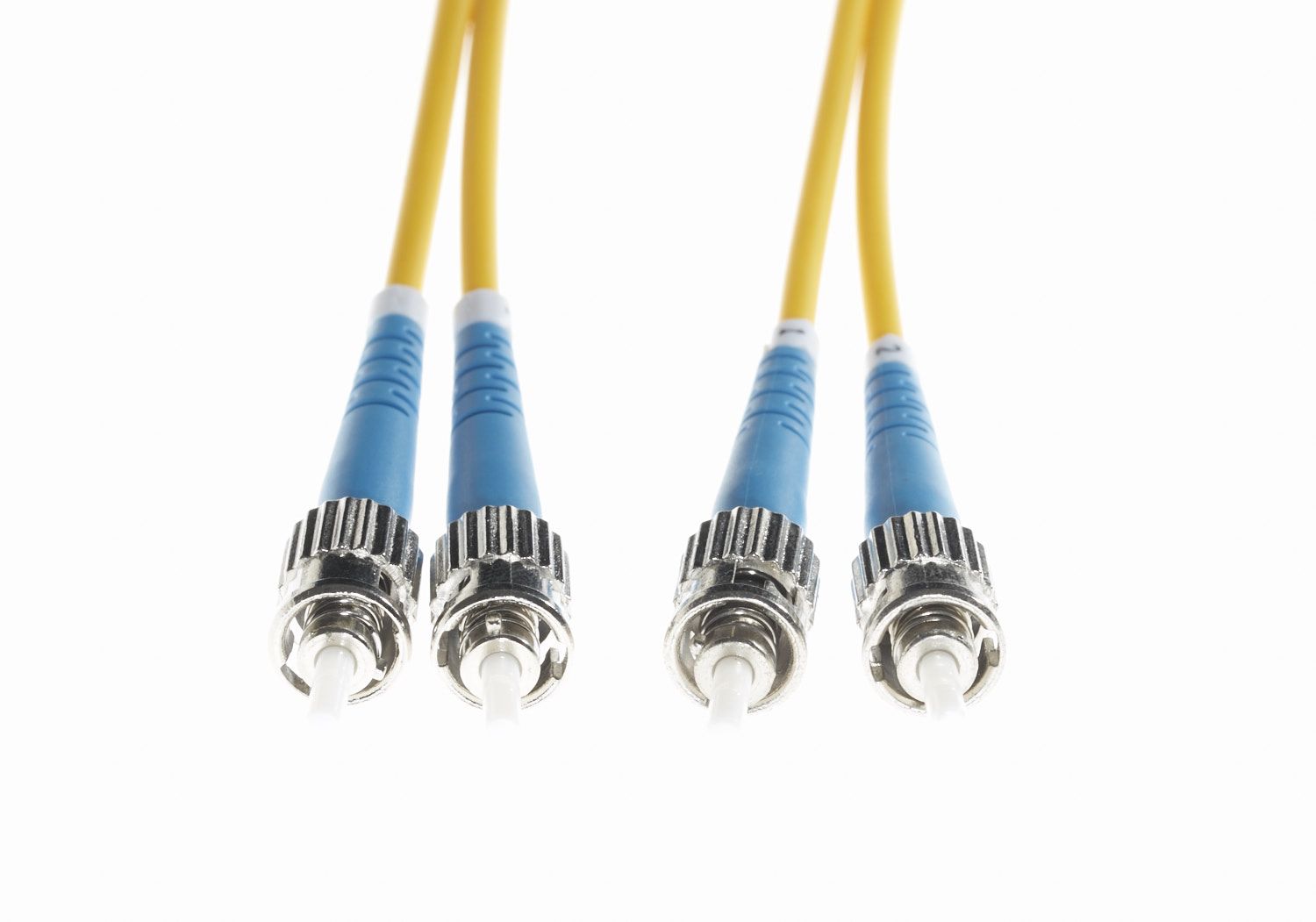

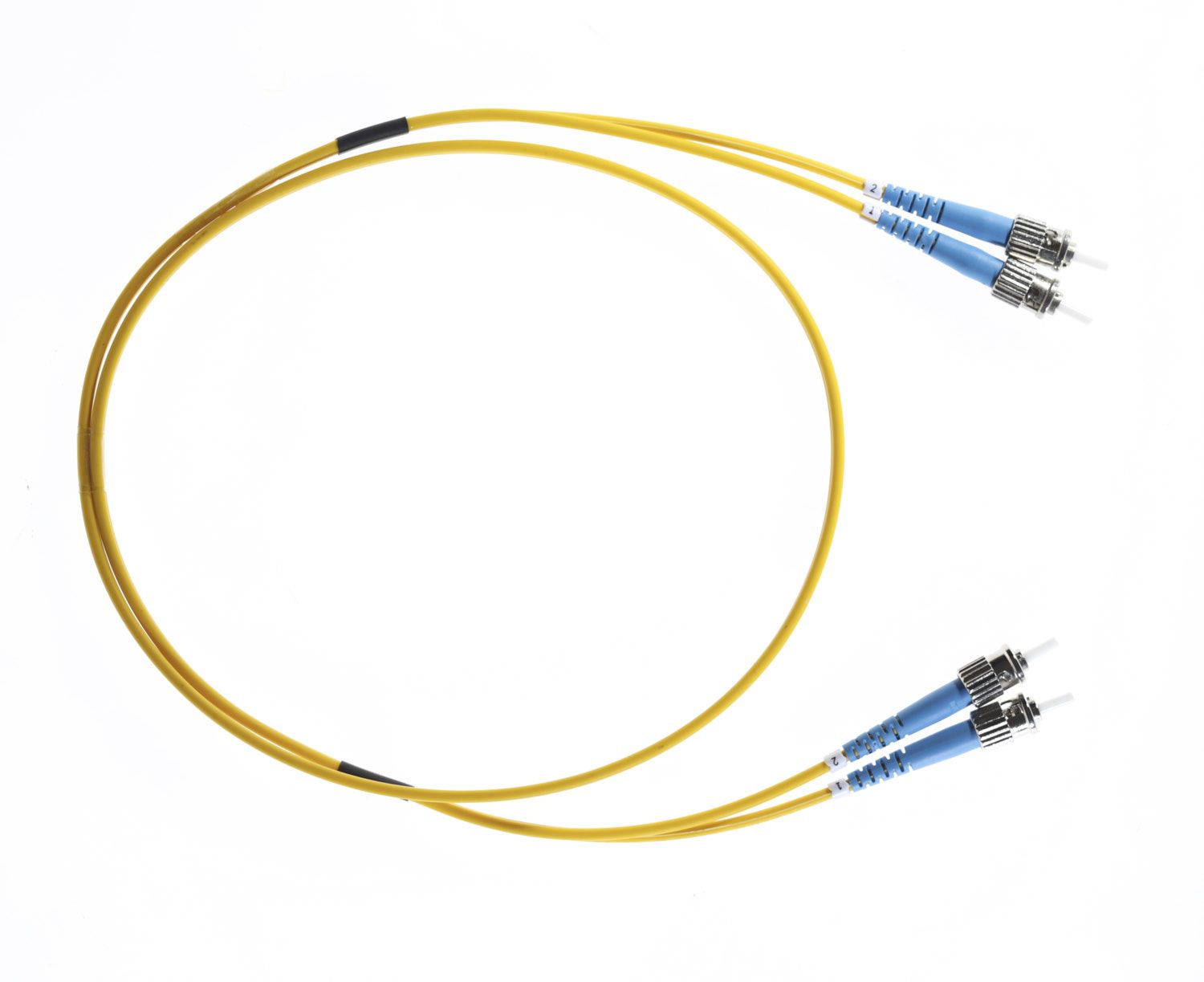

This 2-meter single mode fiber optic patch lead with ST to ST connectors is engineered for precision and low-loss signal transmission over long distances. Featuring a durable jacket and high-quality ceramic ferrules, it ensures stable and reliable performance in demanding environments. Ideal for telecommunications, fiber backbone installations, and high-speed networking applications, this patch lead is a trusted choice for both professional and industrial use.
Specifications
| Connector A | ST UPC Duplex |
| Connector B | ST UPC Duplex |
| Fiber Count | 2 Fibers |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm |
| Wavelength | 1310/1550nm |
| Polarity | A (Tx) to B (Rx) |
| Cable Type | Tight Buffered |
| Cable Outside Diameter (OD) | 2.0mm |
| Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times |
| Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
