Description

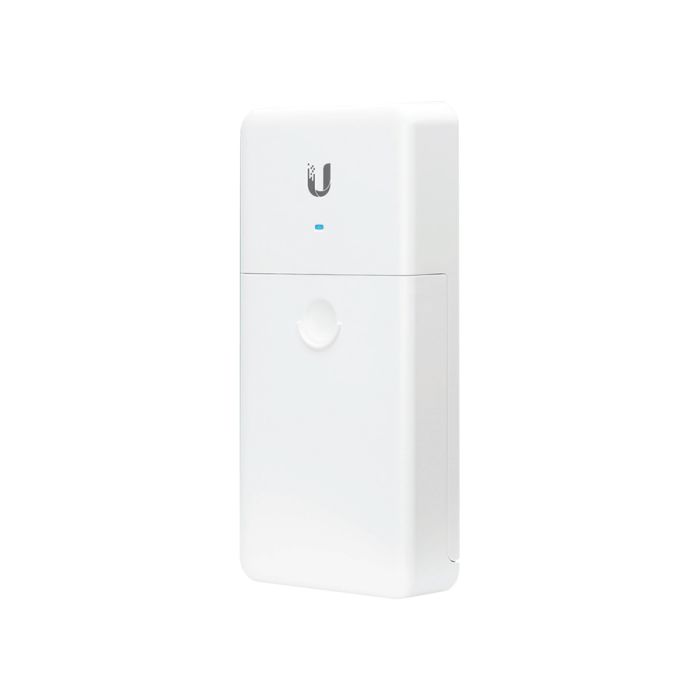

The UBIQUITI NanoSwitch is an outdoor 4-port Gigabit switch for distributing a network connection and 24 V passive PoE power to compatible devices. One port receives power and data, while the other three ports can connect outdoor radios or other supported passive-PoE equipment.
It is a practical choice for pole or wall installations where several devices share one uplink. PoE output is always active and does not negotiate power, so every connected device must support 24 V passive PoE.
A power source is not included. The UBIQUITI 24 V 24 W Gigabit PoE Adapter can power the NanoSwitch when the switch and all connected devices stay within the adapter’s 24 W output; that adapter also needs the 3-pin clover power cable. If the installation needs the NanoSwitch’s full 30 W total output, use a suitable 24 V, 2-pair passive-PoE source rated for that load. For outdoor links, follow Ubiquiti’s guidance for shielded Category 5e or better cabling, grounding and surge protection.
Why you’ll love it
- One uplink, three powered outputs: Expands a single passive-PoE cable run to three compatible devices.

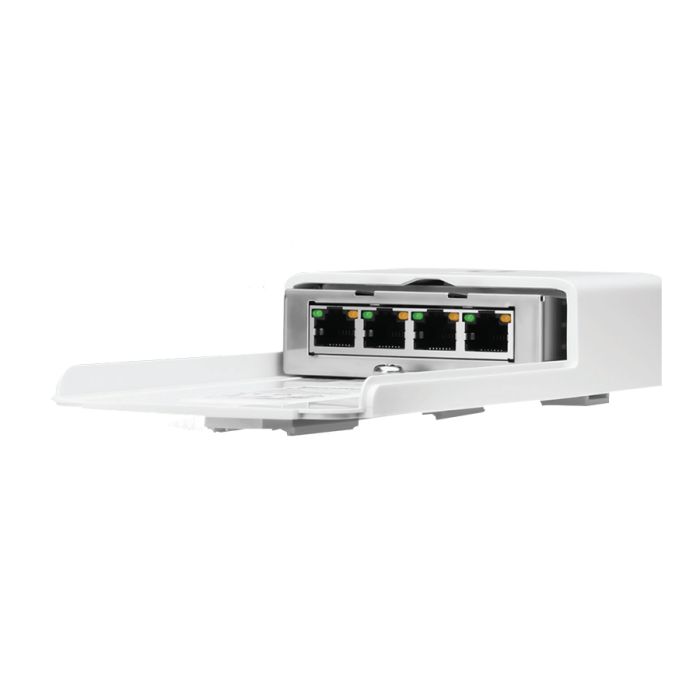

- Gigabit ports: All four RJ45 ports support Gigabit Ethernet.
- Outdoor installation: The weather-resistant enclosure suits protected outdoor network deployments.

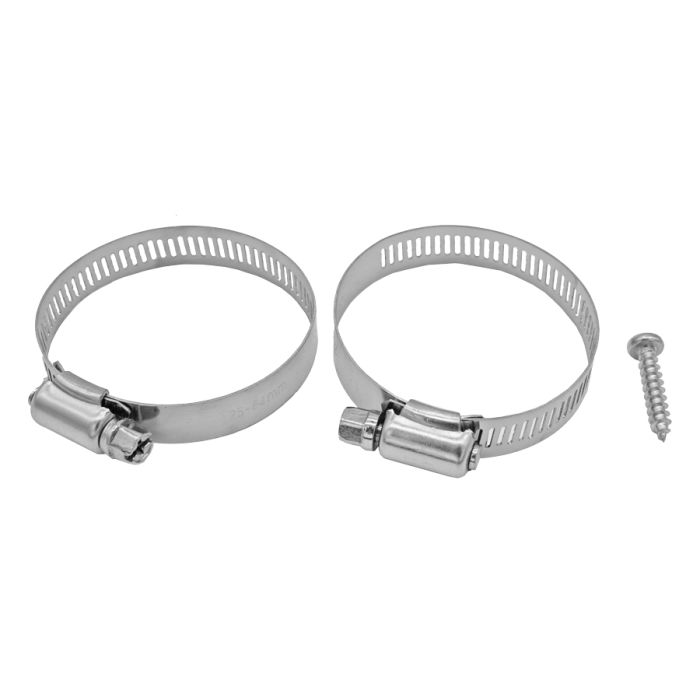

- Flexible mounting: Can be installed on a wall or pole using the appropriate hardware.
Technical specifications
- Model: N-SW

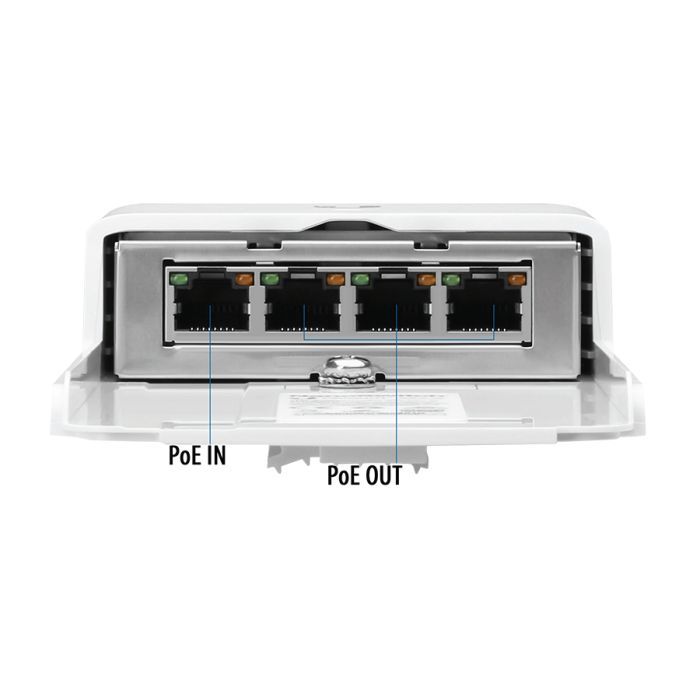

- Ports: 4 × Gigabit Ethernet RJ45; 1 × PoE input and 3 × PoE passthrough
- Power method: 24 V, 2-pair passive PoE input
- Supported voltage: 21.6–30 V DC
- PoE output: Up to 24 W per port; 30 W total across three output ports, subject to the connected power supply
- Power consumption: 1.5 W typical; 30 W maximum including PoE output
- Dimensions: 196.4 × 93.5 × 32.4 mm
- Operating temperature: -30 to 70 °C
- Power supply: Not included
